Removal And Installation: Installation
- CAUTION: Oil seals must be installed dry.
- Clean the seal register.
- Install the new oil seal.
Renew Part: Transfer case input shaft oil seal Quantity: 1 .

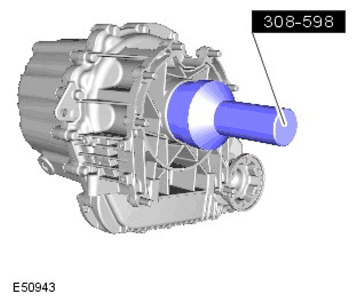

- Use the special tool.
Special Tool(s): 308-598
- Install the transfer case.
Refer to: TRANSFER CASE - V6 S/C 3.0L PETROL
Refer to: TRANSFER CASE - TDV6 3.0L DIESEL
- Connect the battery ground cable.
Refer to: SPECIFICATIONS
