Navigation Video Interface Module

The navigation video interface module converts the GVIF video output to LVDS video signal which is compatible with the TS.

A 5V signal output from the TS is connected to the video interface module. The signal voltage initiates a power up of the video interface module when the TS is active.

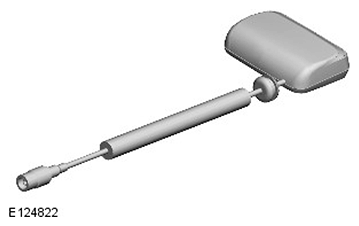

VICS Beacon Antenna

G11599271

The VICS beacon antenna is connected to the TS via a screened coaxial cable.

The VICS (vehicle information and communication system) beacon antenna receives infra red and RF (radio frequency) traffic data signals from road side transmitters. The antenna is connected to the navigation computer which incorporates a VICS (vehicle information and communication system) antenna amplifier.

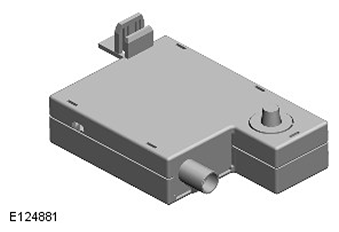

VICS Antenna Amplifier

G11599268

The VICS antenna amplifier is connected to the TS unit.
