JAPANESE Navigation System: Notes
The Japanese satellite navigation system uses a separate navigation computer module with map data supported by an DVD disc. Additional components are: a navigation computer module and a navigation video interface module.

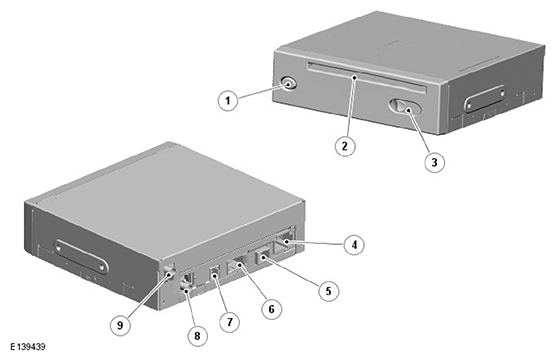

Navigation Computer Module
| ITEM | DESCRIPTION |
|---|---|
| 1 | DVD eject switch |
| 2 | DVD loading slot |
| 3 | DVD eject lock |
| 4 | Power and ground connections |
| 5 | GVIF video output connector |
| 6 | MOST connector |
| 7 | VICS beacon antenna connector |
| 8 | GPS antenna connector |
| 9 | VICS FM antenna connector |

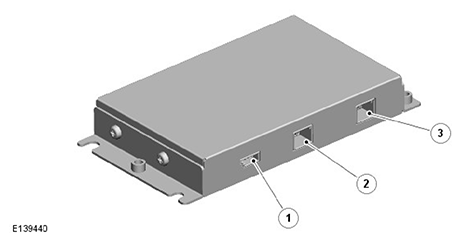

Navigation Video Interface Module
| ITEM | DESCRIPTION |
|---|---|
| 1 | GVIF video input from navigation module connector |
| 2 | LVDS video output to TS connector |
| 3 | Power, ground and 5V signal voltage from TS connector |
