Removal And Installation: Removal

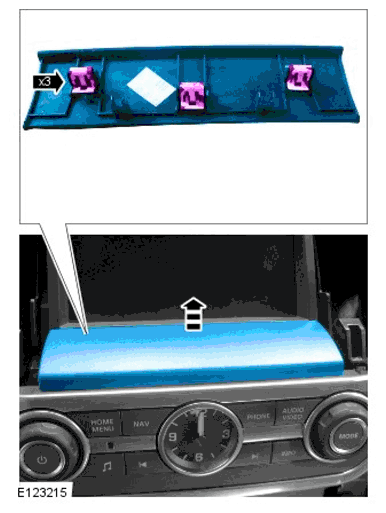

  1. G11600854

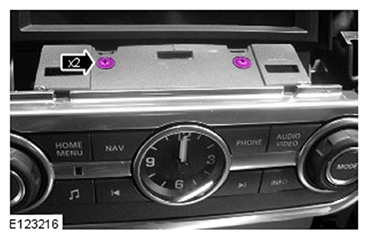

  2. G11598694

    Torque Specification: 2.5 Nm

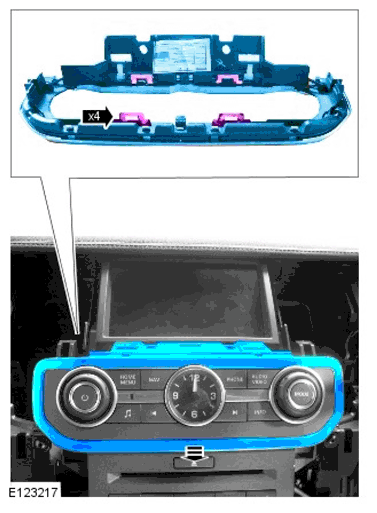

  3. G11600855

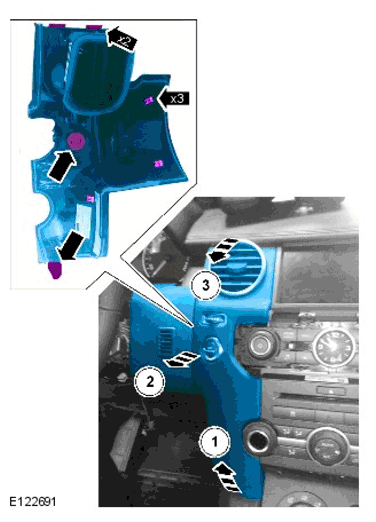

  4. NOTE: LHD illustration shown, RHD is similar.
    G11600833

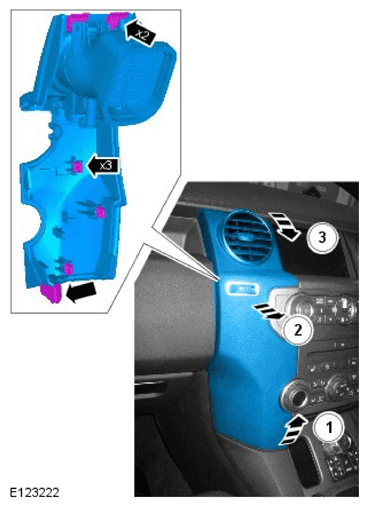

  5. G11601583

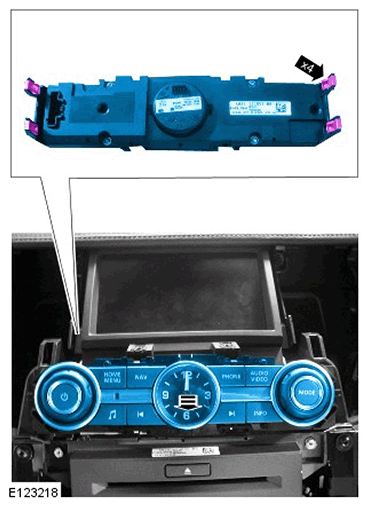

  6. G11598699

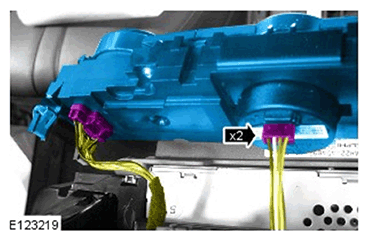

  7. G11598700

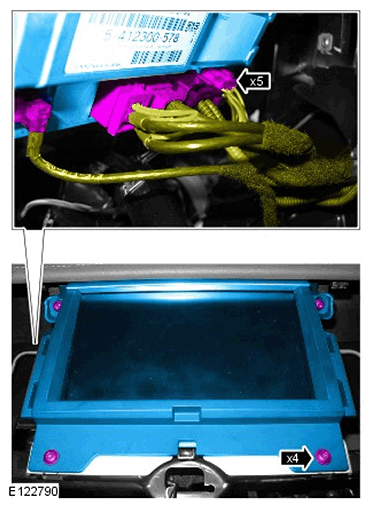

  8. G11599284

    Torque Specification: 2.5 Nm

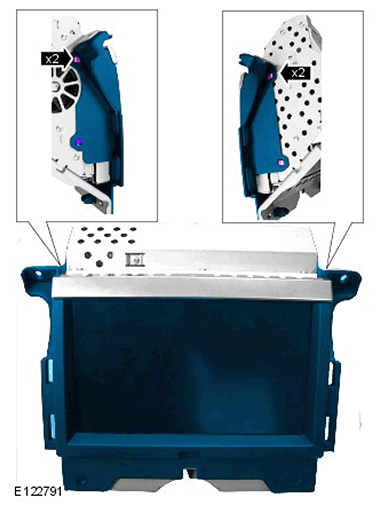

  9. NOTE: Do not disassemble further if the component is removed for access only.
    G11599285
