Component Locations - Sheet 1 Of 2: Notes

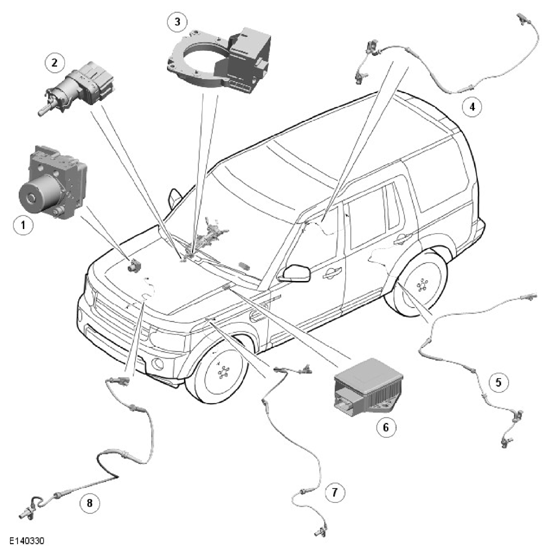

G11597352
ITEM DESCRIPTION
1 Hydraulic control unit with attached ABS (anti-lock brake system) module
2 Stoplamp switch
3 Steering angle sensor
4 RH (right-hand) rear wheel speed sensor
5 LH (left-hand) rear wheel speed sensor
6 Yaw rate and lateral acceleration sensor
7 LH front wheel speed sensor
8 RH front wheel speed sensor
