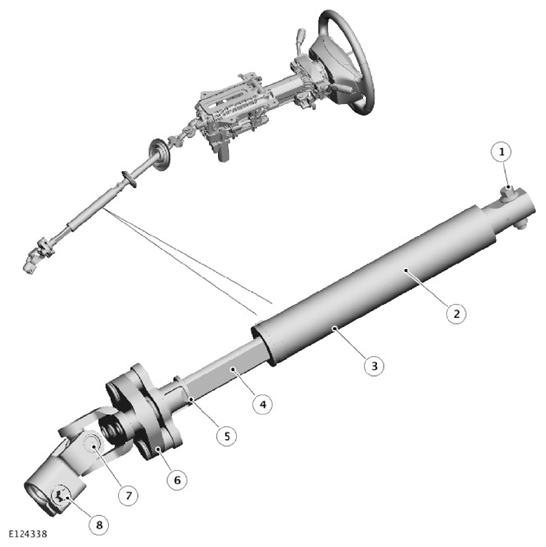

Lower Collapsible Shaft

The lower collapsible shaft is a handed component and the correct component must be fitted to ensure that the steering phase angle is maintained. The shaft is attached at its upper end to the intermediate shaft and at its lower end to the valve unit pinion on the steering gear. These attachment joints can only be fitted in one orientation to ensure the correct alignment of the steering wheel to the steering gear. The shaft comprises two female and male shafts which are a telescopic fit on each other. The male shaft can slide up to 77 mm (3.03 in) within the female shaft in the event of a frontal impact, to minimize the effect of frontal intrusion. The sliding fit also allows for dynamic displacement between the chassis and the body during severe off-road driving. A plastic spacer is fitted to the male shaft which is only used as an assembly aid during vehicle production and serves no function once the shaft is assembled to the vehicle.

The female shaft is a triangular section tube which is formed to a double 'D' hole at its upper end which mates with the intermediate shaft. An indentation pressed in the wall of the tube ensures the correct alignment between the intermediate shaft and the lower collapsible shaft. A captive nut, clinched to one side of a hole in the double 'D' section, allows for the fitment of a patchlock bolt to secure the intermediate shaft. Clamped around the end of the female shaft is a dust seal which prevents the ingress of dirt and moisture into the sliding joint, and a heat sleeve is also fitted to reflect radiant heat from the exhaust.

The male shaft is a triangular section tube which is staked at its lower end into a flange. A cage and curved 'spring plates' are fitted to its upper end, which slide in the female shaft. A pin is fitted into the side of the female tube, to secure the male tube in the bore. The lower end of the male shaft is fitted with a flexible coupling to absorb vibration and steering 'kick back', transmitted from the steering gear. A 'stabilizing pin' is fitted through the coupling to prevent coupling articulation (acting as a universal joint), while still allowing rotational flexing and plunge movement. The coupling is a rubber molding within which are nylon fibres wound around the attachment holes to transmit torque applied to the steering. The coupling is attached to a drive flange (which is part of the male shaft), and to the 'U' yoke which in turn is connected to the pinion yoke, by the universal joint assembly.
