Upper Column Assembly - Manual

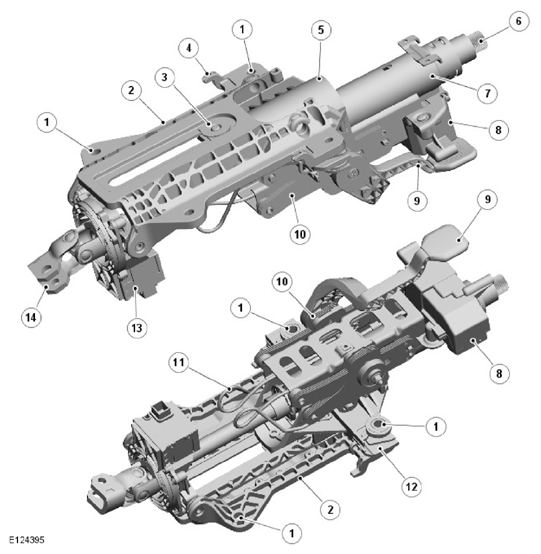

| ITEM | DESCRIPTION |
|---|---|
| 1 | Attachment holes |
| 2 | Roof bracket |
| 3 | Screw |
| 4 | Locating hook |
| 5 | 'U' bracket |
| 6 | Steering wheel splines |
| 7 | Main body |
| 8 | Electronic steering lock |
| 9 | Adjustment lever |
| 10 | Clamp plate assembly |
| 11 | Adjustment balance spring (2 off) |
| 12 | Shearing capsule (2 off) |
| 13 | Steering angle sensor |
| 14 | Swing yoke |
The steering column is attached to the in-vehicle crossbeam and secured with four, 8 mm thread forming, pan head Torx drive screws. The two forward attachment screws are fixed through the column mounting bracket, the two rearward mounting screws also pass through the shearing capsules. In the event of a high energy frontal impact, the shearing capsules remain fixed to the crossbeam, but the 'U' bracket (with the main body) disengages from the capsules, allowing the column to shorten axially (collapse), with the coiled straps absorbing energy to reduce occupant loading.
The column comprises a cast magnesium roof bracket which is attached to the in-vehicle crossbeam. Attached to the roof bracket is a pivot housing, a 'U' bracket, upper and lower shafts and a main body. The roof bracket has two hooks which locate in slots in the in-vehicle crossbeam. The hooks assist in supporting the weight of the column during removal or installation.
The pivot housing is attached to the forward end of the roof bracket with two pivot pins. The pivot housing allows for adjustment of the column rake and contains a bearing which supports the column lower shaft.
The 'U' bracket is attached to the roof bracket by a screw, bush and plastic washer assembly (third fixing) located in a slot in the top of the roof bracket. When the column is assembled into the vehicle, the shearing capsules, which are attached to the 'U' bracket, are clamped up against the roof bracket by the fixing screws, preventing movement of the 'U' bracket. The bolts also pass through rectangular section steel straps, which at one end, have coils that locate around a plastic bush (positioned on the shearing capsule). The straps are used to control the rate of column collapse, in the event of a high energy frontal impact.
The main body is positioned in the 'U' bracket via the lever bolt. The bolt is captive within the vertical slots in the 'U' bracket and the horizontal slots in the main body. The bolt also passes through the clamp plate assemblies (one on either side of the 'U' bracket). The body houses the middle and upper bearings through which the upper shaft is located. Two offset holes in the main body provide for the attachment of the electronic steering lock assembly.
The upper and lower shafts are located through the length of the column assembly. The upper shaft is supported in two bearings in the main body and the lower shaft is located in the upper shaft and supported in a bearing in the pivot housing. The lower shaft has a tubular section with external splines. These mate with the internal splines in the upper shaft. The purpose of the splines is to transmit rotational movement of the upper shaft to the lower shaft, but allowing the two components to telescope into each other in the event of a collision. The length of the splined sections allow for 120 mm (4.72 in) of linear movement. The lower shaft is fitted with a universal joint spider to which a swivel yoke is attached. The swivel yoke attaches to the intermediate shaft of the steering column on the interior side of the bulkhead using a special cam bolt and self-locking nut.
A steering angle sensor is attached to the pivot housing of the column and its center gear is rotated by a drive collar which is attached to the lower shaft and rotates with movement of the steering wheel. The sensor transmits steering angle data on the high speed CAN bus which is used by various systems on the vehicle. The steering angle sensor is designed to become detached from the column in the event of a frontal impact. Care must be taken when handling the column assembly to prevent accidental damage to the sensor.
The upper steering column assembly houses the electronic column lock mechanism and control module.
The steering column is adjustable for reach and rake. The column can be adjusted for 40 mm (1.57 in) of reach adjustment and 6° of rake adjustment. The adjustment mechanism comprises an adjustment lever, a cam plate, a lever bolt and nut, two brake pads and two clamp plate assemblies.
A plastic adjustment lever is located on the underside of the column assembly and is attached to a cam plate. When the lever is pulled downwards, the cam plate rotates and releases tension in the lever bolt. The lever bolt also passes through two sets of clamp plate assemblies. When the lever is moved upwards, the cam plate rotates applying tension to the lever bolt, which applies pressure to the brake pads which in turn apply pressure to the clamp plate assemblies (which lock the column in the desired position). The lever bolt is retained by a self-locking lever nut, which abuts a thrust bearing.
The pivot housing is attached to the roof bracket with two pivot pins. When the rake adjustment is operated, the pivot housing rotates around the pivot pins to allow for the up and down adjustment, but maintains a positive location to the roof bracket. An adjustment spring is fitted between the 'U' bracket and the main body, to counteract the weight of the main body, upper shaft, steering wheel and airbag, preventing the steering wheel from dropping rapidly when the adjustment lever is released.
In the event of a high energy frontal impact, the upper column assembly is designed to axially collapse reducing impact injury to the driver. A number of components interact together to ensure that the collapse of the column is in a controlled manner. The following components control the column collapse:
- Pressure washer and bush (third fixing)
- Shearing capsules
- Straps
- Upper and lower shaft (splined) connection
The shearing capsules have a central hole through which the rearward attachment bolts pass through into the roof bracket. The capsules are located in the 'U' bracket by tapered slots, which have small cut-outs in the inside faces. The shearing capsules have a number of small holes which align with the cut-outs in the 'U' bracket. When the capsules are installed, plastic is injected into the holes and cut-outs. This plastic retention of the capsules provides the initial controlled break-out force for the column in the event of a collision. After 10 mm of displacement, the 'U' bracket is no longer located by the shearing capsules. When handling the column, care should be taken that the shearing capsules are not impacted or dislodged.
The tension in the 'Third Fixing' screw, applies a clamp load to the roof bracket (via the bush and compression washers). In the event of a collision, this clamp load (supplementary to the shearing capsules) must be overcome before the column can collapse. When this load has been exceeded (and the fixing has been displaced 20 mm (0.79 in)) it slides easily within the roof bracket slot, providing directional control to the column, as it collapses. Under no circumstances should the screw torque be adjusted.
The straps are rectangular section steel, which at one end, have coils that locate around a plastic bush (positioned on the shearing capsule). The other end is formed into a hook which locates within a slot in the 'U' bracket. When a collision has occurred, and the 'U' bracket has been displaced from the shearing capsules by 8 mm (0.3 in), the straps begin to un-roll due to the displacement of the 'U' bracket. The straps provide the main element for energy absorption as the column collapses. The cross section of the straps change after approximately 40 mm (1.6 in) of extension, changing the amount of energy that they absorb.
