Adaptive Speed Control Module (G2268885): Removal

WARNING: The customer must be informed that in the first 2 hours of driving, the Cruise Control Module (CCM) will continue to self calibrate. CCM may not be available and full system performance may not be achieved.

CAUTION:

Make sure that there is no modification on the CCM before its installation to the vehicle.
The CCM assembly must not be disassembled or pre-adjusted before installation.
If accidentally dropped to the ground, the CCM must not be installed.
The CCM must be handled carefully as damage may cause water ingress into the module.
The CCM is equipped with a pressure equalization membrane located under the type label. Damage can affect the water tightness of the module.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
Remove the front bumper cover.
Refer to: FRONT BUMPER - VEHICLES WITH: CORE SPECIFICATION

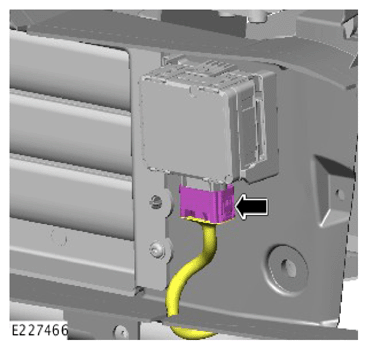

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Disconnect the CCM electrical connector.
- Reposition the wiring harness away from the CCM .

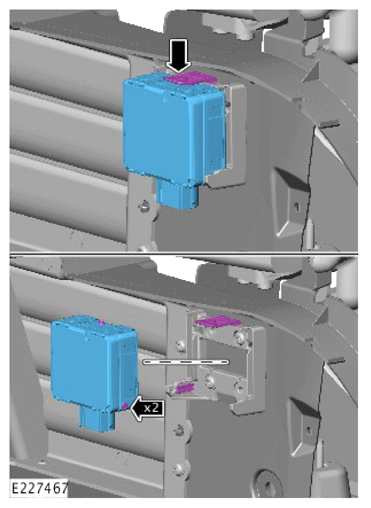

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Release the 3 clips.
- Remove the CCM from the bracket.
