Powertrain Control Module (Pcm) Update (N808)

POWERTRAIN CONTROL MODULE (PCM) UPDATE

SERVICE CAMPAIGN BULLETIN

DESCRIPTION OF ISSUE AND THE EFFECT ON VEHICLE OPERATION

JLR has taken the decision to recall affected vehicles.

A potential concern has been identified on specific vehicles within the above vehicle range.

Certain 2017 to 2019 Land Rover vehicles equipped with TDV6 3.0L Diesel engines and Ingenium I4 2.0L Diesel engines, when connected to a diagnostic scan tool during the California SMOG test, the Powertrain Control Module (PCM) incorrectly reports the monitor readiness status as 'not supported'.

ACTION TO BE TAKEN

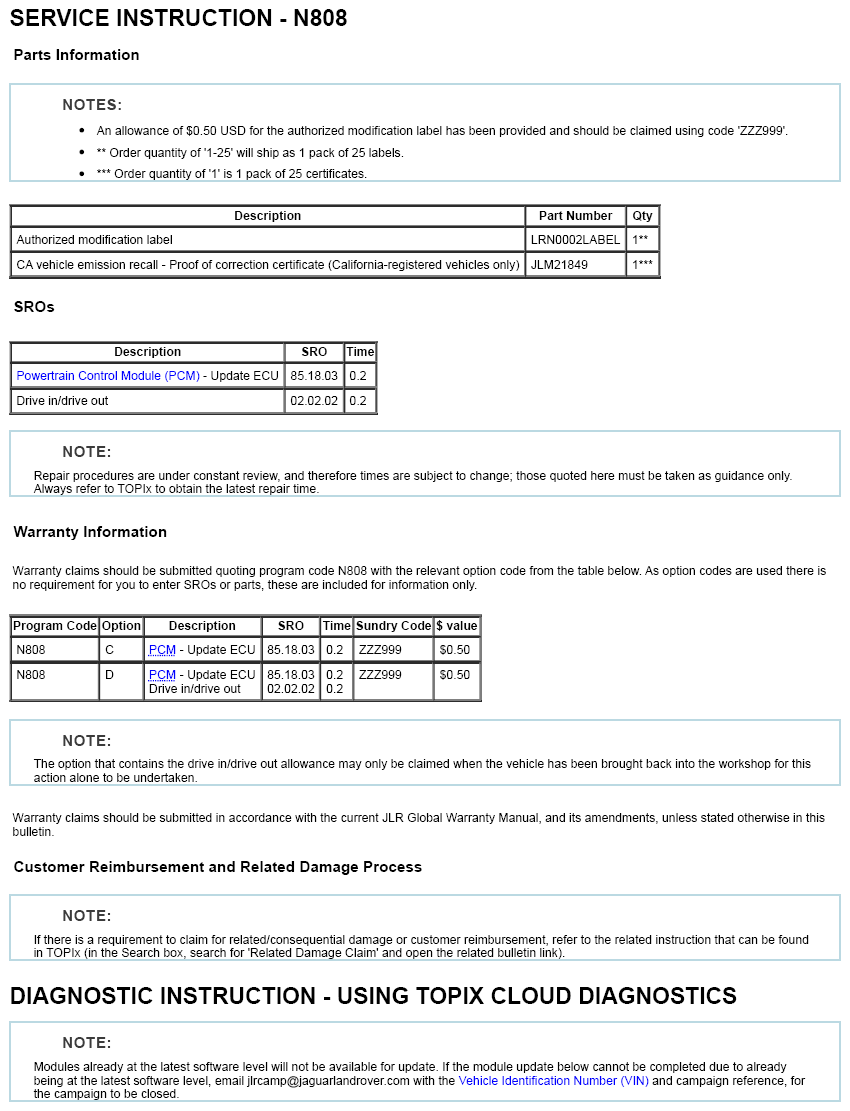

JLR has taken the decision to recall affected vehicles to repair the vehicle.

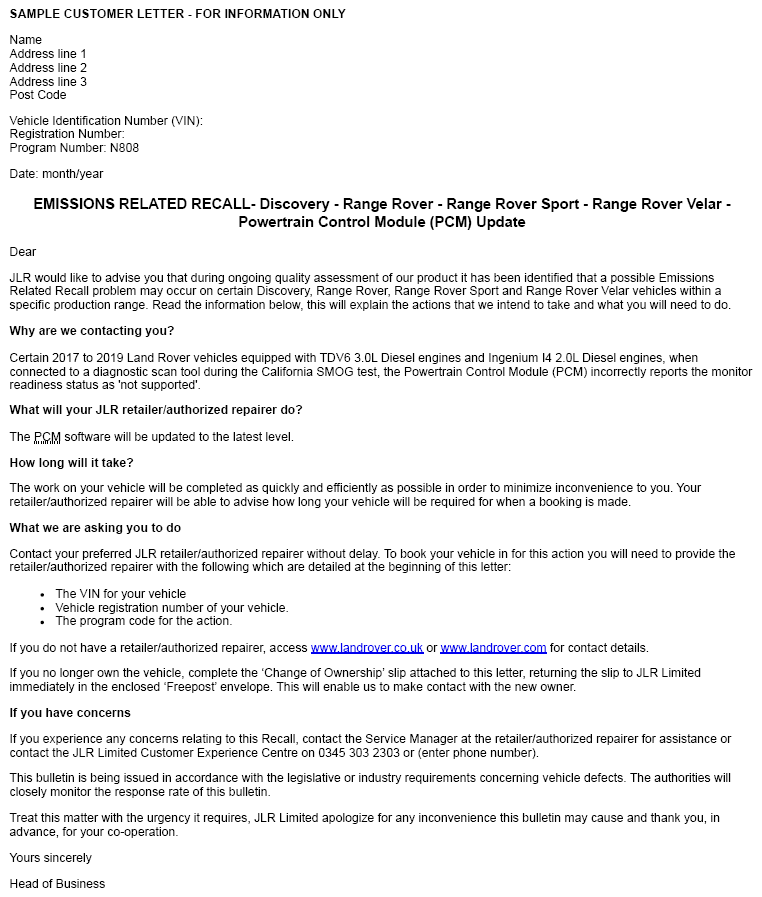

Following procedures appropriate to your market and as required by local legislation, owners of affected vehicles should be contacted requesting that the owner contact their nearest retailer/authorized repairer as soon as possible to arrange for the repair to be completed. The National Sales Companies (NSCs), Importer, Regional Office or Government agency will contact the customers. If you have any questions about this process, please contact your NSC/Importer or Regional Office for more information.

Check the JLR Warranty Portal to make sure affected vehicles are correctly identified prior to starting this campaign. The Warranty Portal will be updated to reflect only those vehicles affected.

Retailers/authorized repairers are reminded that they must not sell vehicles identified as affected by this campaign until such time as the repair has been successfully completed.

An owner may indicate that a repair has already been completed for this concern, in which case the full cost of the repair should be reimbursed. Refer to the warranty section of this campaign for details of the Customer Reimbursement and Related Damage Process. At the time of confirming a booking for a vehicle repair, make sure you check the Warranty Portal to confirm if there are any other outstanding campaigns, to make sure the correct parts are available and adequate workshop time is allocated for repairs to be completed in one visit.

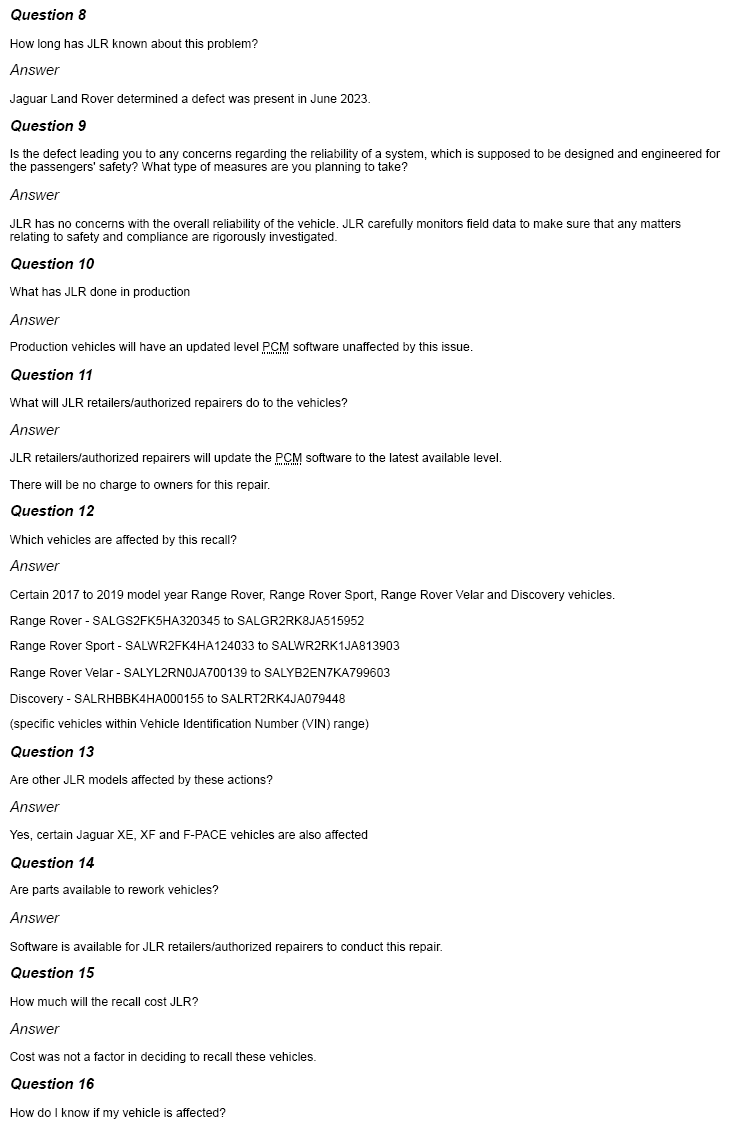

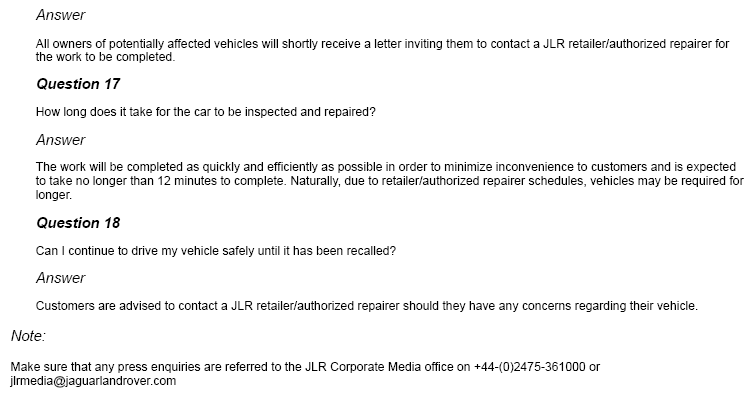

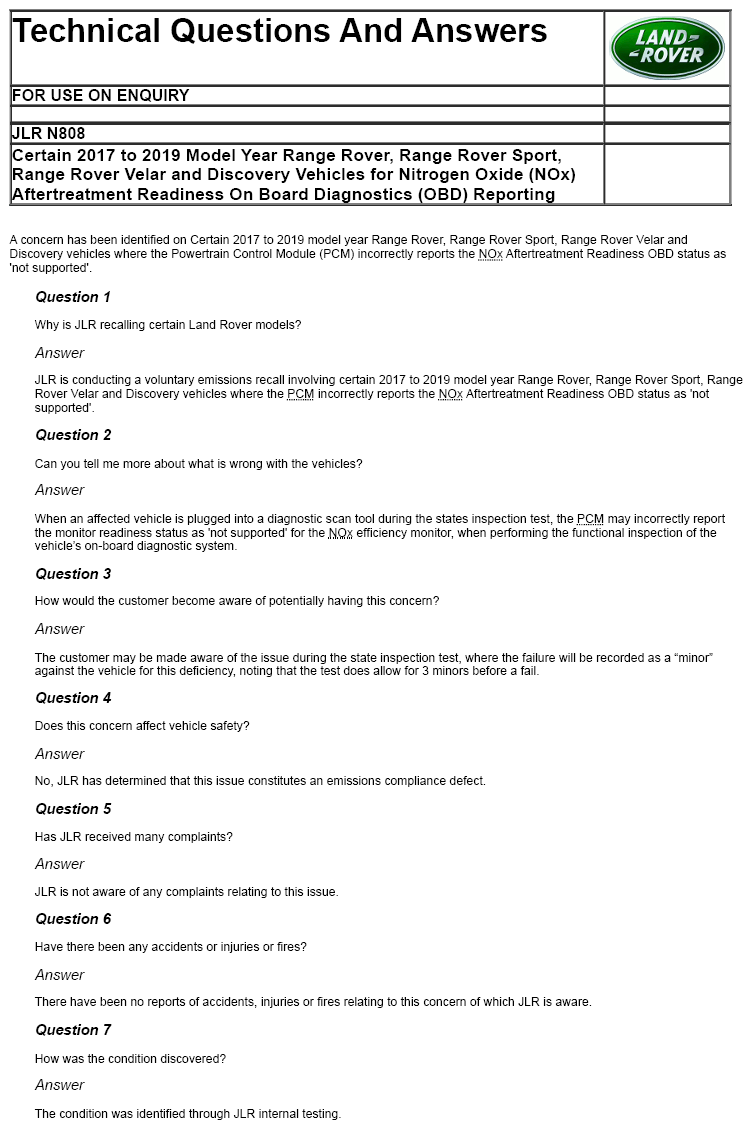

For information purposes, a Technical Question and Answer document is attached.

FOR THE ATTENTION OF NORTH AMERICAN TERRITORIES ONLY:

Visit the British Brands Sales Suite (BBSS) website for a list of affected vehicles at your retailer/authorized repairer. Unsold vehicles must be repaired prior to handover of the vehicle for retail sale.

Yours faithfully

Steve Oldham

Global Customer Care Quality Director
