Gear Shift Module Repair (G2735456): Installation

- Connect the electrical connector to the trigger assembly.
  Renew Part (Main Component): Gear Shift Decal - Kit Quantity: 1 .
- Install the trigger assembly.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

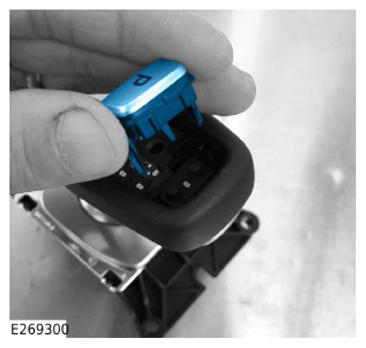

Install the Park (P) button.
Install the outer bezel.
Install and tighten the screw.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the adhesive backing strip.

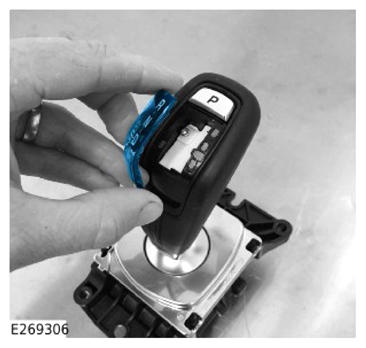

- Install the decal.
NOTE: SRO to be claimed separately.

Use the approved Jaguar Land Rover (JLR) diagnostic equipment to read and clear any Diagnostic Trouble Codes (DTC).

General Equipment: Jaguar Land Rover approved diagnostic equipment
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

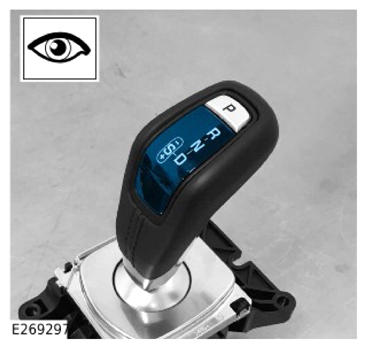

Make sure the decal is correctly installed.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Make sure the leather has not been damaged during this repair.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

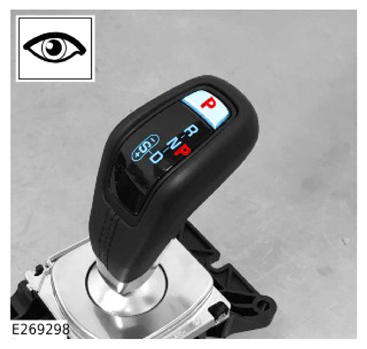

Make sure the decal and Park (P) button illuminate correctly.
- Check the operation of the trigger and the GSM functionality.
- Make sure all gear positions can be selected: Drive, Neutral, Reverse and Sport.
NOTE: SRO to be claimed separately.

Use the approved JLR diagnostic equipment to read any new DTC that may be present. Diagnose and repair any new DTC as required.

General Equipment: Jaguar Land Rover approved diagnostic equipment
