Pinpoint Test - Electrical: Notes

NOTE: Refer to the appropriate Wiring Diagrams , for schematic and connector information.

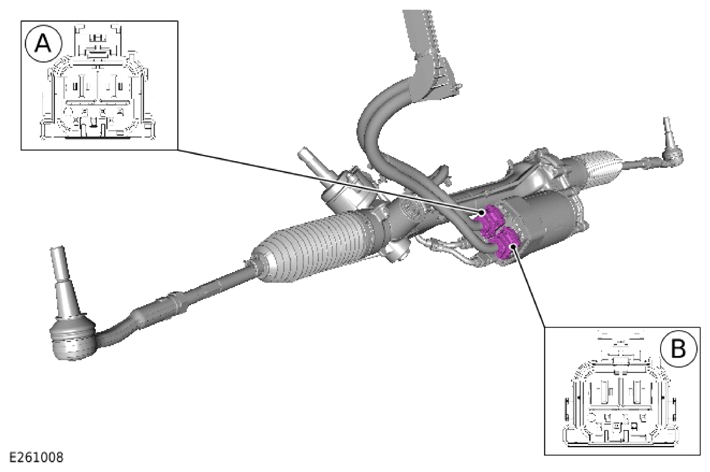

PSCM Connector location

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

ITEM	DESCRIPTION
A	C1CS05A
B	C1CS05B

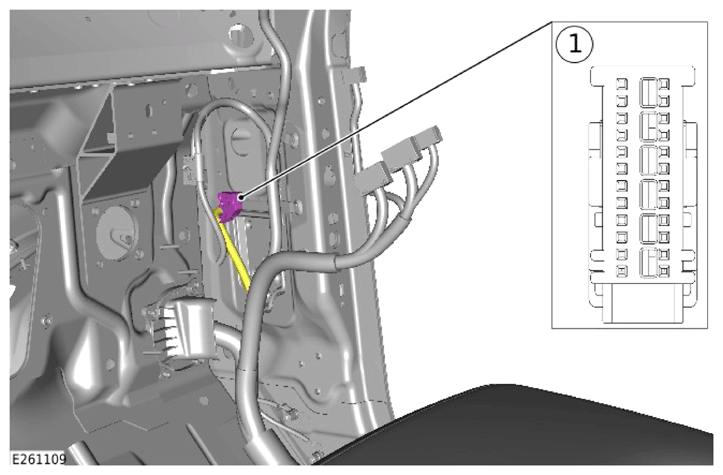

DADC Connector location

NOTE: Release the 2 clips to remove the footwell lamp and disconnect the electrical connector
Remove the 3 screws and Release the 2 clips to Remove the footwell trim panel
Remove the accelerator pedal assembly by disconnecting the electrical connector and Remove the 2 nuts
Remove the Driver Assistance Domain Controller (DADC) by Disconnecting the electrical connector and Remove the 3 nuts

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

ITEM	DESCRIPTION
1	C2MF20A

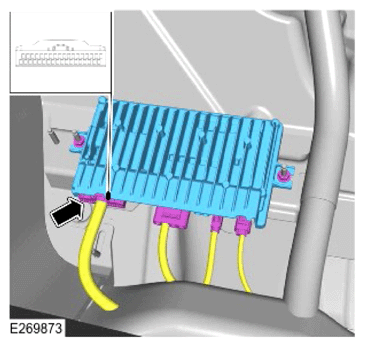

Near Field Sensing Module (NFSM) Connector location

NOTE: Remove the 4 seat bolts and Position the front row seat rewards
Remove the 4 screws from the floor console side panel and release the 15 clips to remove the floor console side panel
Remove the footwell lamp and disconnect the electrical connector
Remove the 3 screws from the passenger side footwell trim panel
Carefully release the front floor carpet for access
Remove the plastic footwell covers and Remove the 3 nuts from the bracket to gain access to the NFSM

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

ITEM	DESCRIPTION
1	C2MF32H

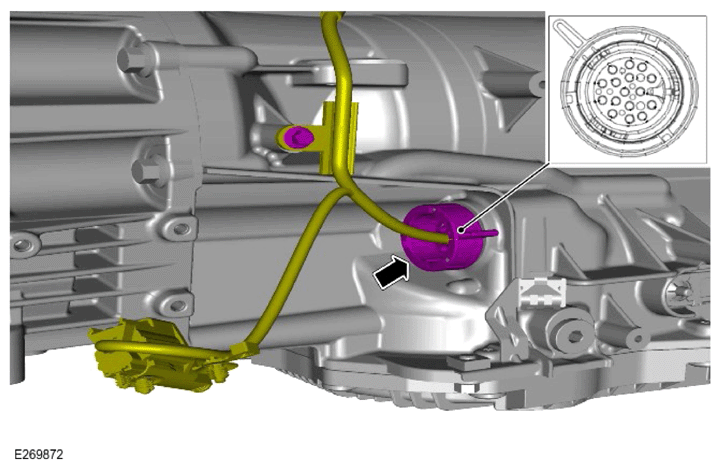

TCM Connector location

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

ITEM	DESCRIPTION
1	C1ET02

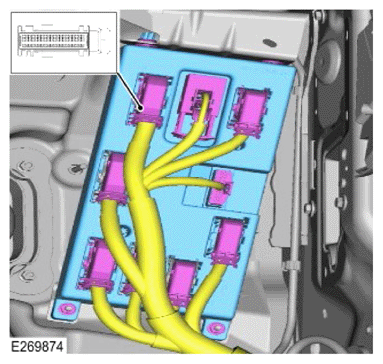

Body Control Module - Gateway Module Connector location

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

ITEM	DESCRIPTION
1	C2BP01H

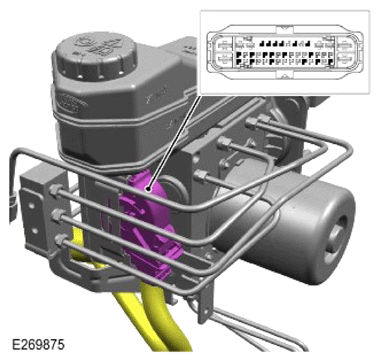

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

ITEM	DESCRIPTION
1	C1CA01E
