Switch Continuity

Inspect switch continuity between terminals. See Fig 1. If continuity is not as specified, replace the switch. See POWER WINDOW MASTER SWITCH .

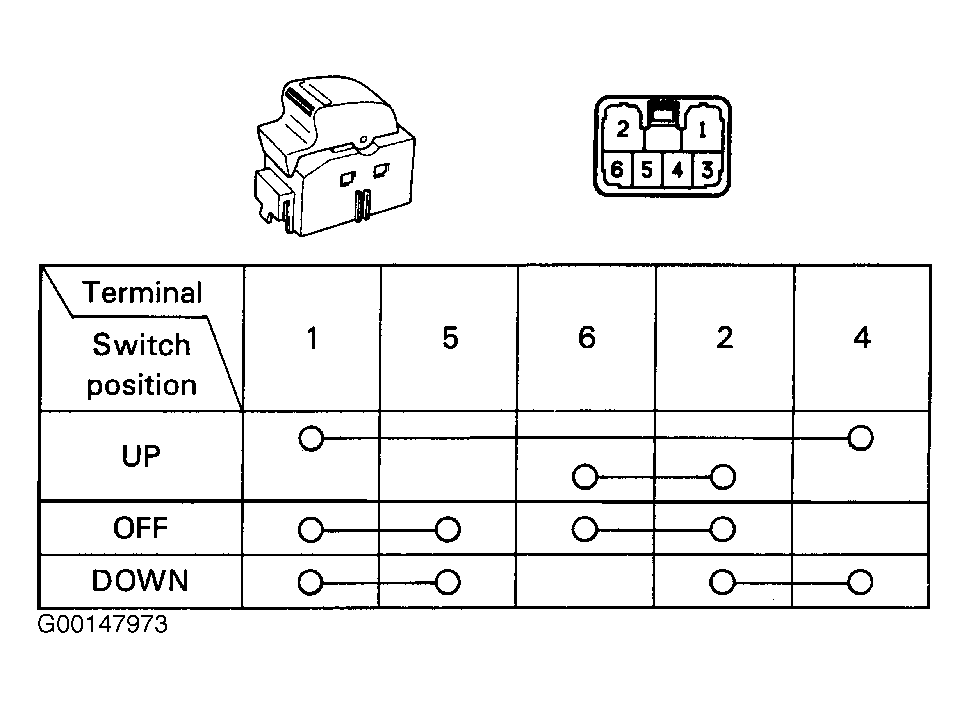

Fig 1: Testing Power Window Switch Continuity

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
