Code 12, 17 & 18 - Rpm Signal Circuits

NOTE: Code 12 refers to RPM Signal. Codes 17 and 18 refer to No. 1 and 2 cam sensor circuit.

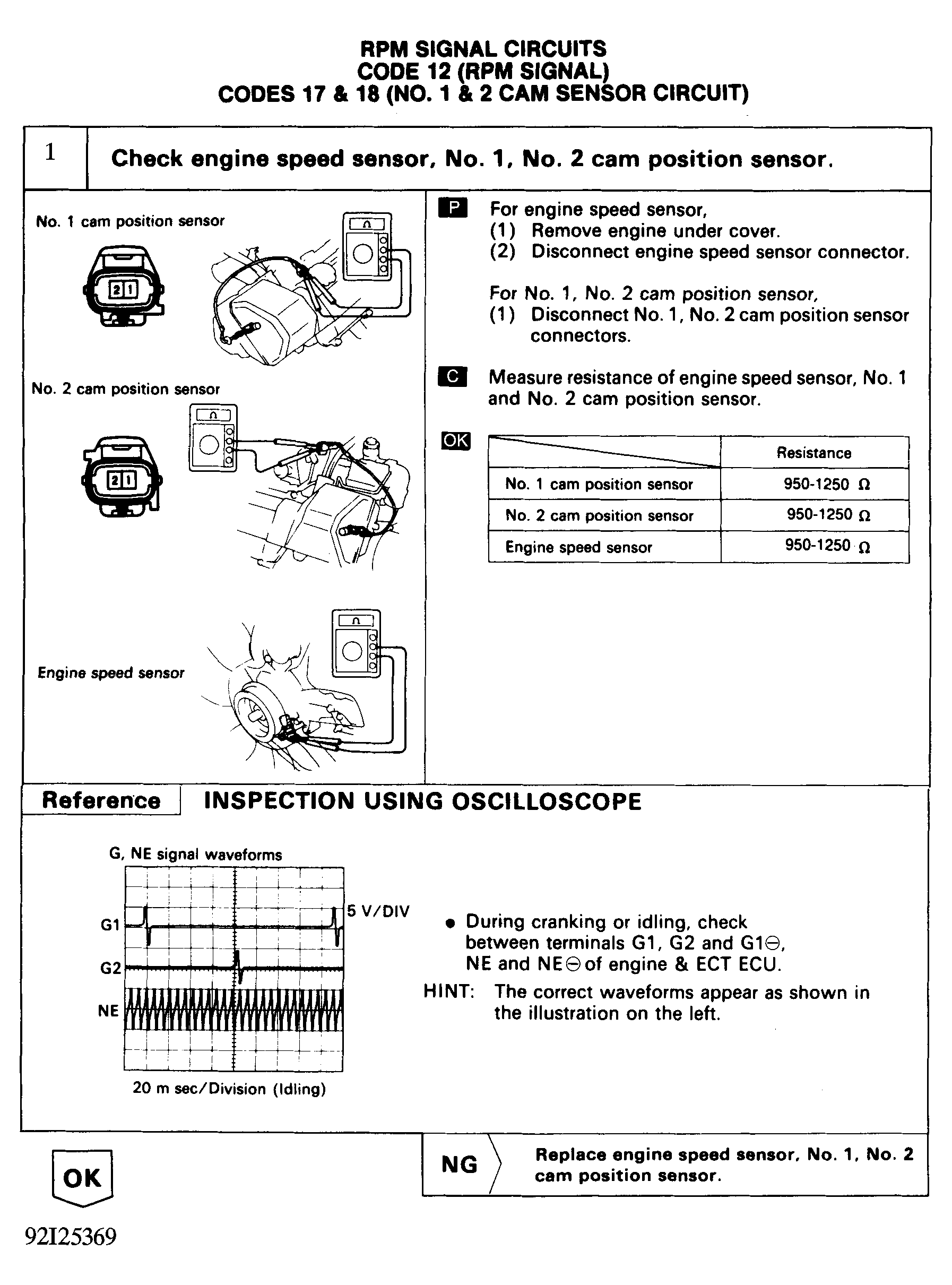

Fig 1: Code 12, 17 & 18 Flow Chart (1 of 2) - RPM Signal Circuits
G92I25369Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

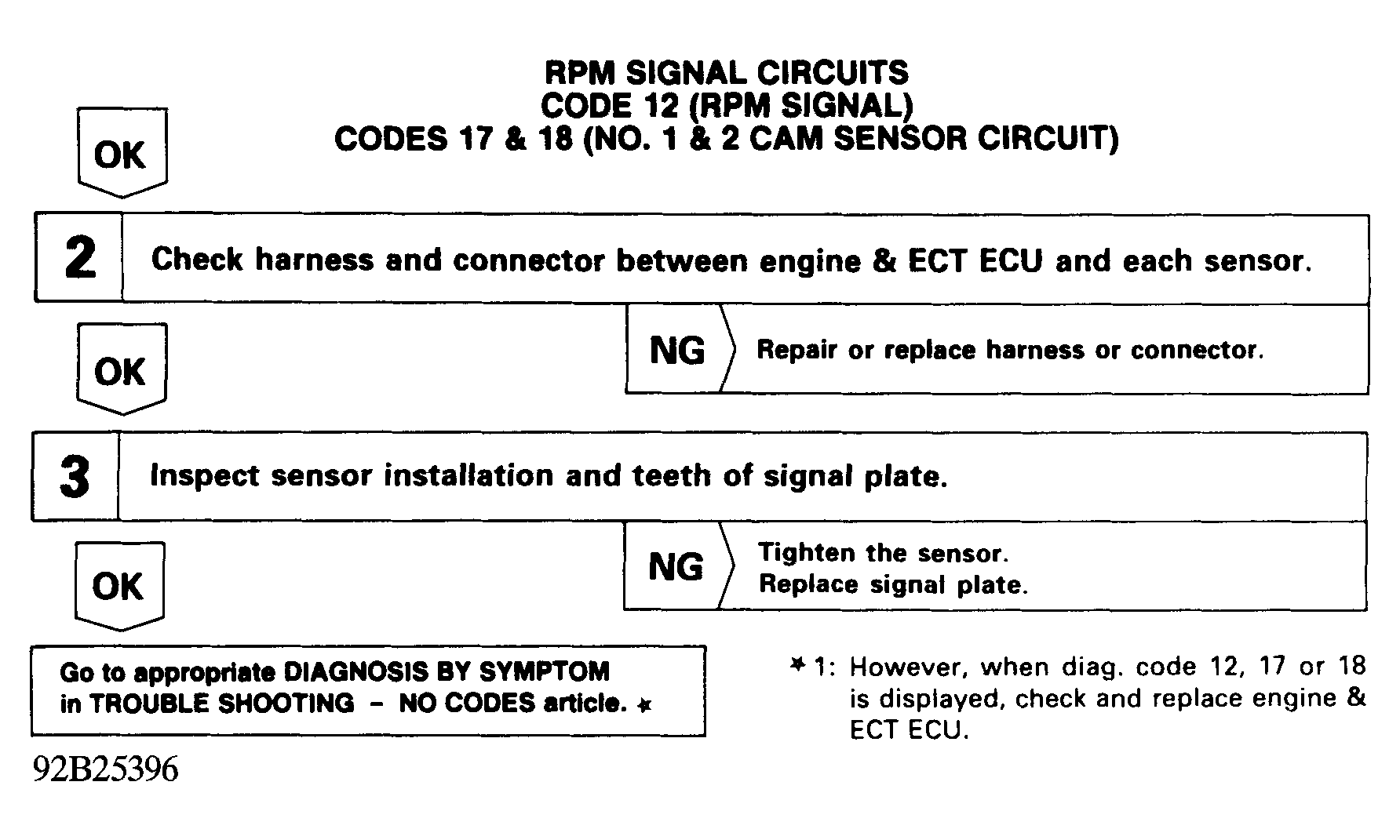

Fig 2: Code 12, 17 & 18 Flow Chart (2 of 2) - RPM Signal Circuits
G92B25396Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
