Component Locations

For help in power window electrical components, see Fig 1 and Fig 2 .

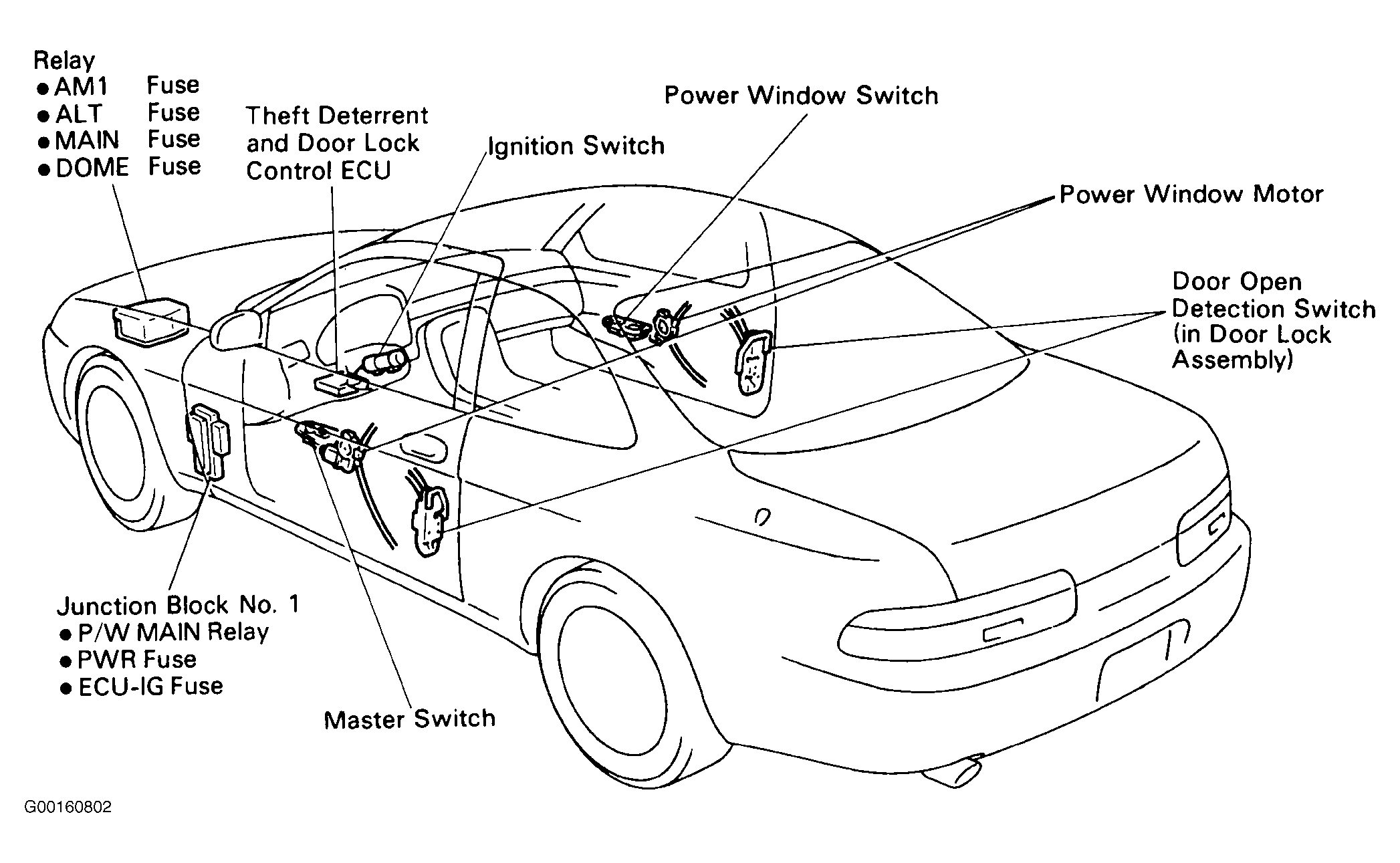

Fig 1: Locating Power Window Electrical Components
G00160802Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

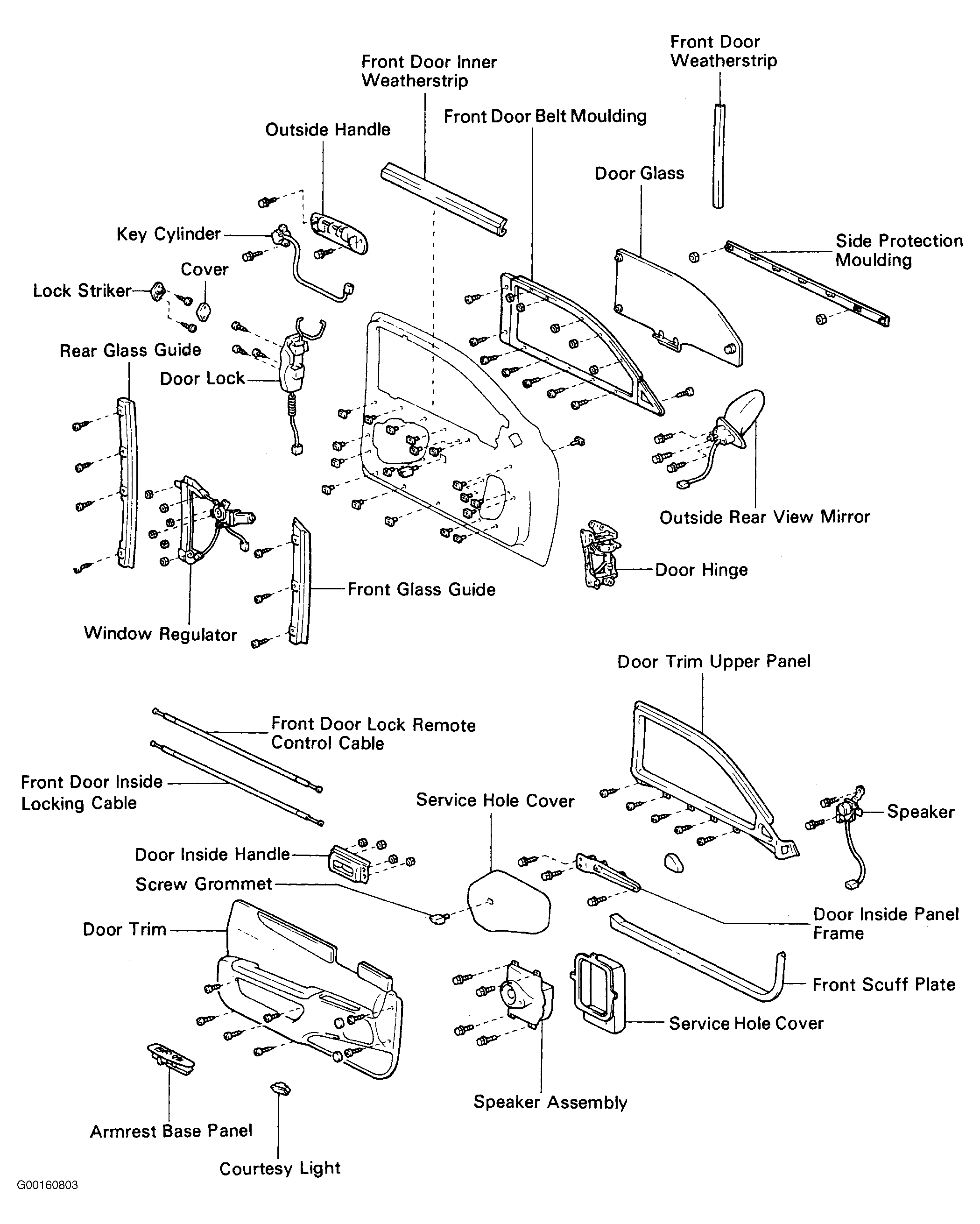

Fig 2: Exploded View Of Door Components
G00160803Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
