Wheel Alignment - Repair Manual Correction

SUSPENSION
004 (REVISED)

NOVEMBER 8, 1991

SC400

Title: 1992 SC400 REPAIR MANUAL CORRECTION

Listed below are corrections for the 1991 SC400 Repair Manual's SUSPENSION AND AXLE - Wheel Alignment (Front) section. Actual repair manual changes are attached as paste-in pages for LEXUS dealers.

Additional repair manual correction pages are available through the Dealer Support Material Network (MDC NPM system) by ordering Part Number 00246-B92031.

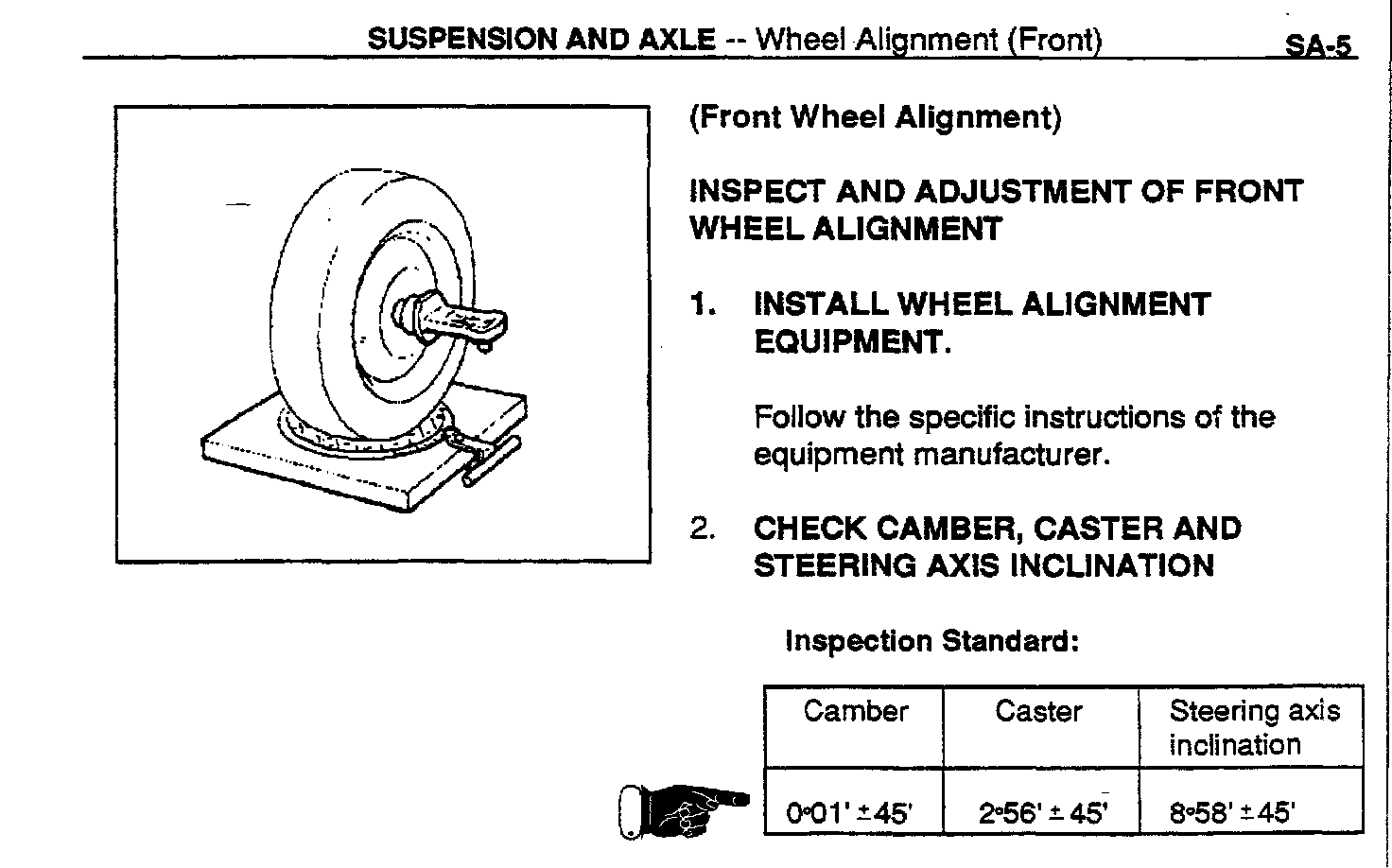

SA-5:

NOTE: The corrected information is indicated by the pointing hand.

NOTE: The SC400 New Car Features Book (Pub. No. NCF073U) lists slightly different alignment specifications. These are for a fully loaded vehicle. Please use the specifications listed above for service.
