Code P0110 - Intake Air Temperature Circuit Malfunction

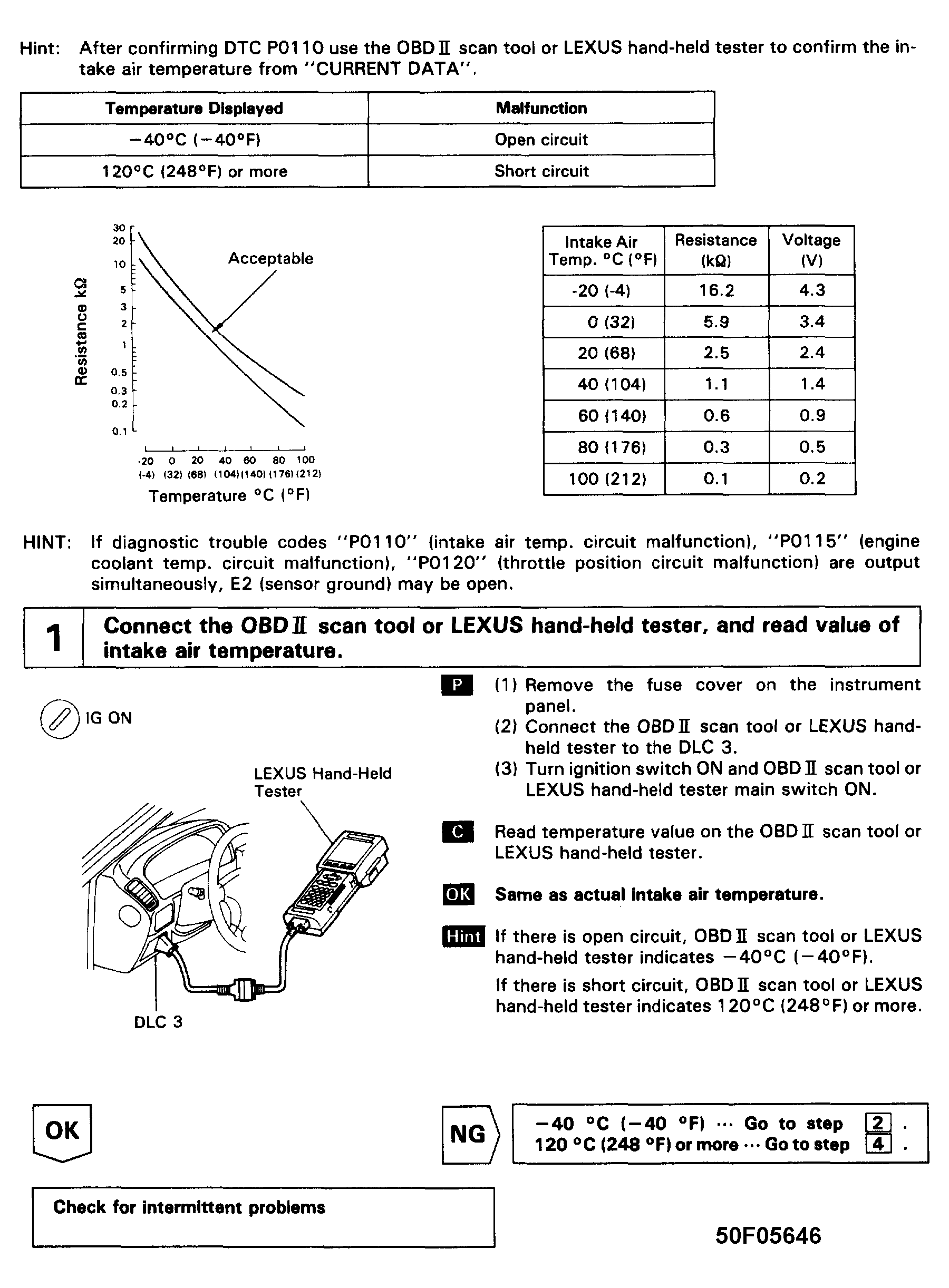

Fig 1: Code P0110 Flow Chart (1 Of 3) Intake Air Temperature Circuit Malfunction
G50F05646Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

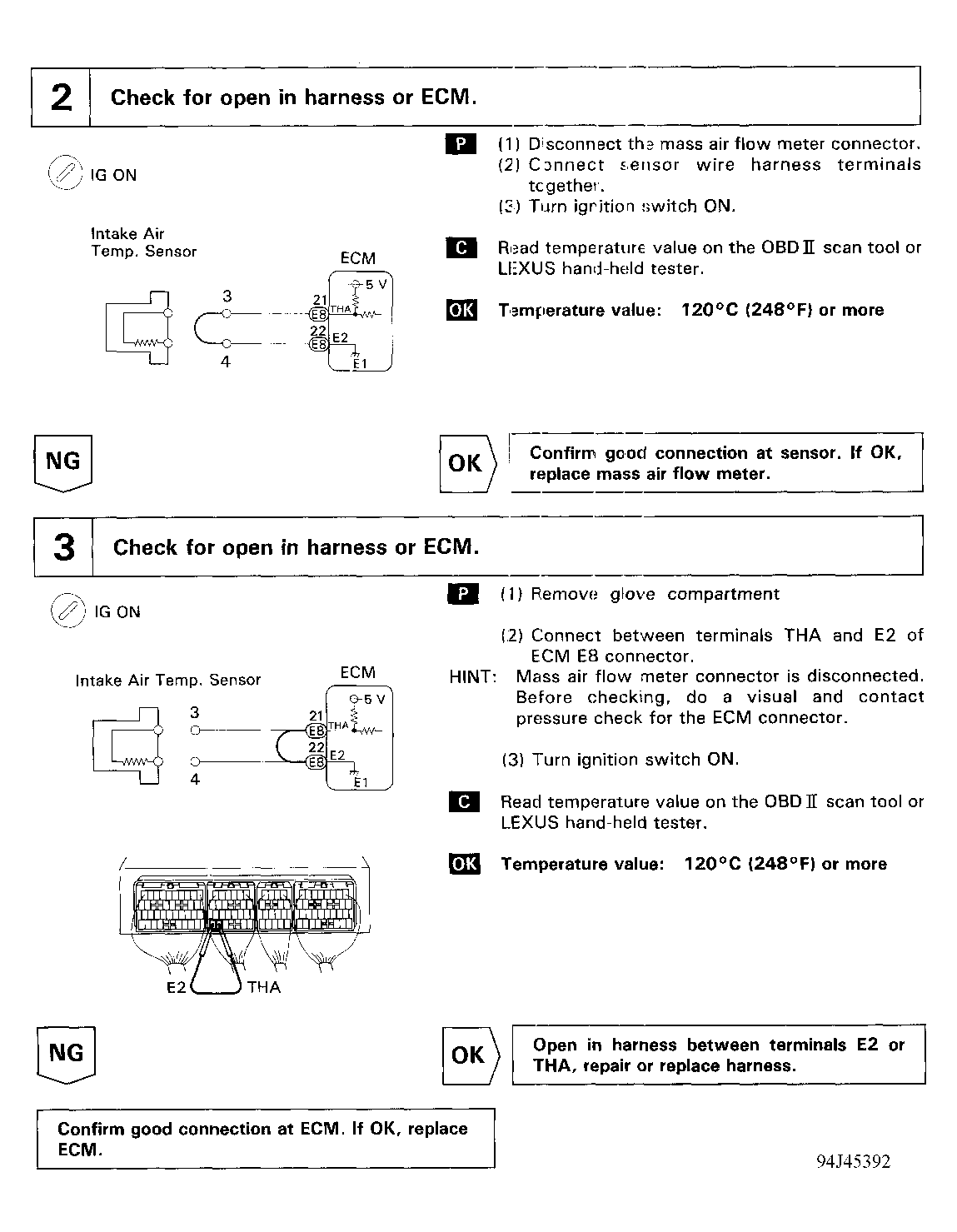

Fig 2: Code P0110 Flow Chart (2 Of 3) Intake Air Temperature Circuit Malfunction
G94J45392Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

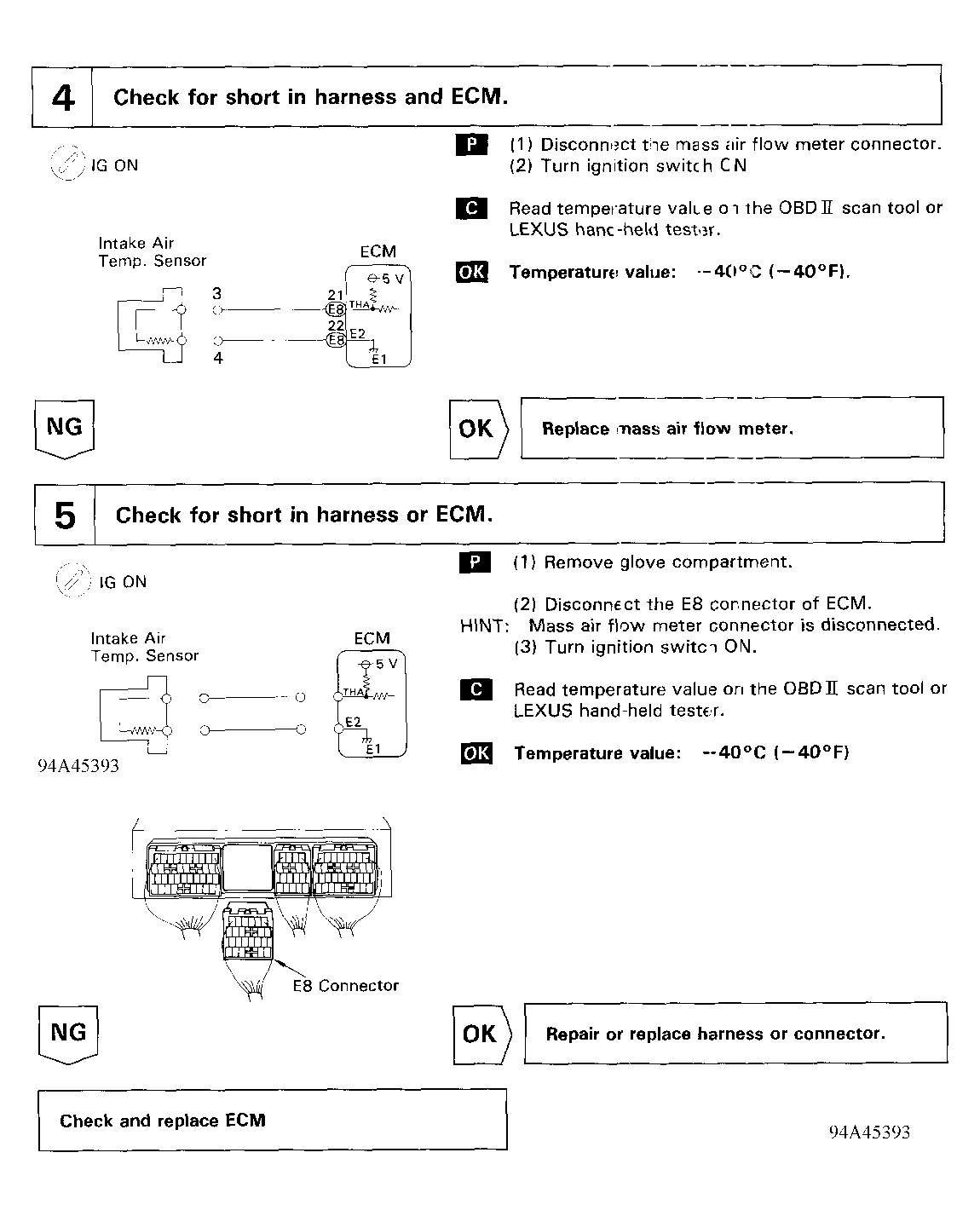

Fig 3: Code P0110 Flow Chart (3 Of 3) Intake Air Temperature Circuit Malfunction
G94A45393Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
