Code P0402 - Exhaust Gas RECIRCULATION Flow Excess Detected

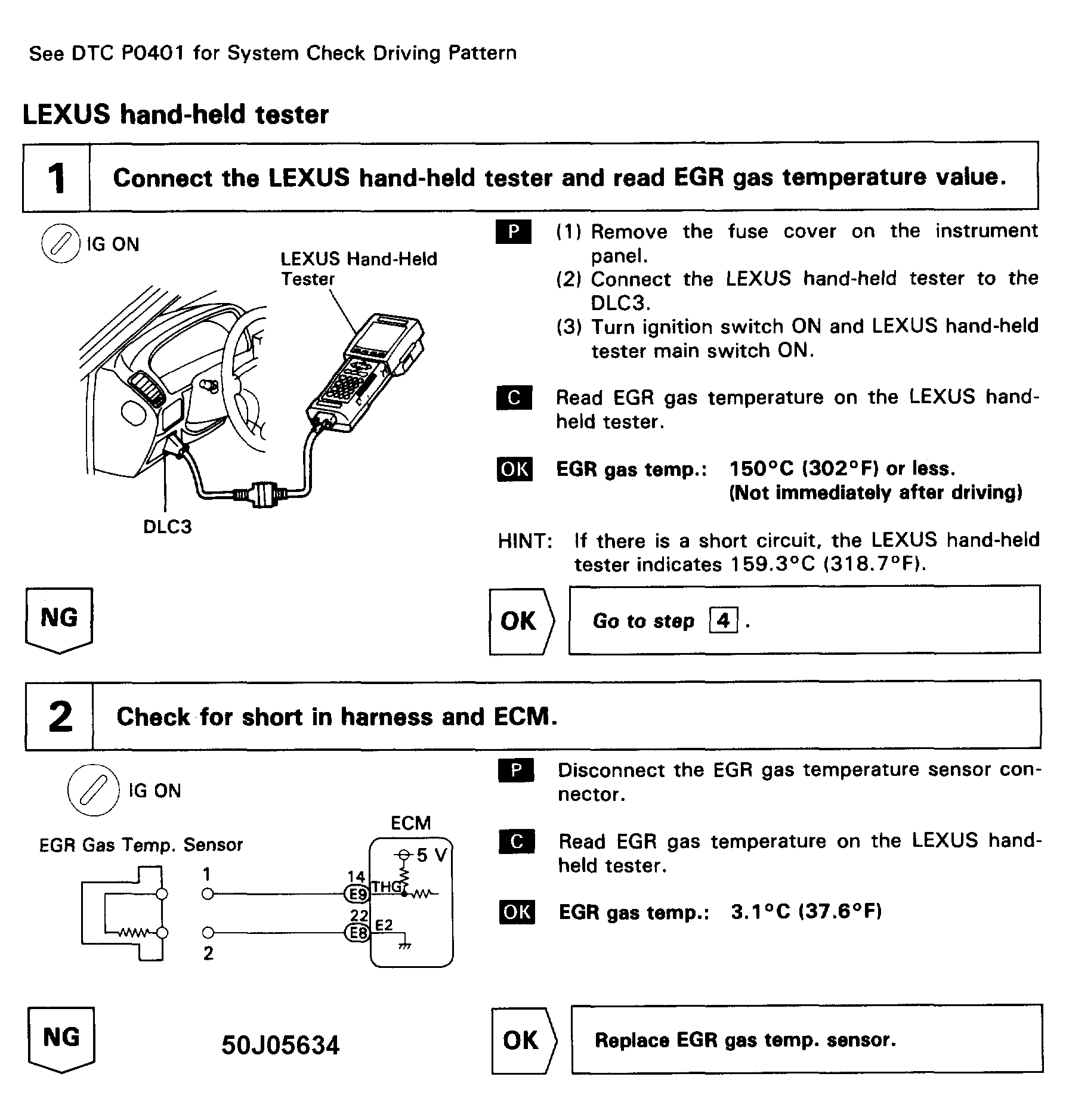

Fig 1: Code P0402 Flow Chart (1 Of 4) Exhaust Gas Recirculation Flow Excessive Detected
G50J05634Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

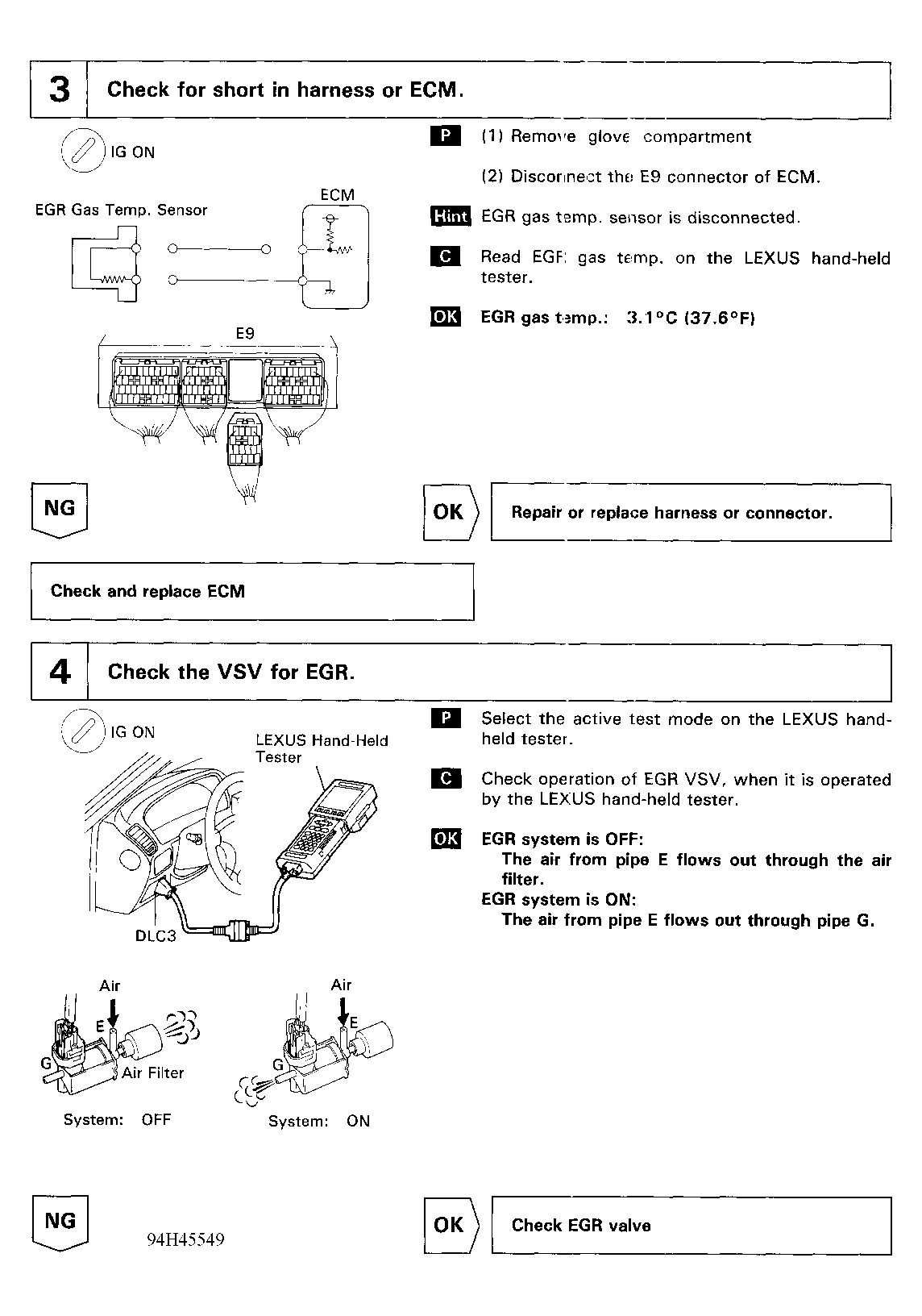

Fig 2: Code P0402 Flow Chart (2 Of 4) Exhaust Gas Recirculation Flow Excessive Detected
G94H45549Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

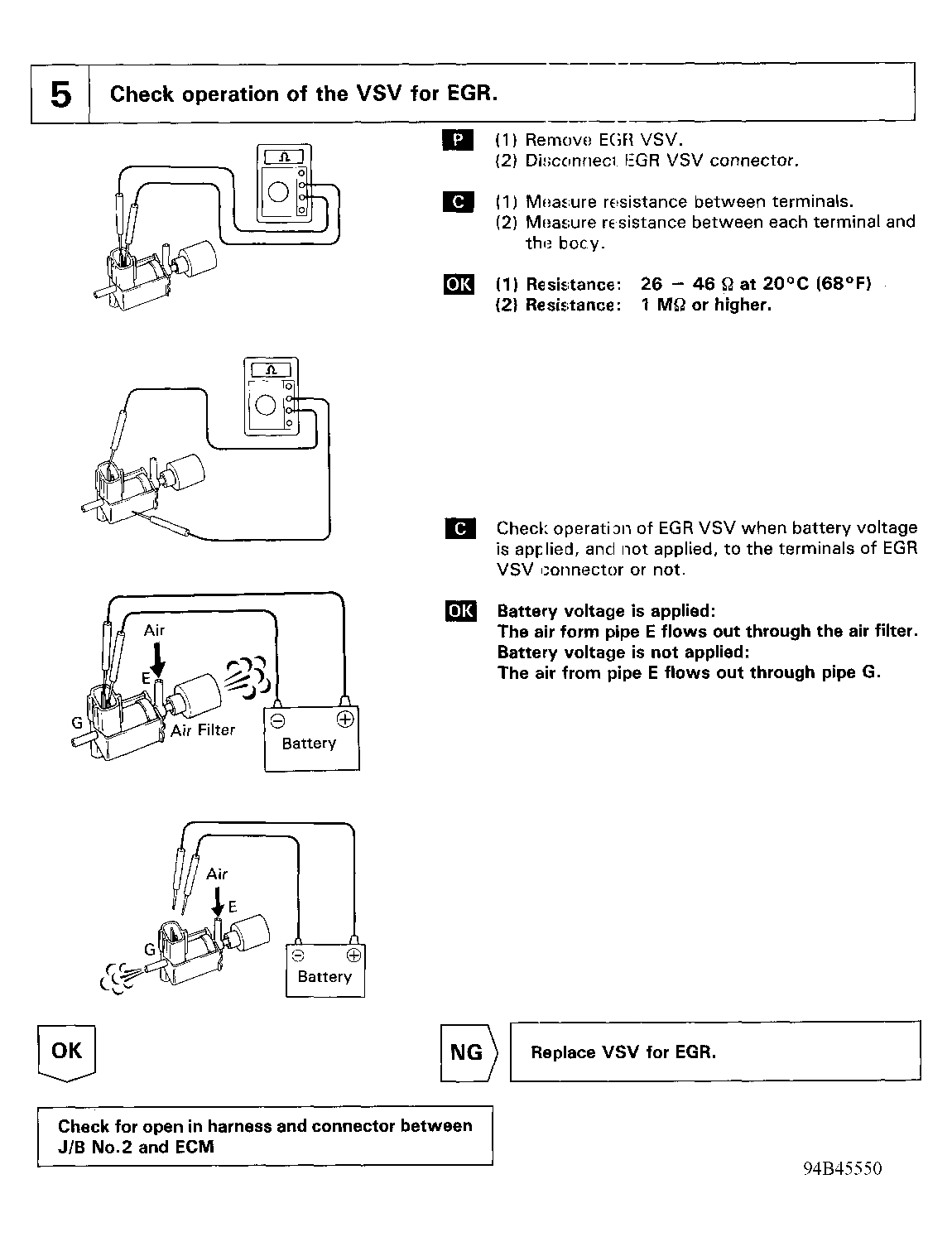

Fig 3: Code P0402 Flow Chart (3 Of 4) Exhaust Gas Recirculation Flow Excessive Detected
G94B45550Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

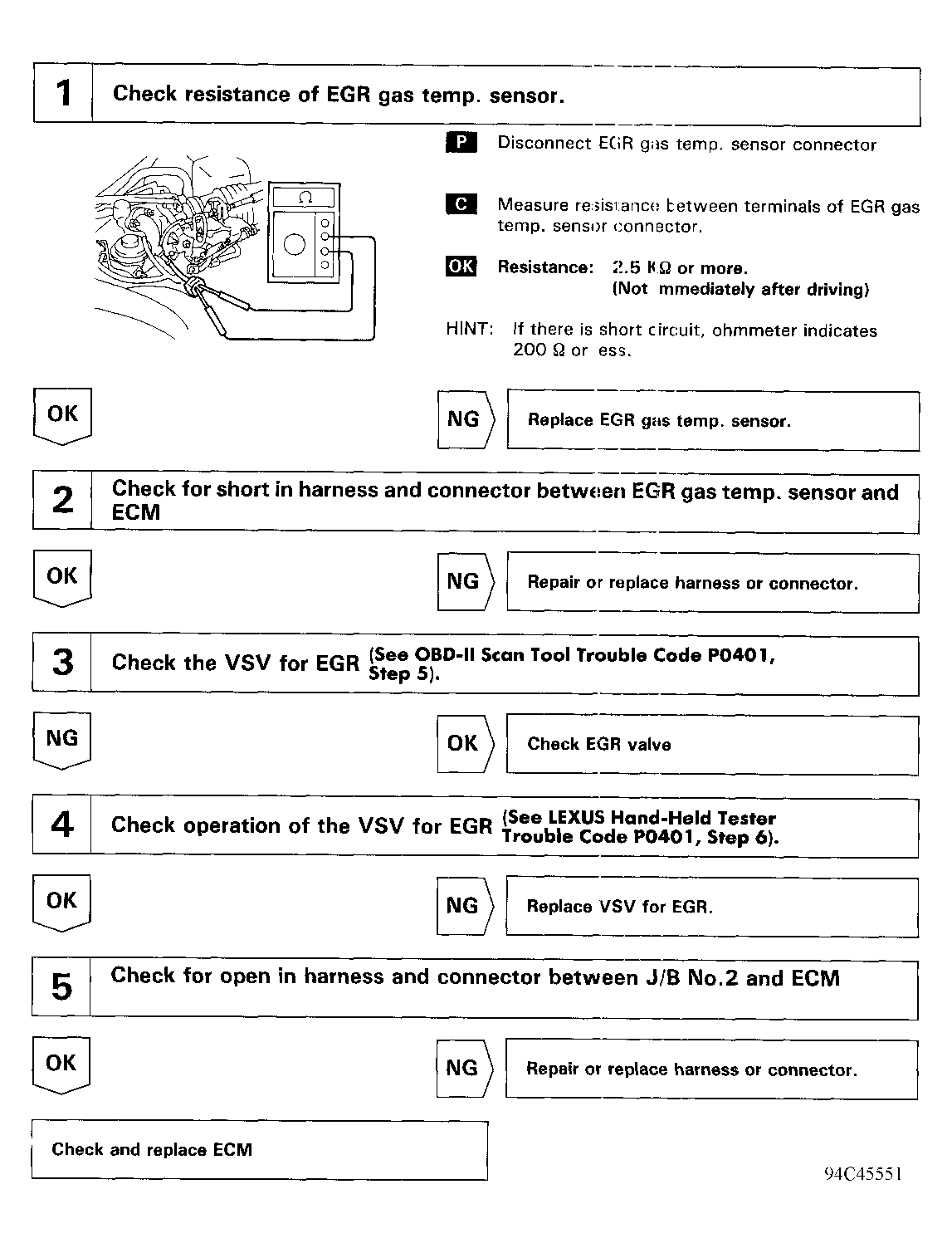

Fig 4: Code P0402 Flow Chart (4 Of 4) Exhaust Gas Recirculation Flow Excessive Detected
G94C45551Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
