Code P1300 - IGNITOR Circuit Malfunction

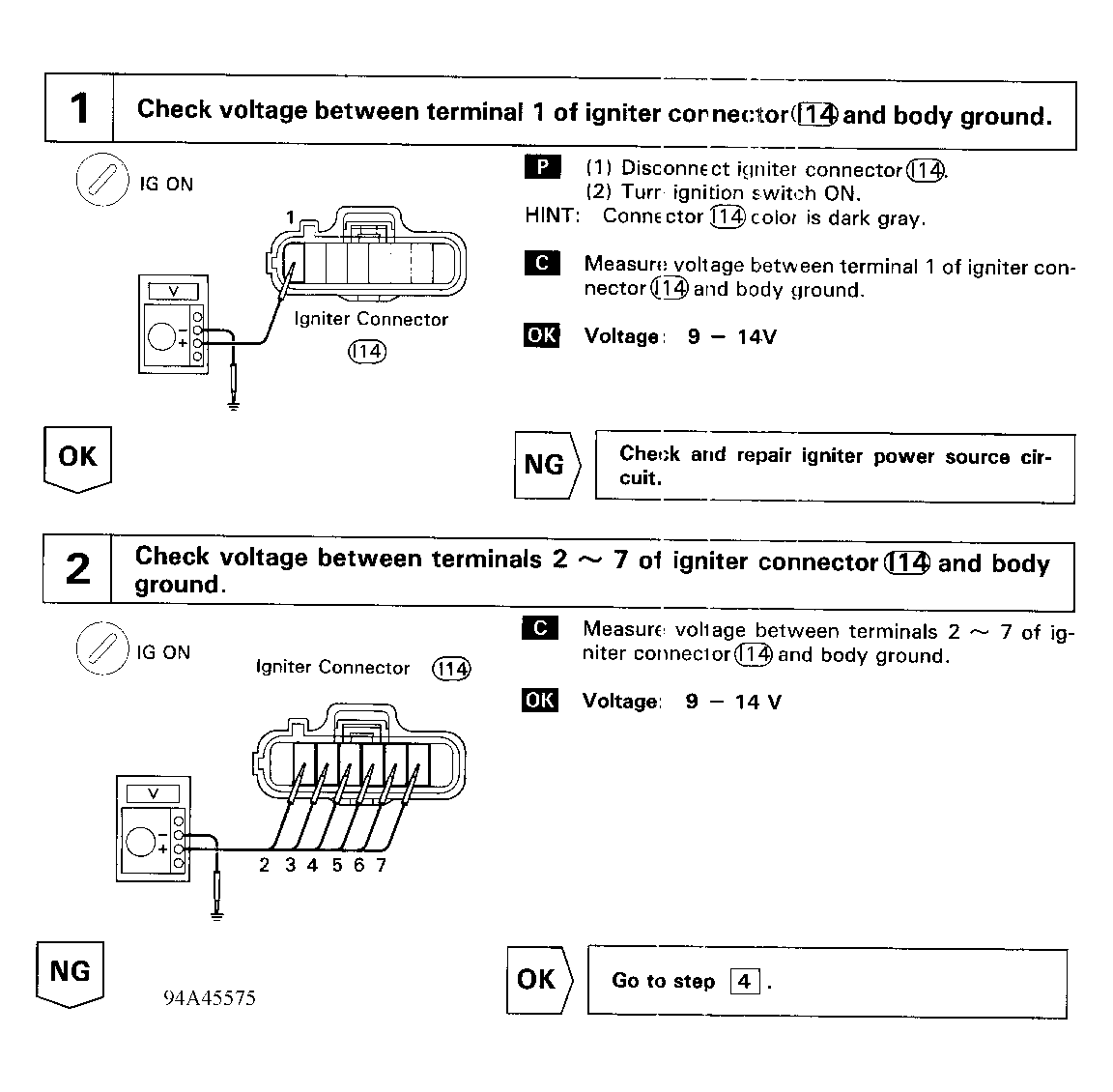

Fig 1: Code P1300 Flow Chart (1 Of 4) Ignitor Circuit Malfunction
G94A45575Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

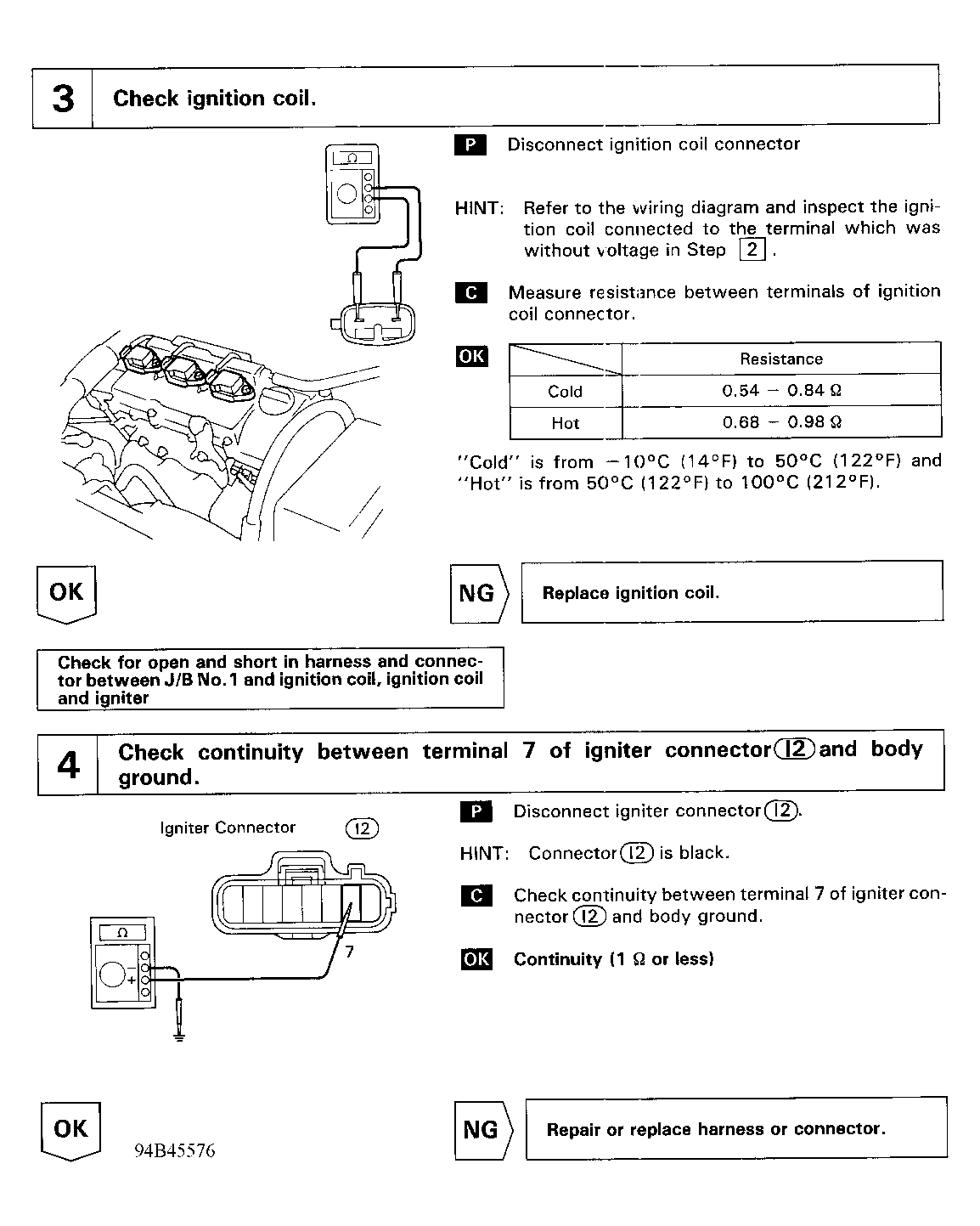

Fig 2: Code P1300 Flow Chart (2 Of 4) Ignitor Circuit Malfunction
G94B45576Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

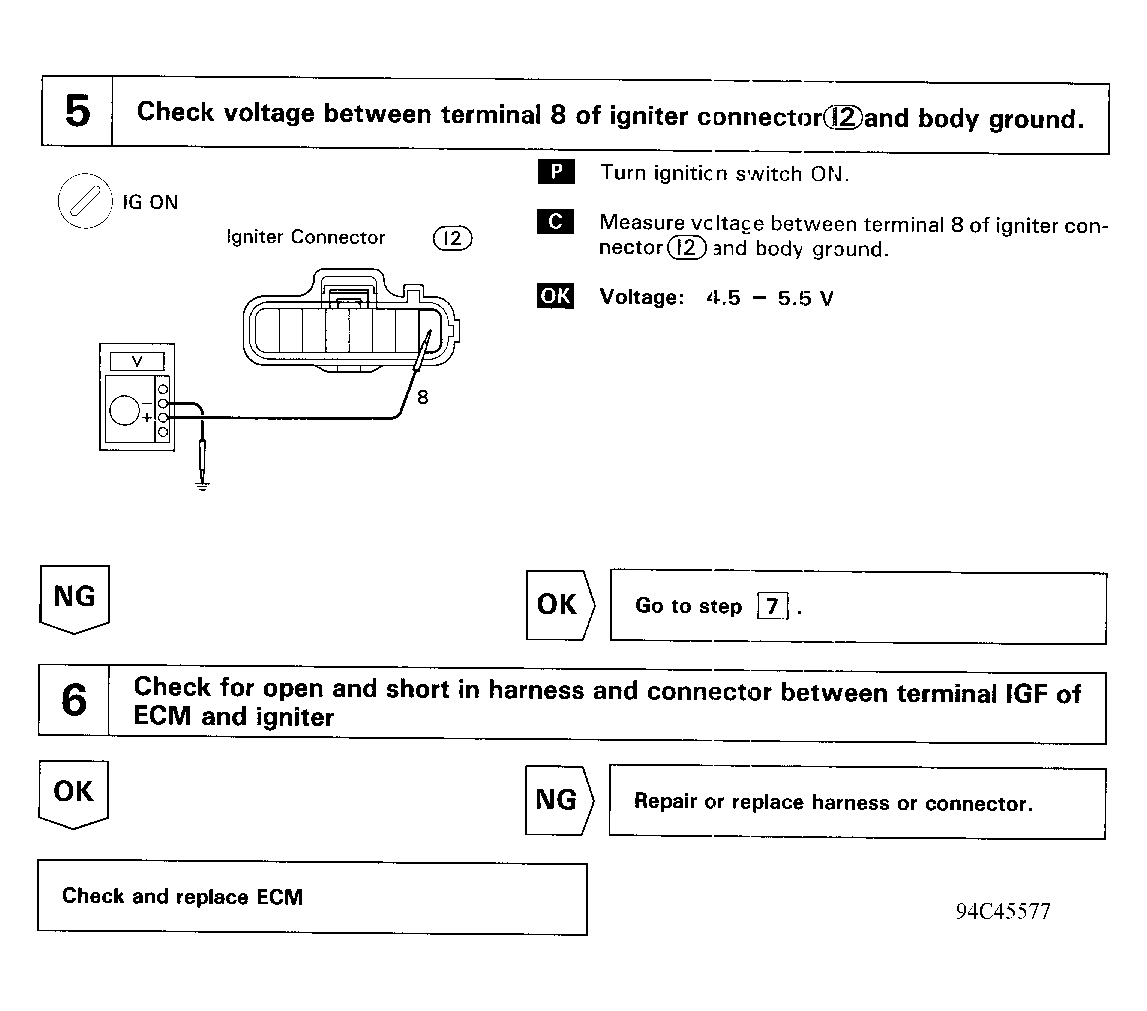

Fig 3: Code P1300 Flow Chart (3 Of 4) Ignitor Circuit Malfunction
G94C45577Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

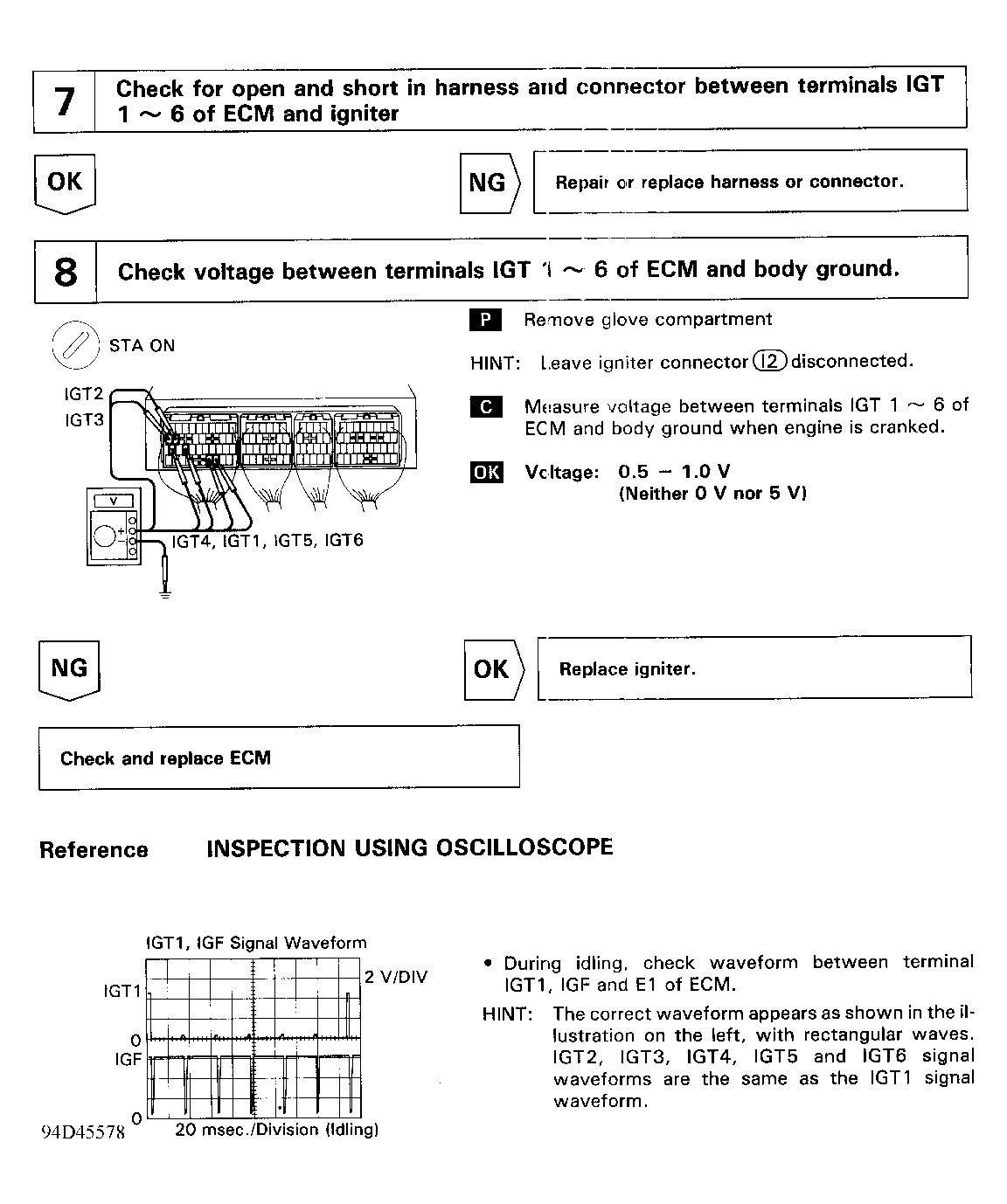

Fig 4: Code P1300 Flow Chart (4 Of 4) Ignitor Circuit Malfunction
G94D45578Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
