Power & Ground Circuits
WARNING: This page is about a different car, the 1995 Toyota Camry. However, it is still accessible from the selected car via links, so may be relevant.
For testing of power/ground circuits, see procedures in the PIN VOLTAGE CHART S article. See ECM LOCATION table for identifying ECM mounting locations.
ECM LOCATION
| Model | Location |
|---|---|
| Camry | Behind Glove Box |
NOTE:

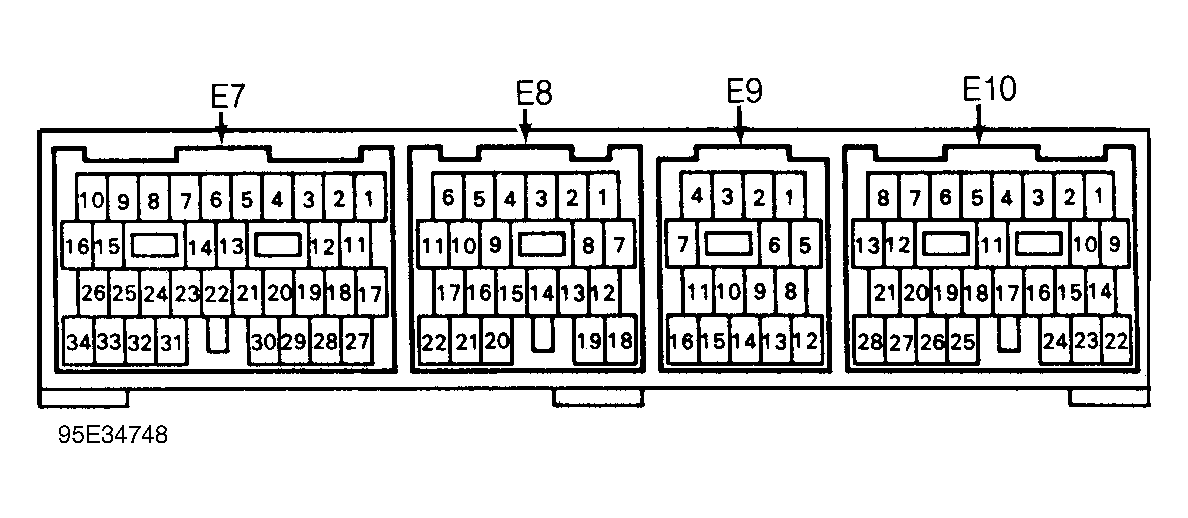

SeeFig 1 identifies ECM terminals which are used for performing tests on various components in this article.
