Crankshaft Position Sensor: Service and Repair

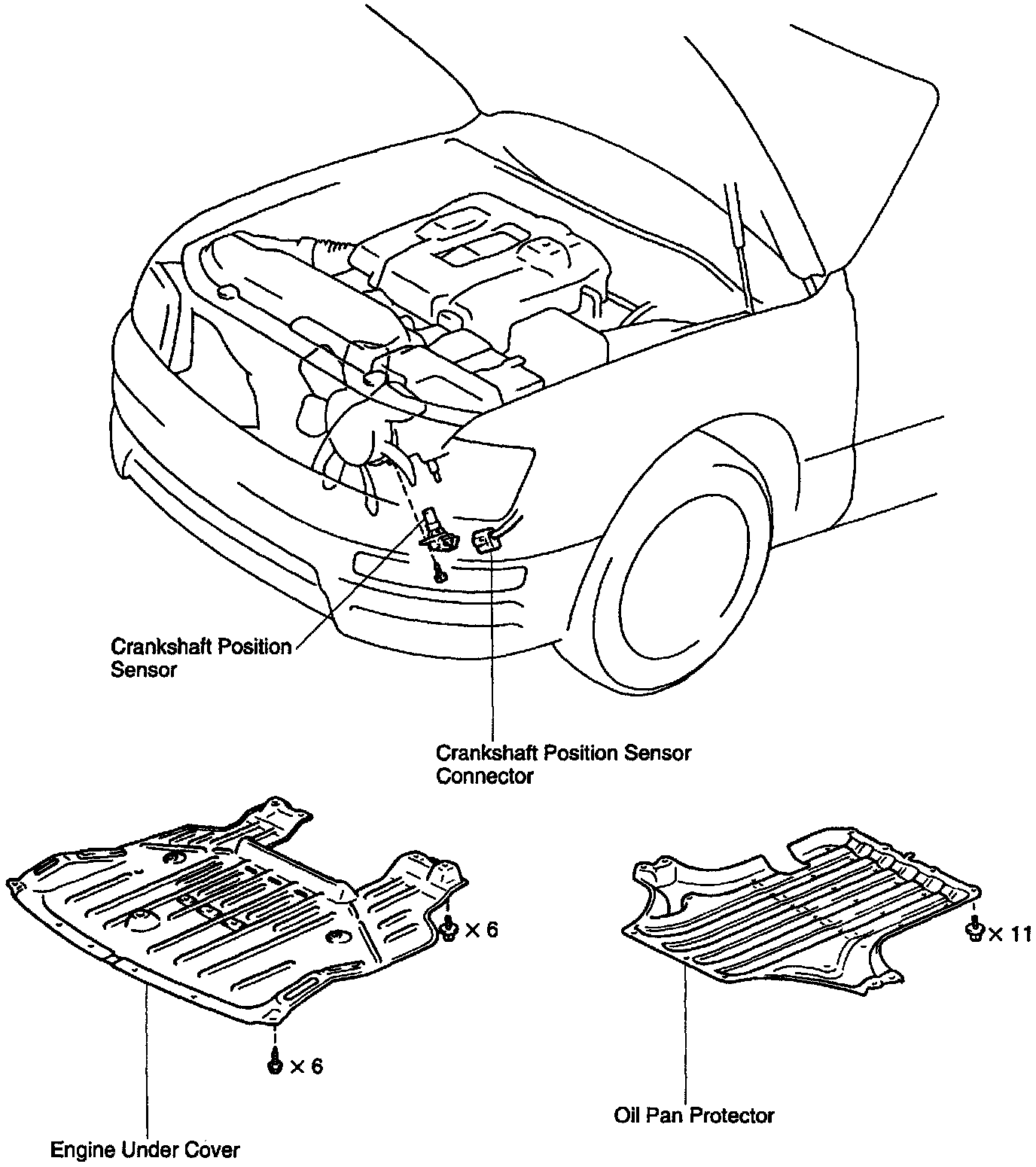

CRANKSHAFT POSITION SENSOR REMOVAL




NOTE: Installation is in the reverse order of removal.

1. REMOVE OIL PAN PROTECTOR.
2. REMOVE ENGINE UNDER COVER.
3. DISCONNECT CRANKSHAFT POSITION SENSOR CONNECTOR.



4. REMOVE CRANKSHAFT POSITION SENSOR.

Torque: 6.5 Nm (56 in.lb)
