System Test Charts: Speedometer

Fig 1: Does Not Operate While Driving (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

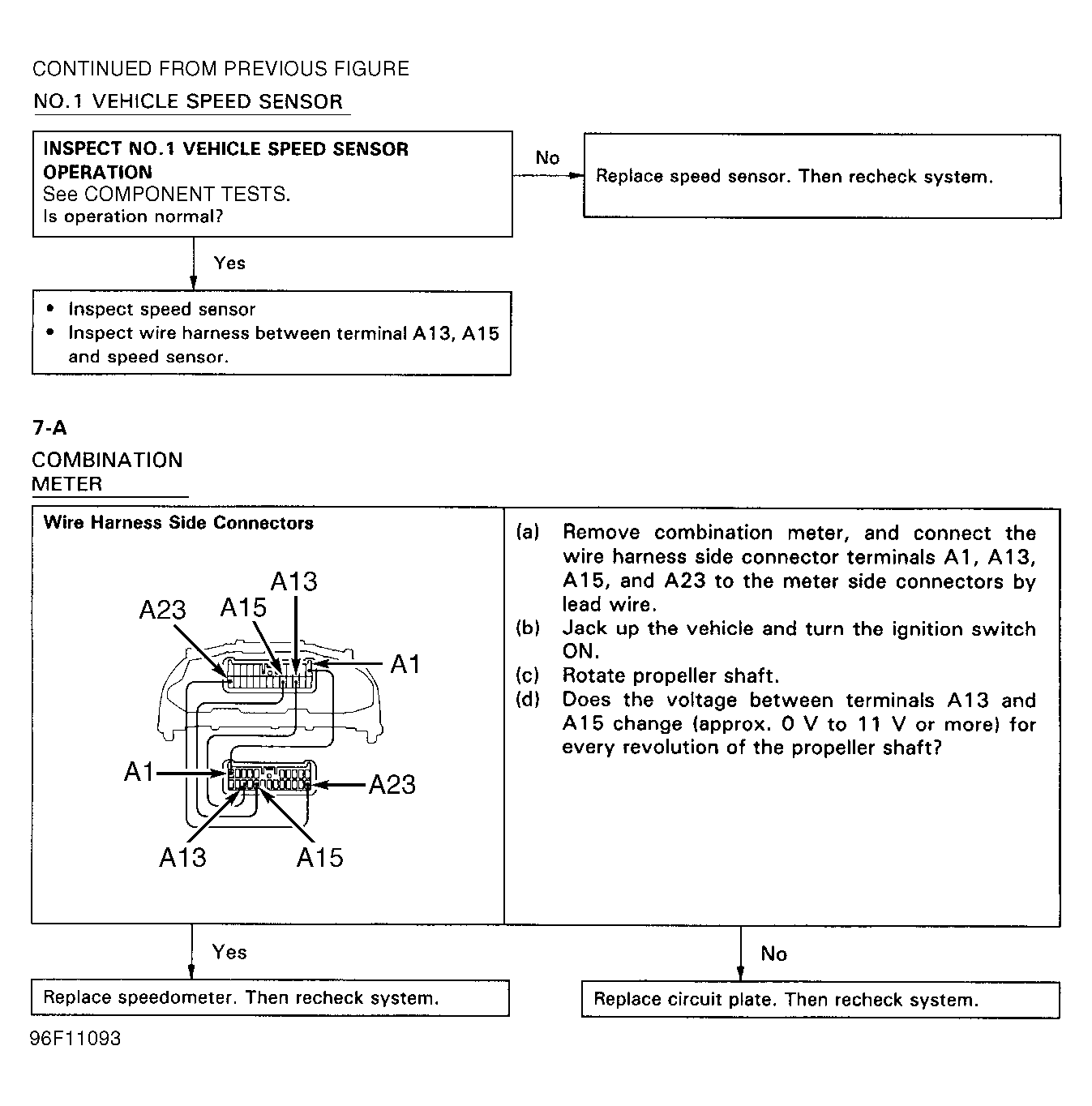

Fig 2: Does Not Operate While Driving (2 Of 2)

Fig 3: Vehicle Speed Signal (4P) Faulty
