Power Main Relay

Remove relay (located behind left side kick panel, in junction block). See Fig 1. Replace relay if it does not operate as follows:

• No continuity should exist between terminals No. 3 and 5.
• Apply battery voltage and ground between terminals No. 1 and 2. Continuity should exist between terminals No. 3 and 5.

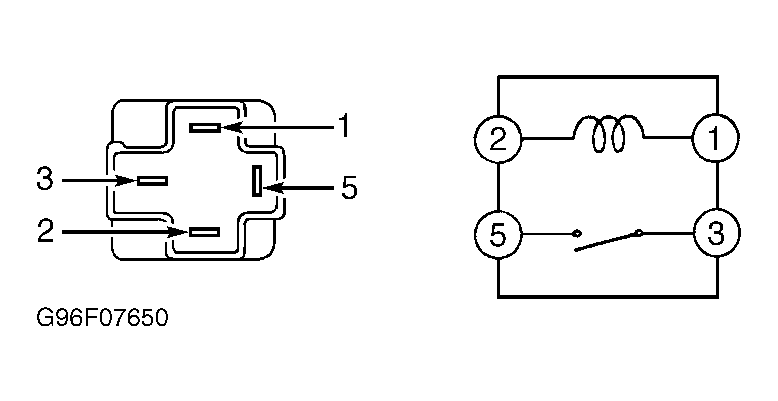

Fig 1: Identifying Power Main Relay Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
