Door Lock Switch (Luggage) Circuit

CIRCUIT DESCRIPTION

The door lock (luggage) switch is built in the luggage door lock assembly, and it it turned on when the luggage door is opened and turned off when it is closed.

Wiring Diagram:

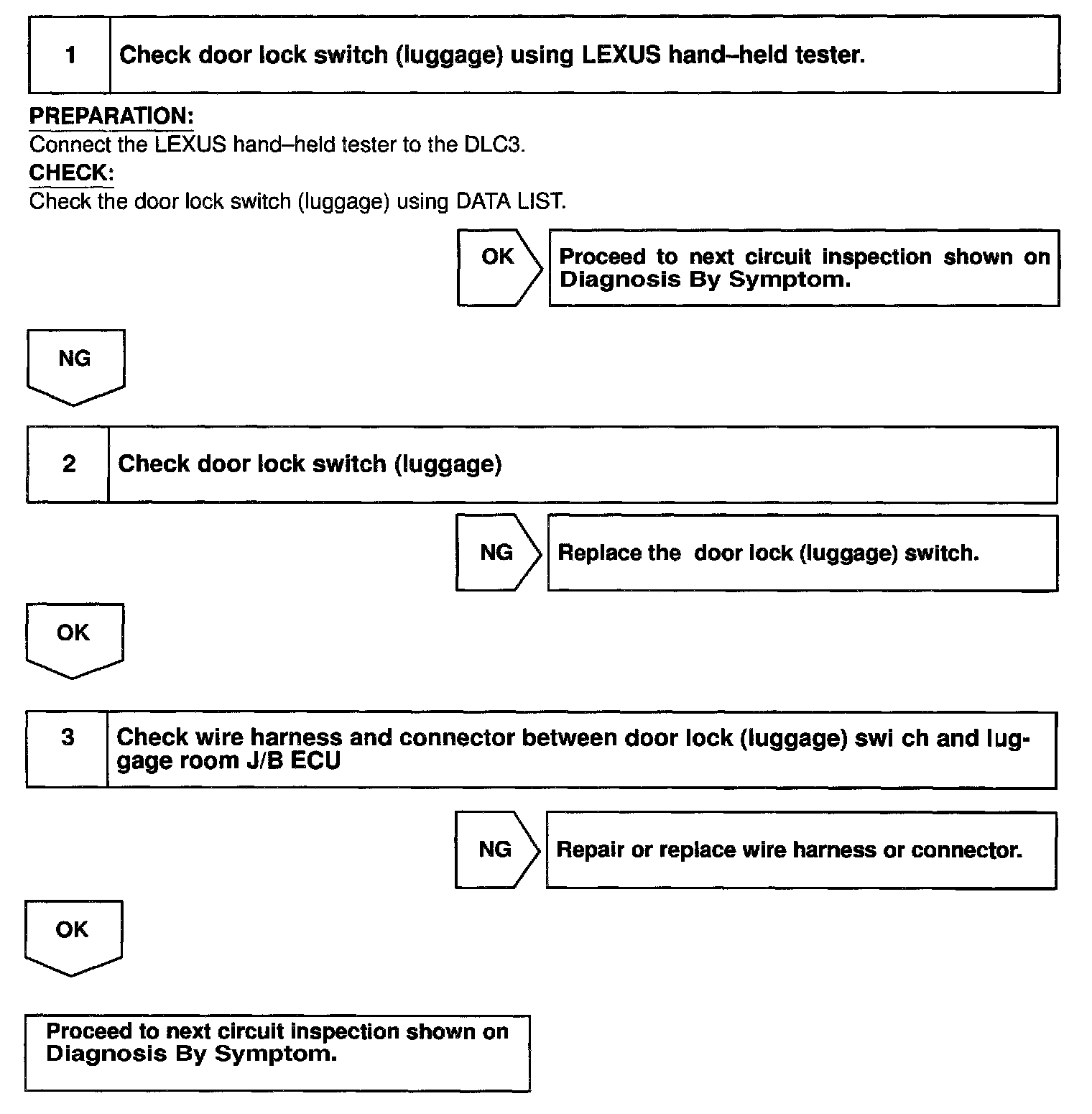

Steps 1 - 3:




INSPECTION PROCEDURE
