How To Proceed With Troubleshooting

HINT:

This ECU is connected to the multiplex communication system. Therefore, be sure to check that there is no trouble in the multiplex communication system before performing the troubleshooting.

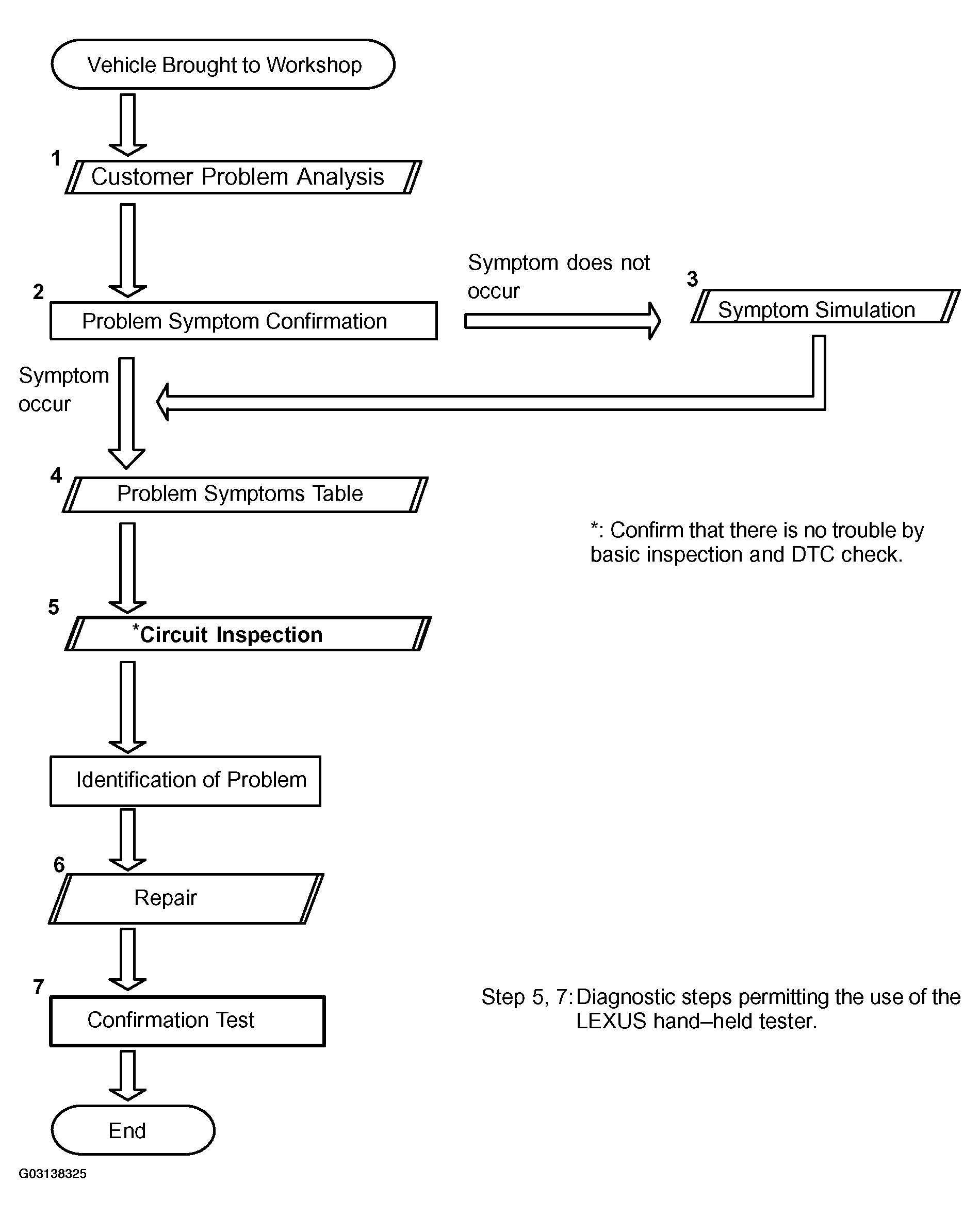

Fig 1: Rain Sensor System Troubleshooting Flow Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
