Inspection Procedure
WARNING: This page is about a different car, the 2003 Lexus LX 470. However, it is still accessible from the selected car via links, so may be relevant.
- Check voltage between terminals IND of transponder key ECU connector and body ground (See
HOW TO USE THE DIAGNOSTIC CHART AND INSPECTION PROCEDURE
).
PREPARATION:
Turn ignition switch ON and switch to diagnosis mode.
CHECK:

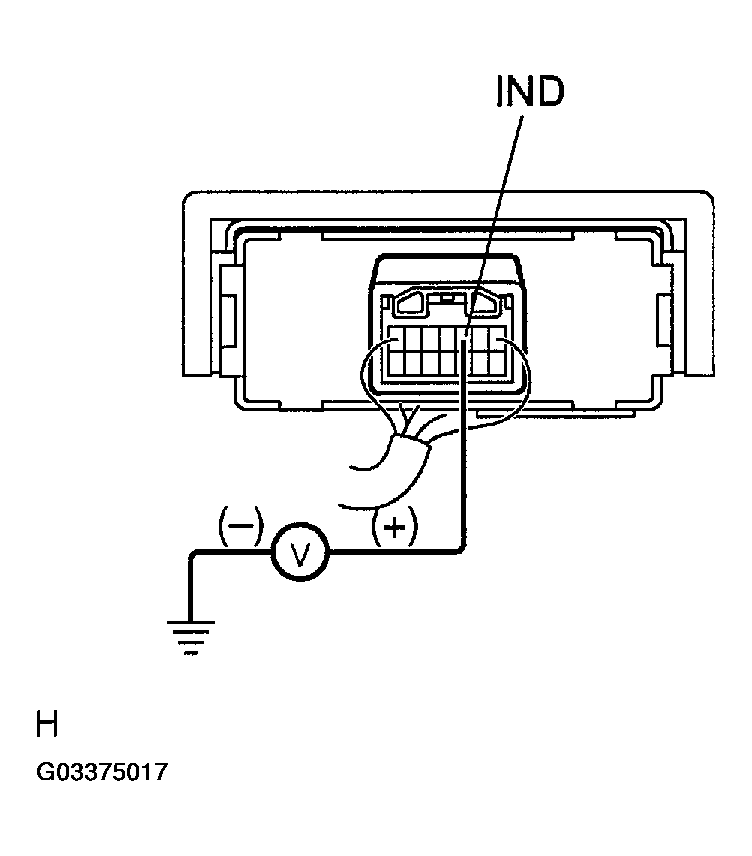

Measure voltage between terminals IND of transponder key ECU connector and body ground when security indicator light comes on and goes off.
OK:
INDICATOR LIGHT VOLTAGEIndicator light Voltage Come on 3-6 V Go off Below 1 V Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- NG : Proceed to next circuit inspection shown in problem symptom table (See PROBLEM SYMPTOMS TABLE ).
- OK : Go to next step
- Check security indicator.
HINT:
w/LEXUS Navigation System (See TERMINALS OF ECU )
PREPARATION:
Turn ignition switch ON and switch to diagnosis mode.
CHECK:

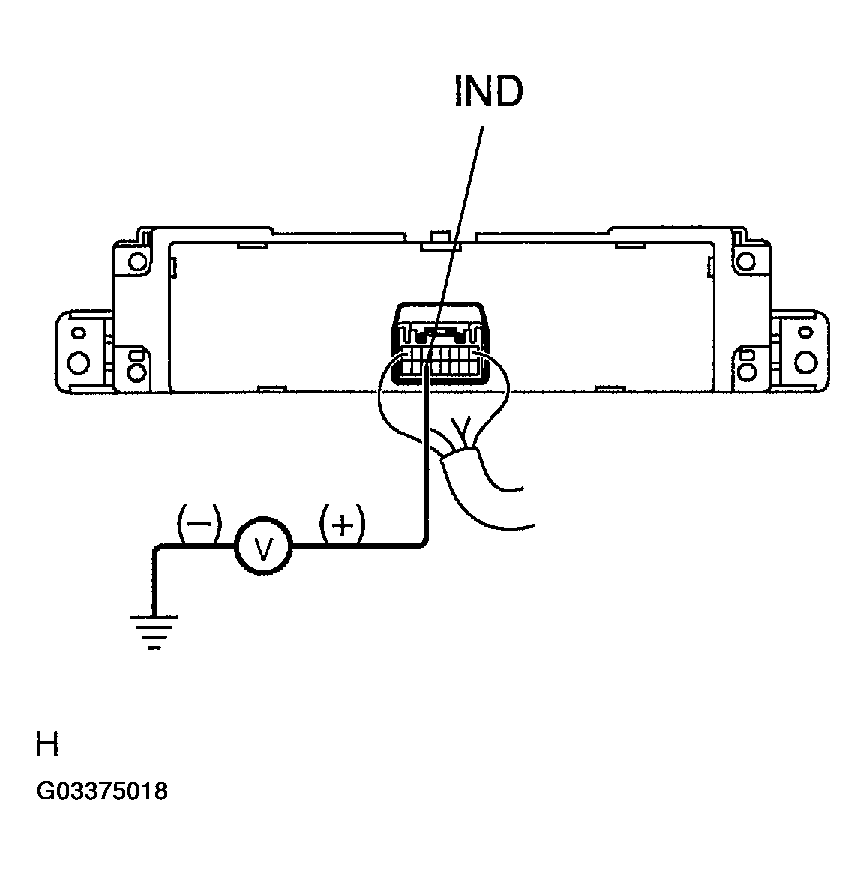

Measure voltage between terminals IND of transponder key ECU connector and body ground when security indicator light comes on and goes off.
OK:
INDICATOR LIGHT VOLTAGEIndicator light Voltage Come on 8-10V Go off Below 1 V Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- NG : Repair or Replace wire harness or connector.
- OK : Check and replace multi-information display.
