Section 552 (Headlight & Taillight System): Location

WARNING: This page is about a different car, the 2003 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.

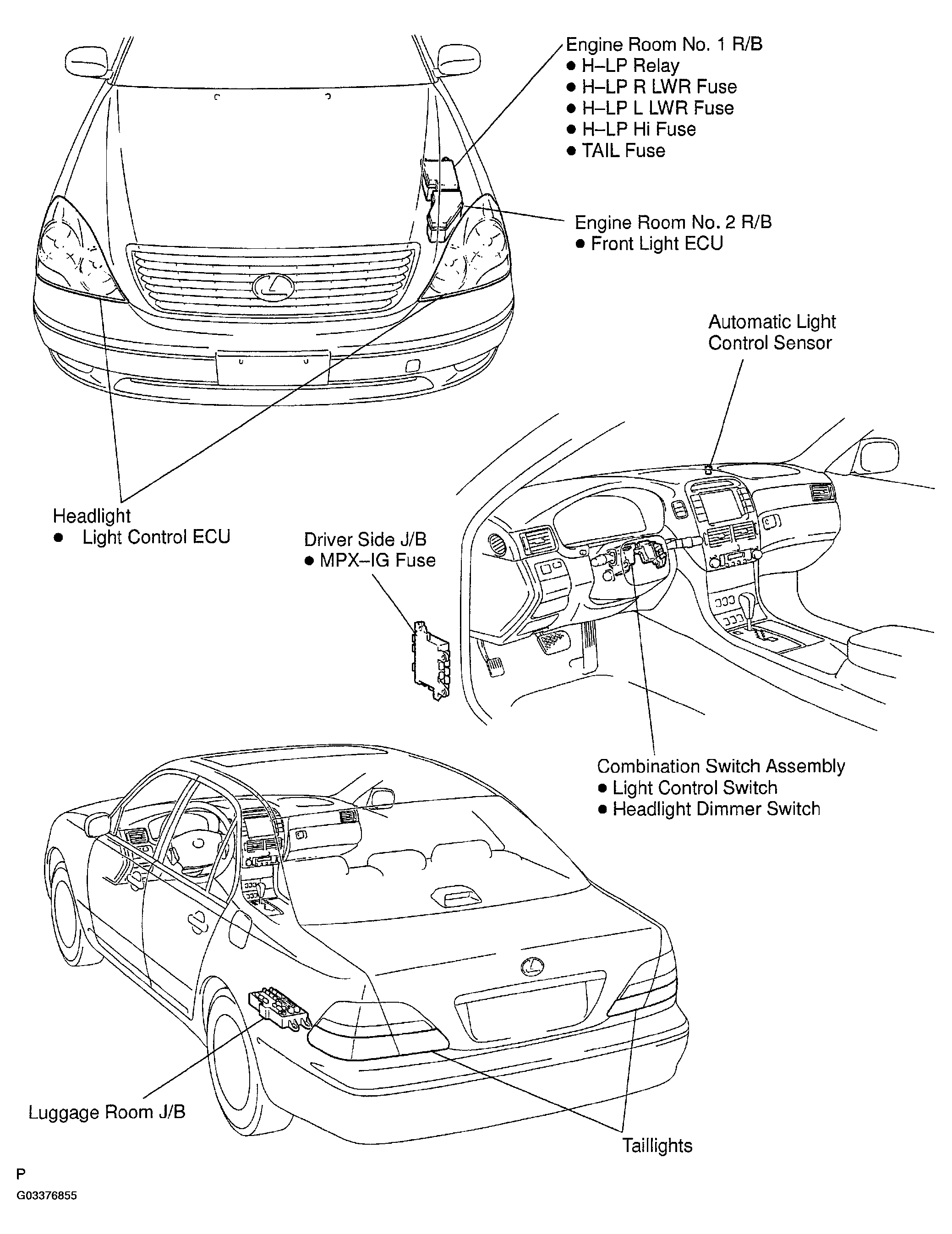

Fig 1: Identifying Headlight And Taillight System Components Location
G03376855Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
