Front A/C Control Panel (With Navigation System)

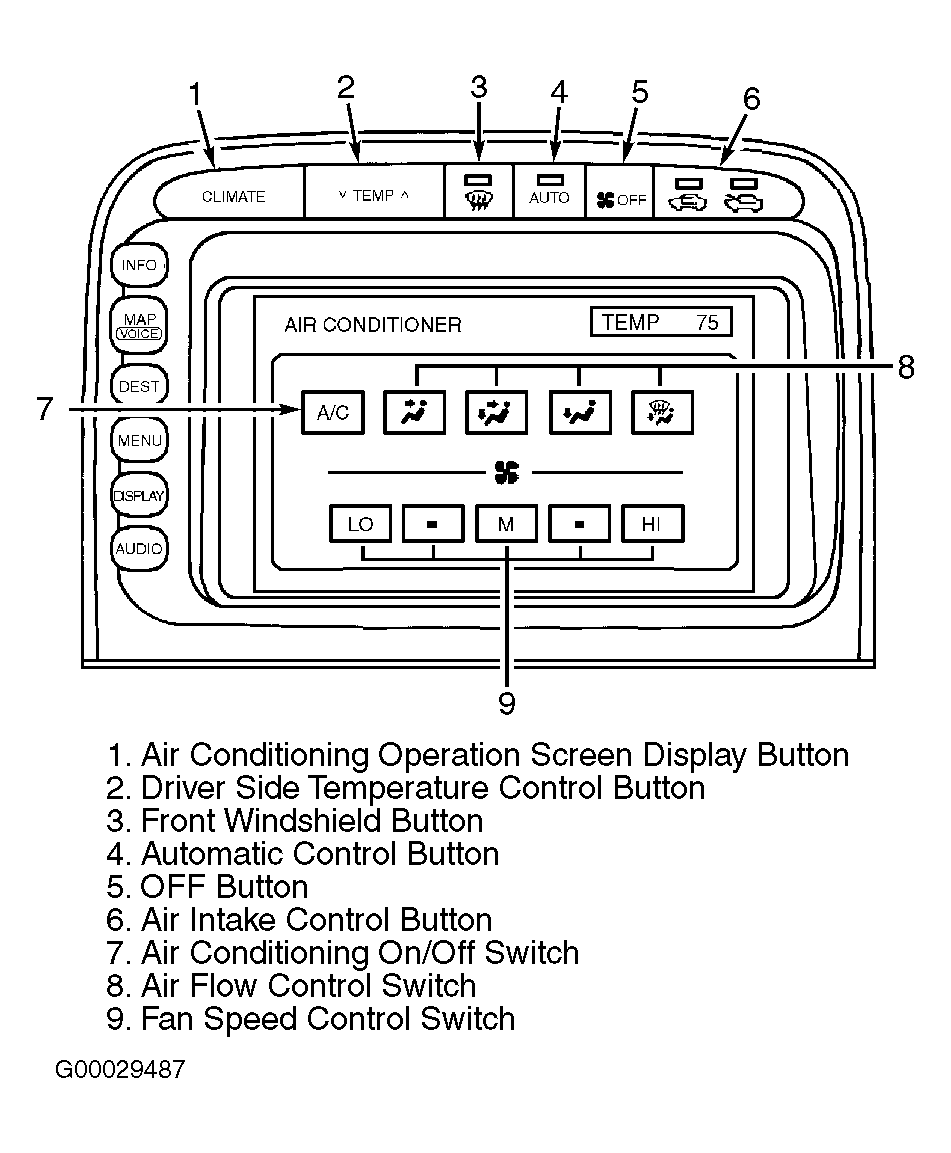

A/C functions are controlled by push-button controls, A/C AUTO switch, A/C on-off switch, temperature control button, and navigation display touch screen. See Fig 1. A/C ECU is located in center of instrument panel. A/C controls operate air supply selection (fresh or recirculated air), mode selection, temperature selection and blower motor speeds.
