Problem Symptoms Table

WARNING: This page is about a different car, the 2004 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.

COMMUNICATION STOP MODE TABLE

Check that there is no open circuit in the CAN main bus line, short between the lines, or short to +B in the "CHECK CAN BUS LINE" (see CHECK CAN BUS LINE ). Select "BUS CHECK" on the hand-held tester via the CAN VIM (see DIAGNOSIS SYSTEM ).
Check the communication stop mode of the ECUs or sensors not displayed among the following: "ENGINE", "ABS/VSC/TRAC", "STEERING SENSOR", "YAW/DECELERAT", "EPS", "BODY/GATEWAY", "HYBRID CONTROL" OR "HV BATTERY".

NOTE:

Systems using the CAN communication system differ according to optional settings. Check which ECUs or sensors are installed on the vehicle.
Non-installed ECUs or sensors are not displayed. Be careful not to consider that they are in communication stop mode.
If 2 or more ECUs or sensors are not displayed on the hand-held tester via the CAN VIM, perform troubleshooting for communication stop mode for each undisplayed ECU or sensor. (Either side of the CAN bus lines may be open.)

PROBLEM SYMPTOM REFERENCE

Symptom	Inspection Item	Customization
"HYBRID CONTROL" is not displayed on the hand-held tester via CAN VIM.	HYBRID VEHICLE CONTROL ECU COMMUNICATION STOP MODE	Applicable to all vehicles
"ABS/VSC/TRAC" is not displayed on the hand-held tester via CAN VIM.	SKID CONTROL ECU COMMUNICATION STOP MODE	Applicable to all vehicle
"STEERING SENSOR" is not displayed on the hand-held tester via CAN VIM.	STEERING SENSOR COMMUNICATION STOP MODE	Vehicle with enhanced VSC (VSC warning lamp is installed in the combination meter)
"YAW/DECELERAT" is not displayed on the hand-held tester via CAN VIM.	YAW RATE SENSOR COMMUNICATION STOP MODE	Vehicle with enhanced VSC (VSC warning lamp is installed in the combination meter)
"EPS" is not displayed on the hand-held tester via CAN VIM.	POWER STEERING ECU COMMUNICATION STOP MODE	Applicable to all vehicle
"BODY/GATEWAY" is not displayed on the hand-held tester via CAN VIM.	GATEWAY ECU COMMUNICATION STOP MODE	Applicable to all vehicles
"ENGINE" is not displayed on the hand-held tester via CAN VIM.	ECM ECU COMMUNICATION STOP MODE	Applicable to all vehicles
"HV BATTERY" is not displayed on the hand-held tester via CAN VIM.	BATTERY ECU COMMUNICATION STOP MODE	Applicable to all vehicles

DTC COMBINATION TABLE
1. Perform troubleshooting according to the combination of DTCs output.

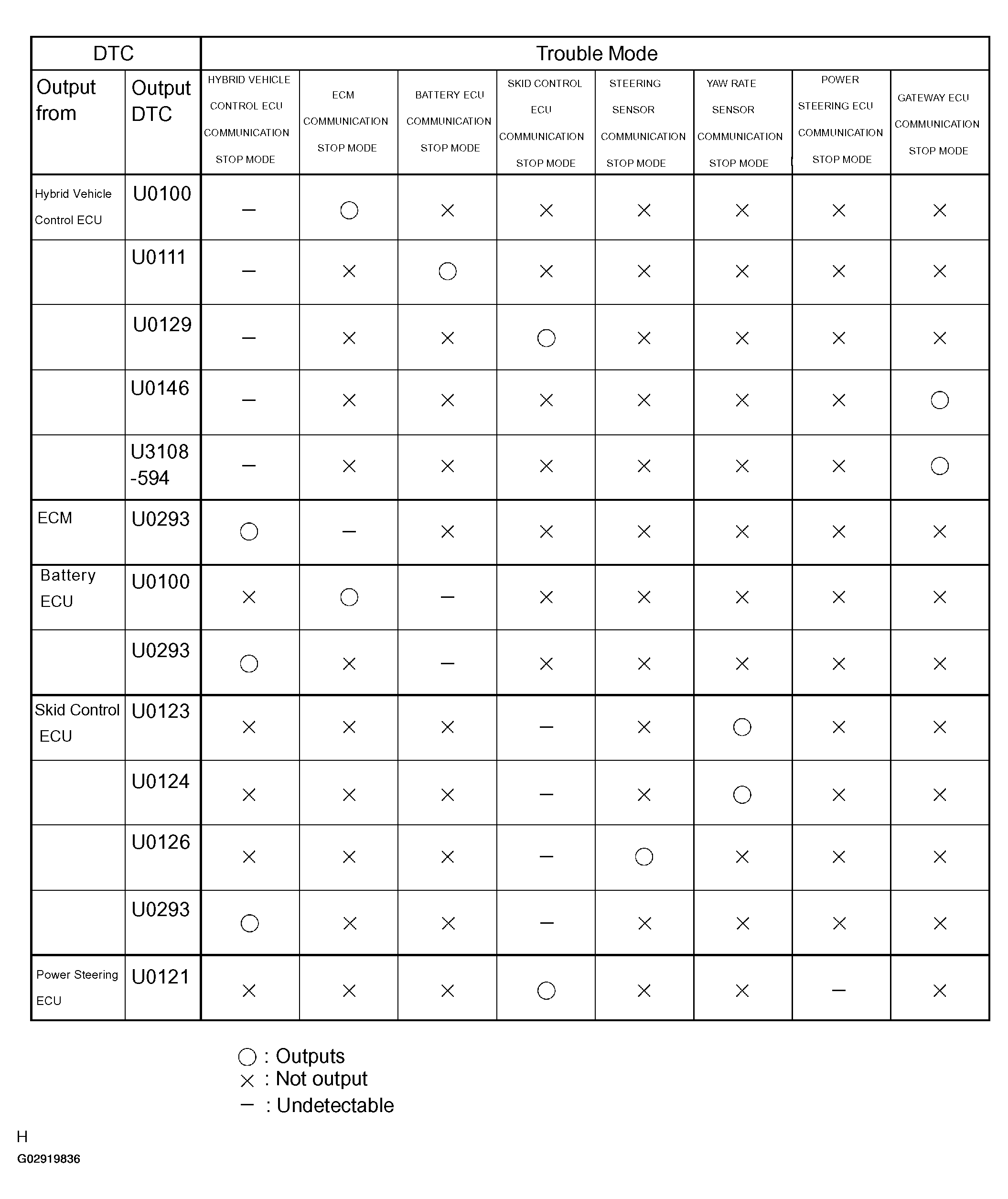

Fig 1: DTC Output Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NOTE:
- If U0146 or P3108-594 is output, check the "MULTIPLEX COMMUNICATION SYSTEM" (see CHECK CAN BUS LINE ) before proceeding to "GATEWAY ECU COMMUNICATION STOP MODE".
- If U0100-211 or U0111-208 is output separately by the hybrid control ECU, refer to "HYBRID CONTROL SYSTEM" (see DTC U0100/211 LOST COMMUNICATION WITH ECM/PCM ).
HINT:
- HYBRID VEHICLE CONTROL ECU COMMUNICATION STOP MODE: see HYBRID VEHICLE CONTROL ECU COMMUNICATION STOP MODE .
- ECM COMMUNICATION STOP MODE: see ECM COMMUNICATION STOP MODE .
- BATTERY ECU COMMUNICATION STOP MODE: see BATTERY ECU COMMUNICATION STOP MODE .
- SKID CONTROL ECU COMMUNICATION STOP MODE: see SKID CONTROL ECU COMMUNICATION STOP MODE .
- STEERING SENSOR COMMUNICATION STOP MODE: see STEERING SENSOR COMMUNICATION STOP MODE .
- YAW RATE SENSOR COMMUNICATION STOP MODE: see YAW RATE SENSOR COMMUNICATION STOP MODE .
- POWER STEERING ECU COMMUNICATION STOP MODE: see POWER STEERING ECU COMMUNICATION STOP MODE .
- GATEWAY ECU COMMUNICATION STOP MODE: see GATEWAY ECU COMMUNICATION STOP MODE .
