Circuit Description

WARNING: This page is about a different car, the 2004 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.

The HV control ECU performs self-checks to detect an internal operating malfunction in the ECU.

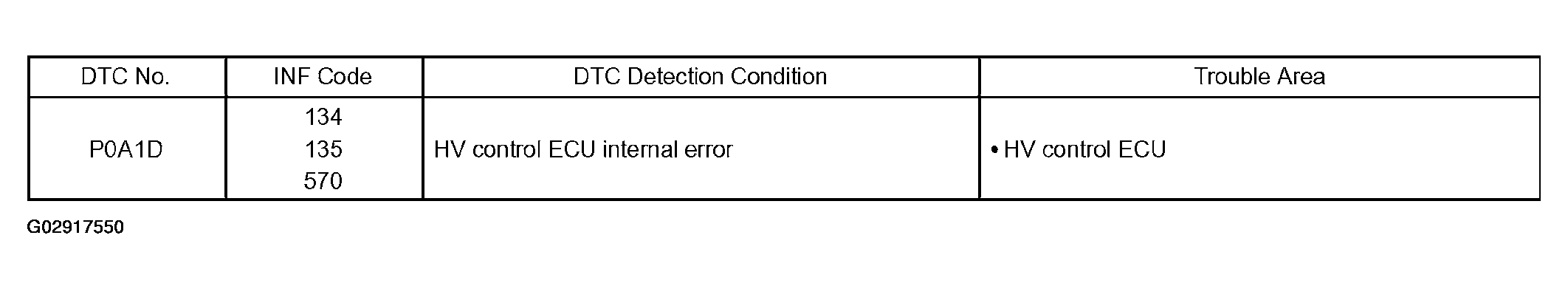

Fig 1: DTC P0AAID Circuit Description
G02917550Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
