Circuit Description

WARNING: This page is about a different car, the 2004 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.

Based on a malfunction signal received from the battery ECU, the HV control ECU alerts the driver and effects fail-safe control.

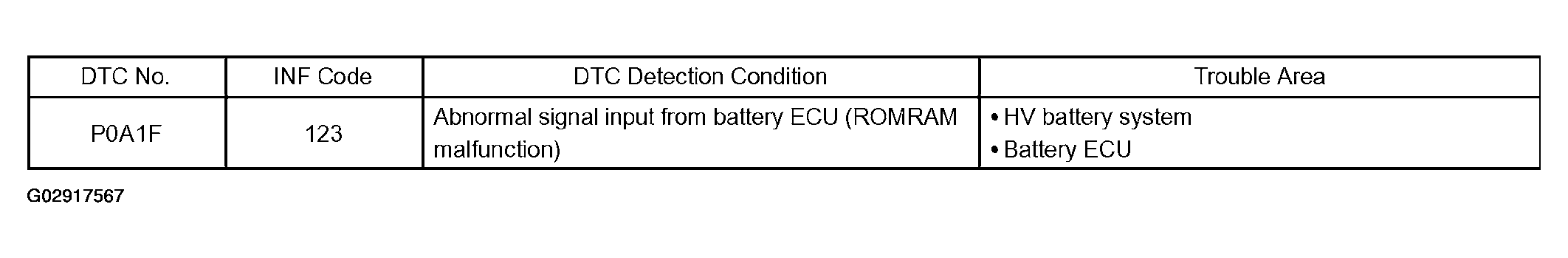

Fig 1: DTC P0A1F/123 Circuit Description
G02917567Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
