Stop Light Switch Circuit

CIRCUIT DESCRIPTION

This circuit detects the conditions of the stop light switch.

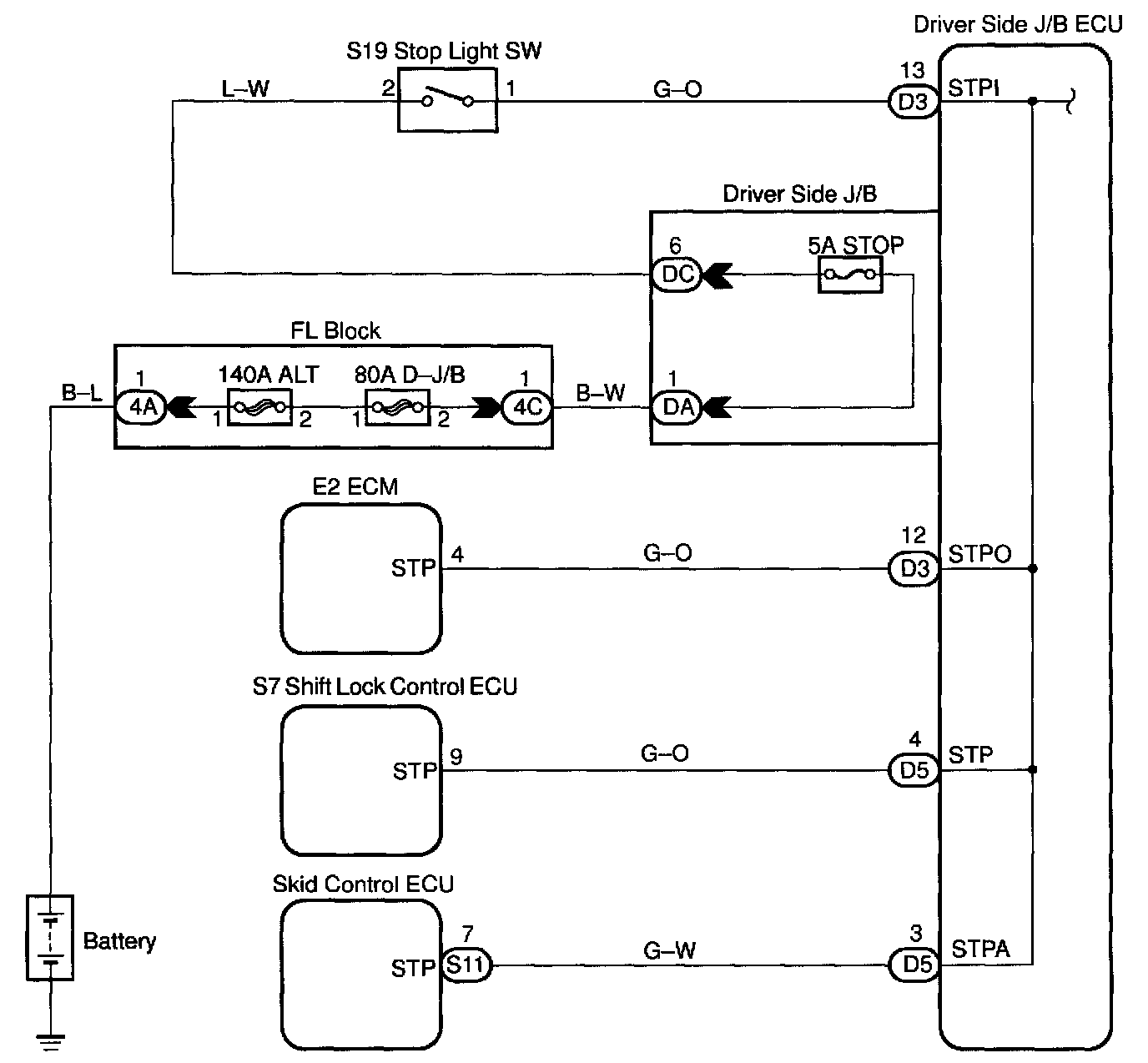

Wiring Diagram:

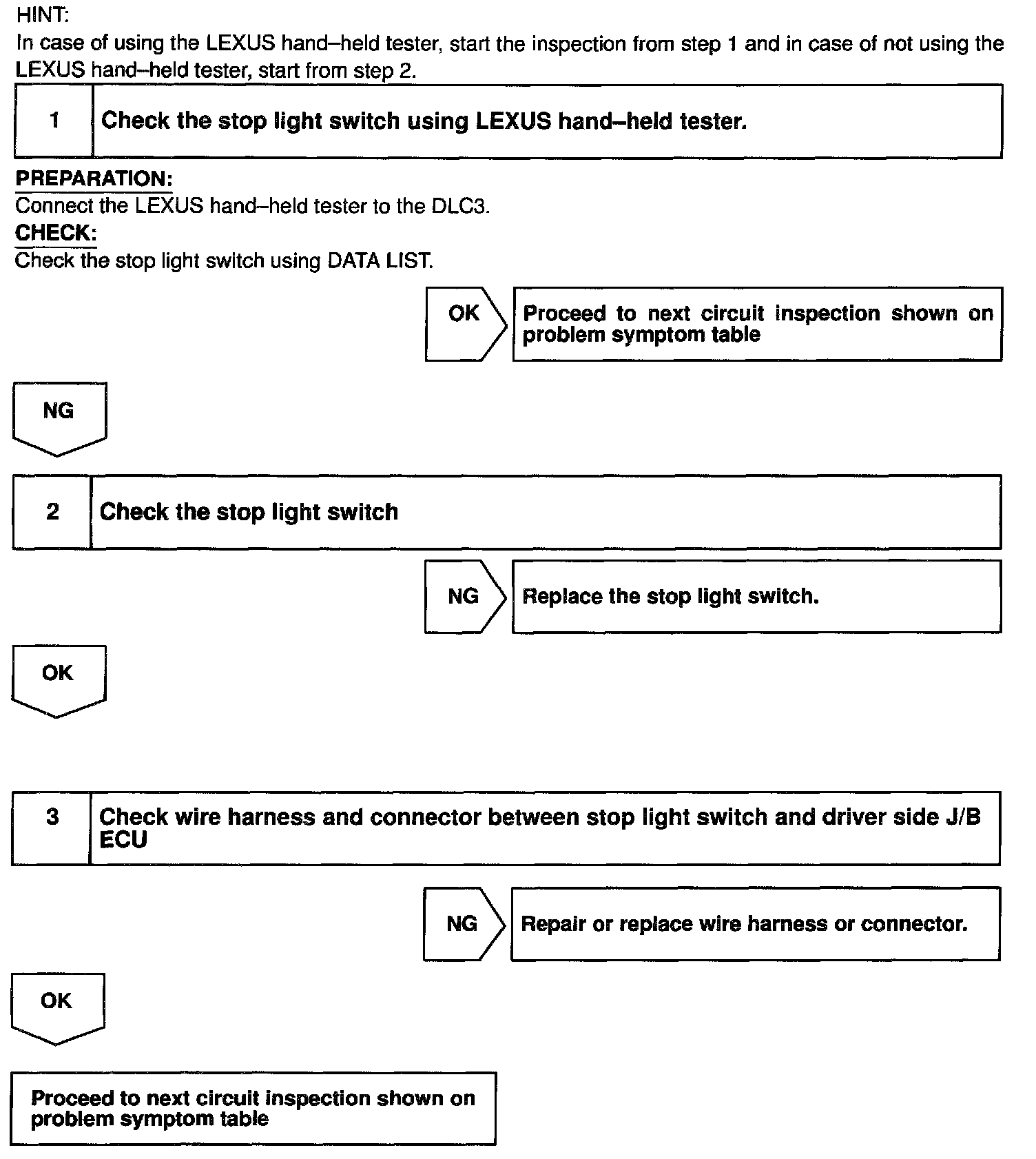

Step 1 - 3:




INSPECTION PROCEDURE
