GENERATOR (SC1 Type): Components

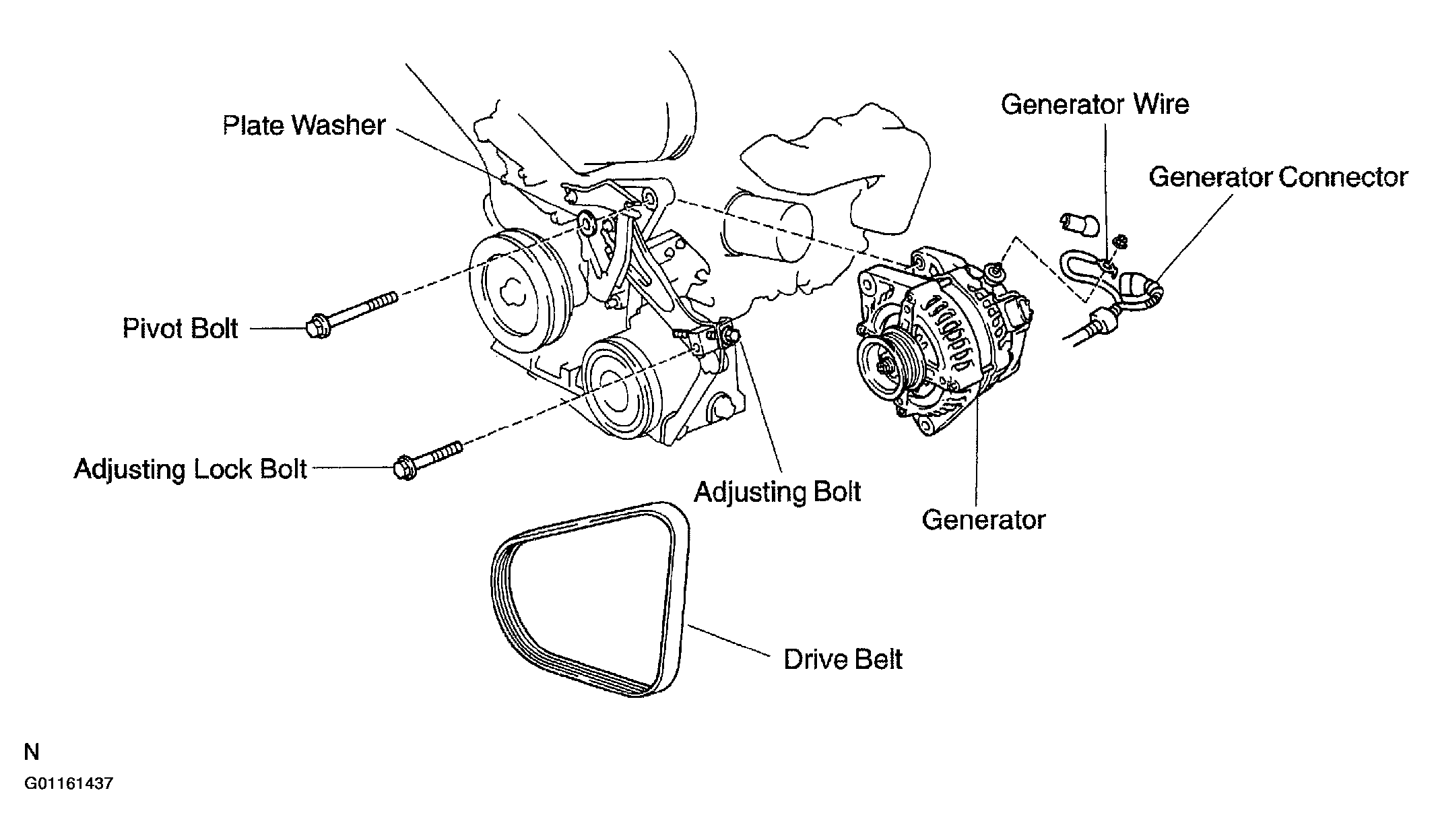

Fig 1: Displaying Generator (SC1 Type) Components (1 Of 2)
G01161437Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

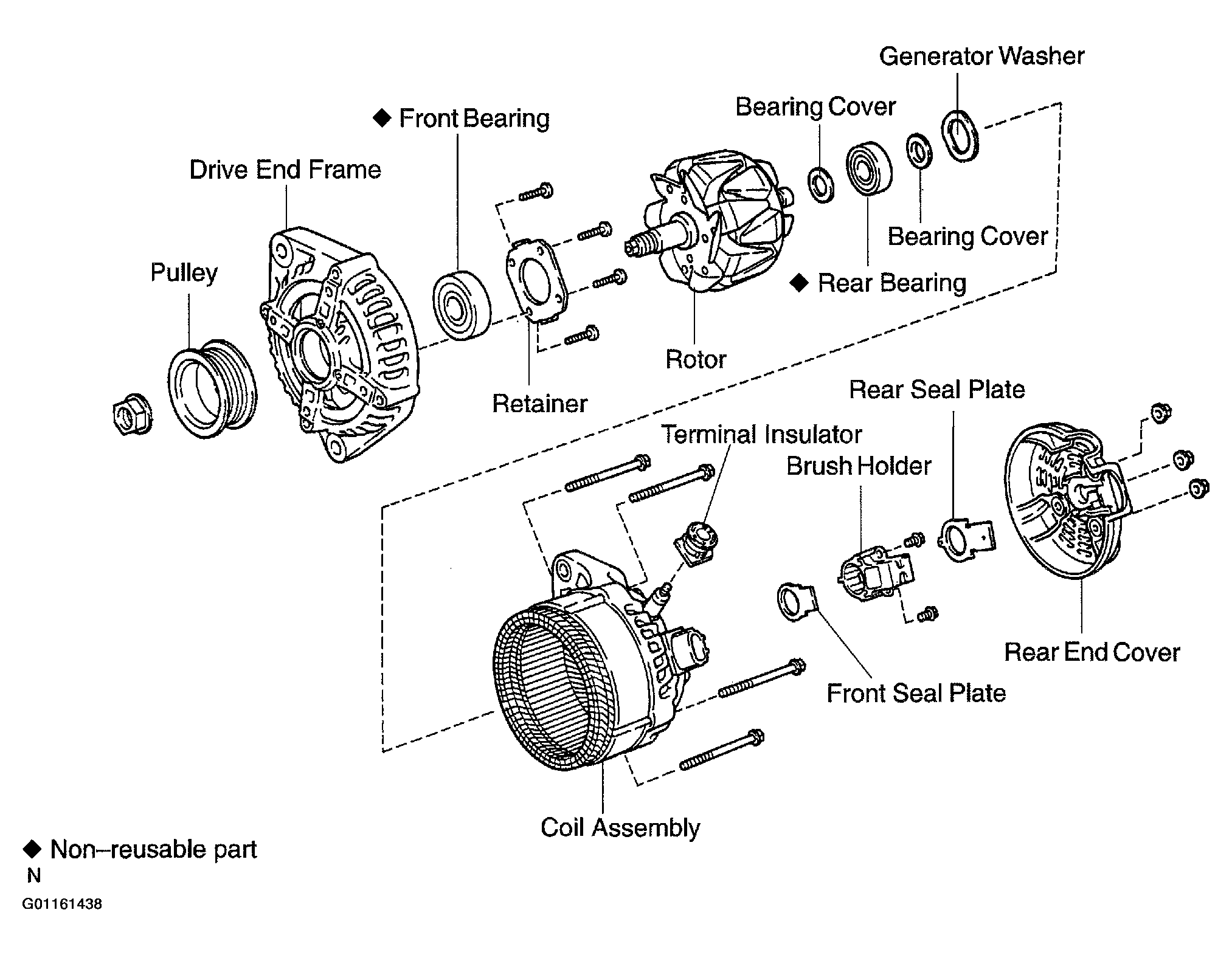

Fig 2: Displaying Generator (SC1 Type) Components (2 Of 2)
G01161438Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
