Wireless Door Lock Control System: Inspection

INSPECT WIRELESS DOOR LOCK BUZZER CONTROLLER
1. Operating the controller, inspect the continuity and resistance between terminals 2 and 3.
  1. Normal condition: Continuity and resistance change, as shown in the illustration below.

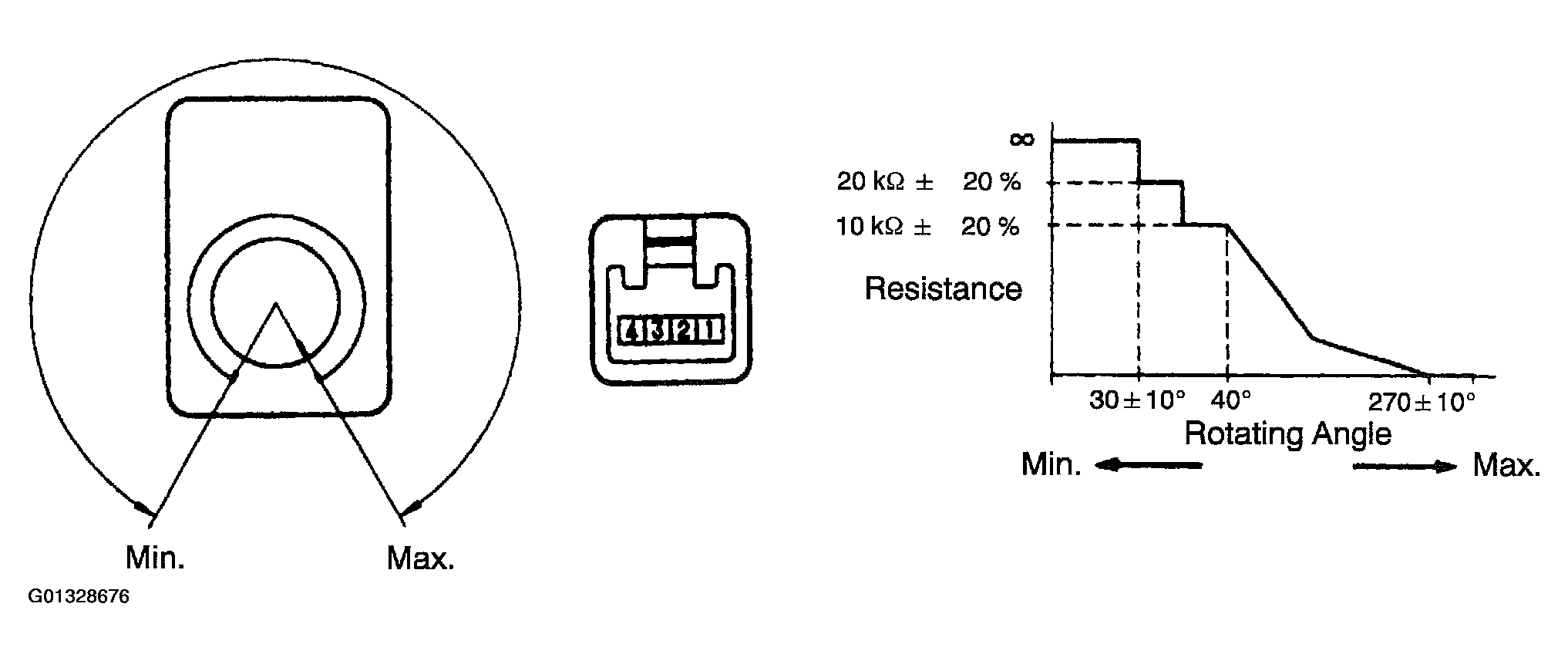

Fig 1: Identifying Normal Condition: Continuity And Resistance Change
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
