Problem Symptoms Table

Warning Lights and Buzzer:

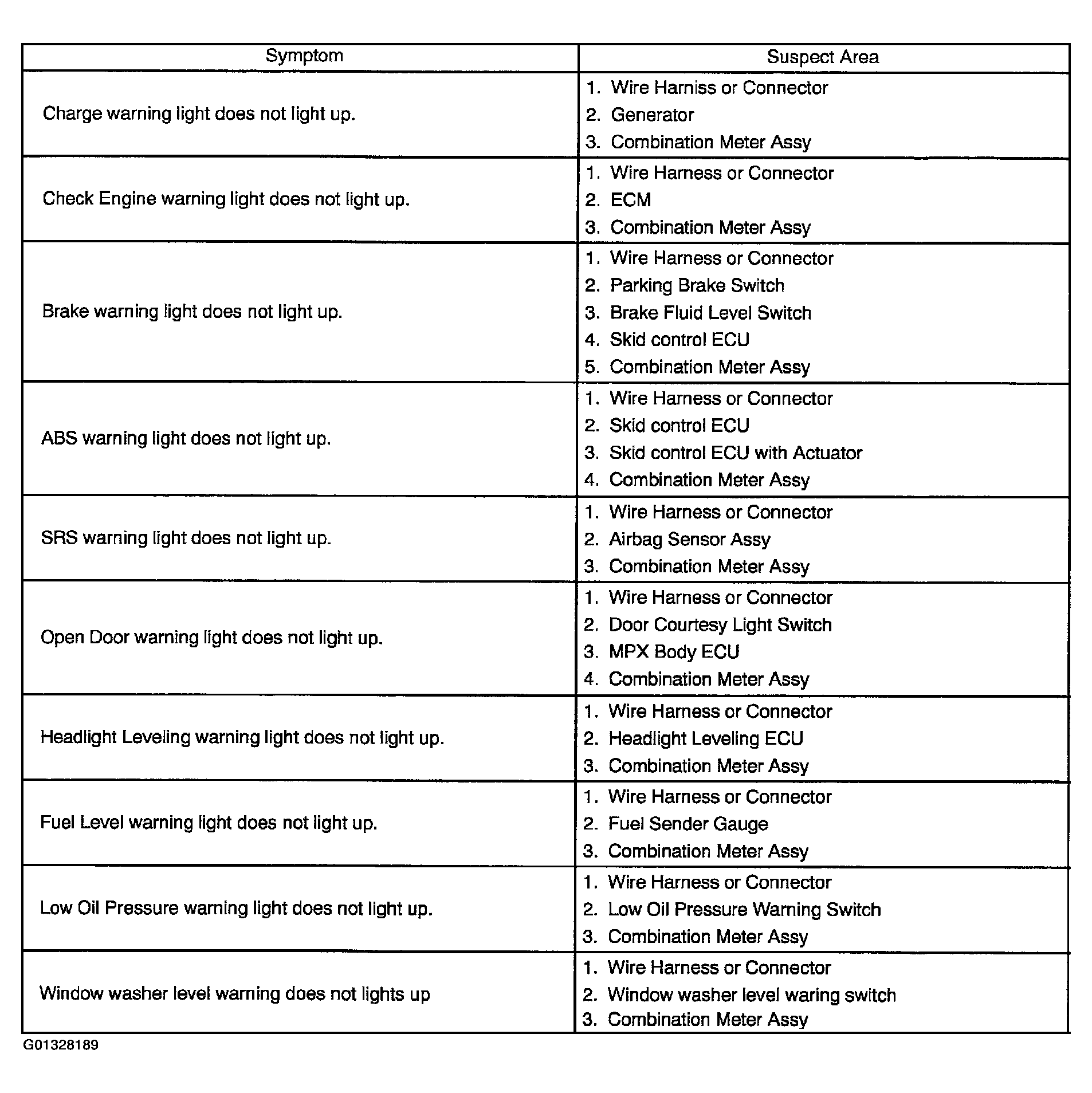

Fig 1: Problem Symptoms Chart (Warning Lights And Buzzer)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Indicator Lights:

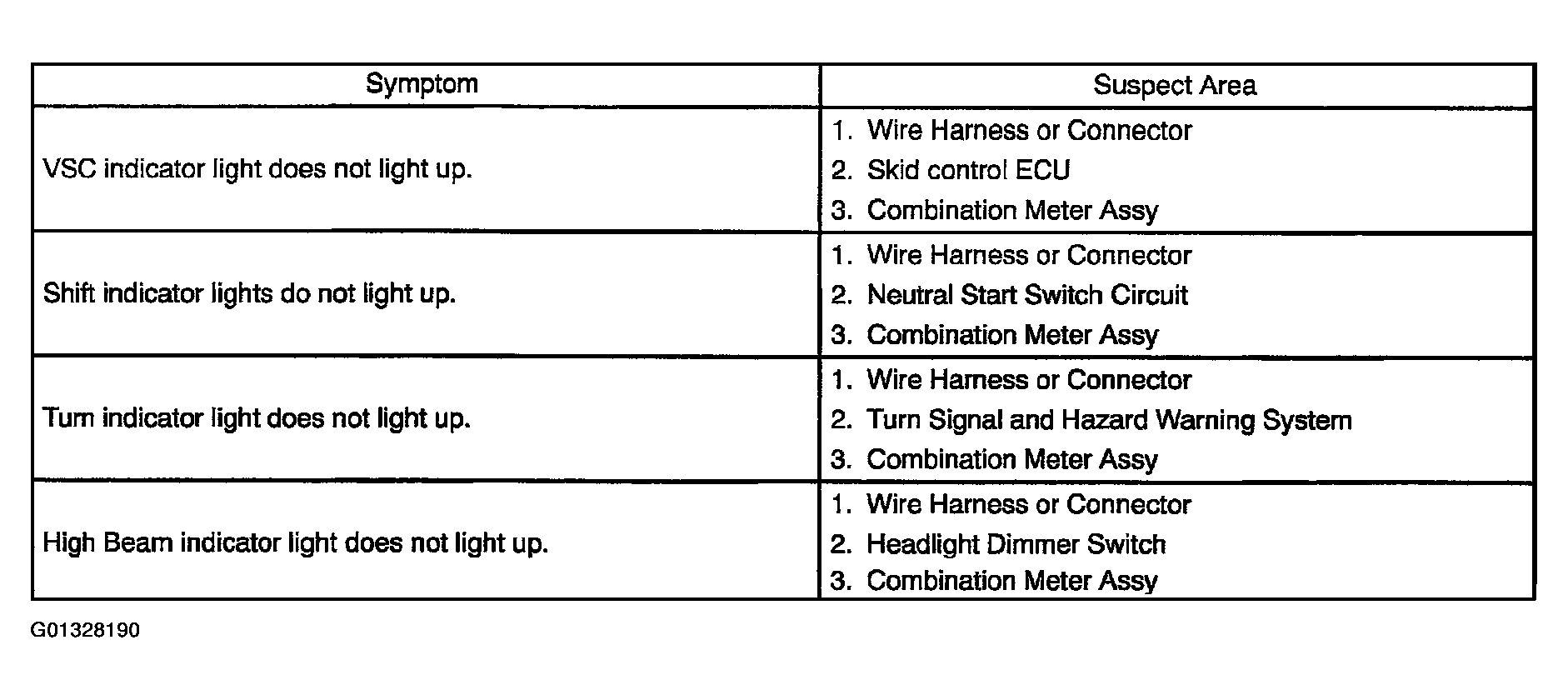

Fig 2: Problem Symptoms Chart (Indicator Lights) (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

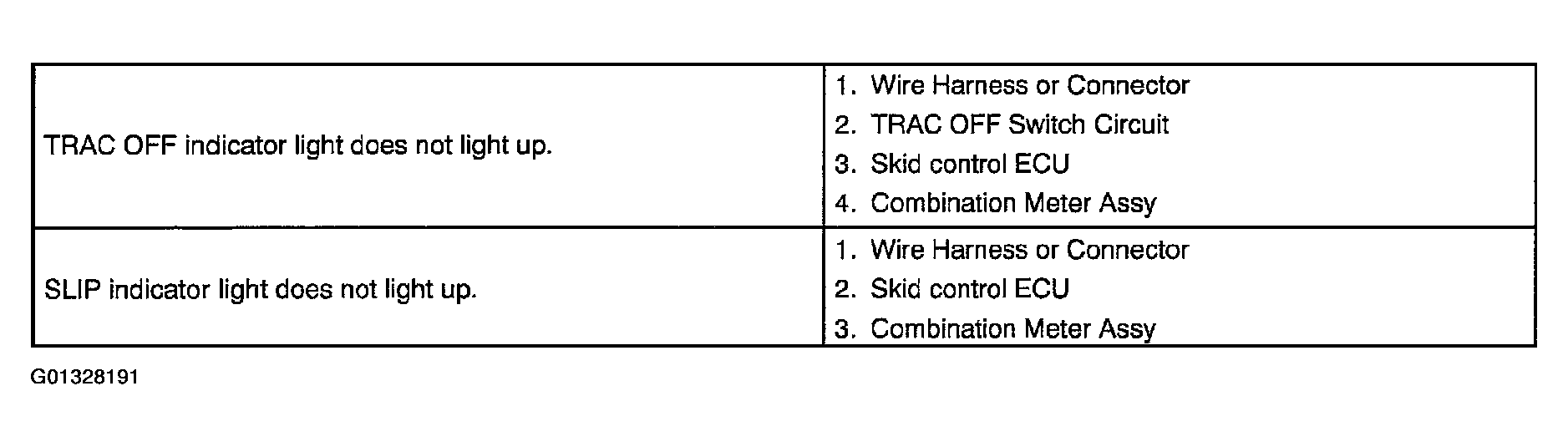

Fig 3: Problem Symptoms Chart (Indicator Lights) (2 Of 2)

Meter Gauges:

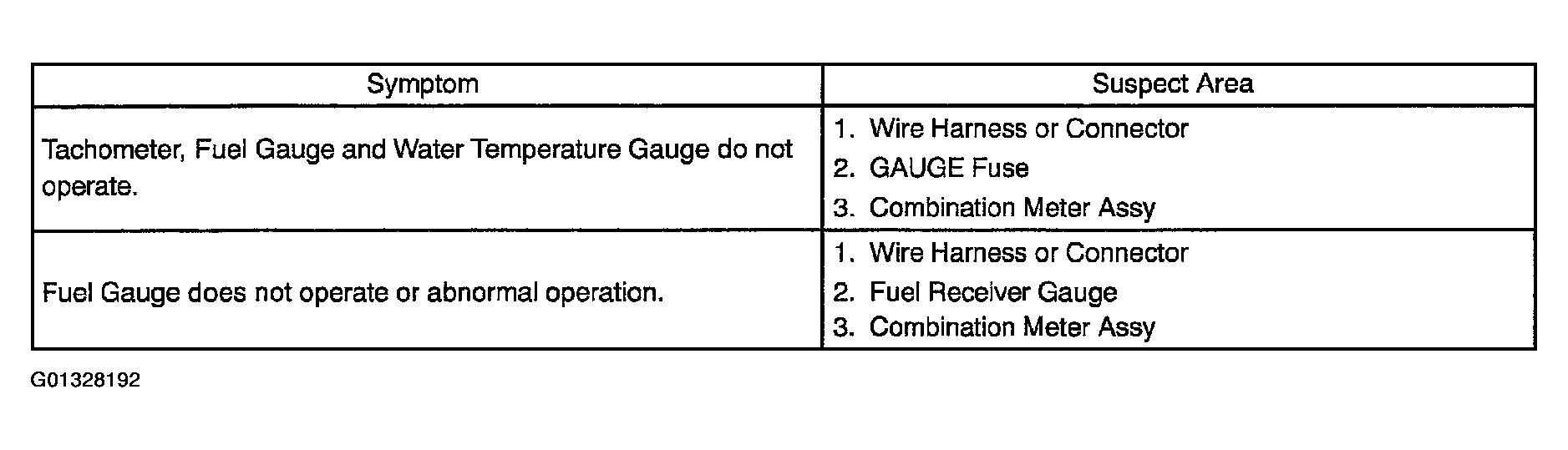

Fig 4: Problem Symptoms Chart (Meter Gauges)
