Cylinder Block Specifications
WARNING: This page is about a different car, the 2002 Lexus ES 300. However, it is still accessible from the selected car via links, so may be relevant.
CYLINDER BLOCK
| Application | In. (mm) | |||
|---|---|---|---|---|
| Cylinder Bore | ||||
| Standard Diameter | 3.4449-3.4453 (87.500-87.511) | |||
| Maximum Diameter | 3.4457 (87.520) | |||

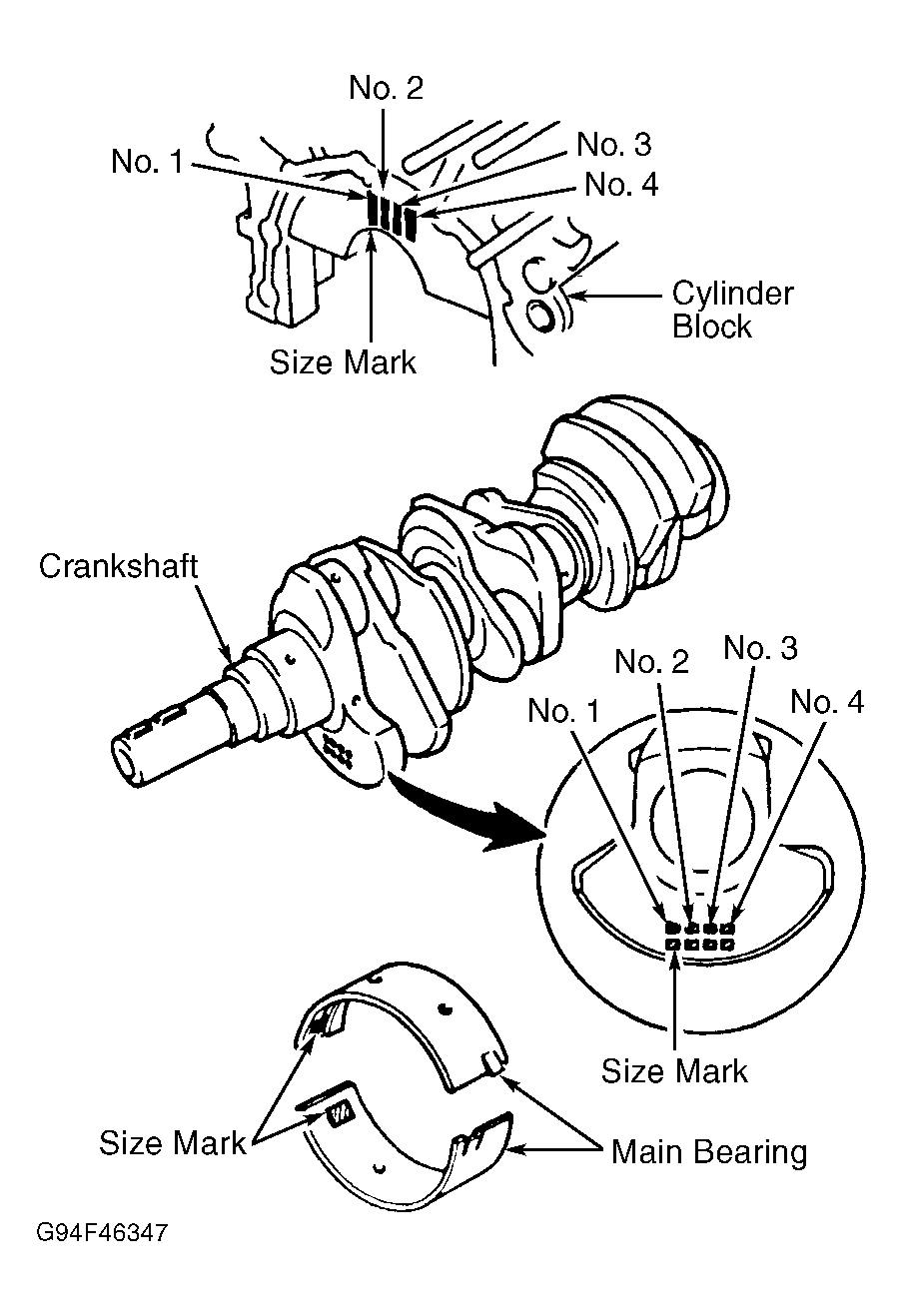

| Main Bearing Bore Inside Diameter (1) | ||||
| Size Mark "00" | 2.59842 (66.0000) | |||
| Size Mark "01" | 2.59846 (66.0010) | |||
| Size Mark "02" | 2.59850 (66.0020) | |||
| Size Mark "03" | 2.59854 (66.0030) | |||
| Size Mark "04" | 2.59858 (66.0040) | |||
| Size Mark "05" | 2.59862 (66.0050) | |||
| Size Mark "06" | 2.59866 (66.0060) | |||
| Size Mark "07" | 2.59870 (66.0070) | |||
| Size Mark "08" | 2.59873 (66.0080) | |||
| Size Mark "09" | 2.59877 (66.0090) | |||
| Size Mark "10" | 2.59881 (66.0100) | |||
| Size Mark "11" | 2.59885 (66.0110) | |||
| Size Mark "12" | 2.59889 (66.0120) | |||
| Size Mark "13" | 2.59893 (66.0130) | |||
| Size Mark "14" | 2.59897 (66.0140) | |||
| Size Mark "15" | 2.59901 (66.0150) | |||
| Size Mark "16" | 2.59904 (66.0160) | |||
| Maximum Deck Warpage | .0028 (.071) | |||
|
||||
