Seat Belt: Location

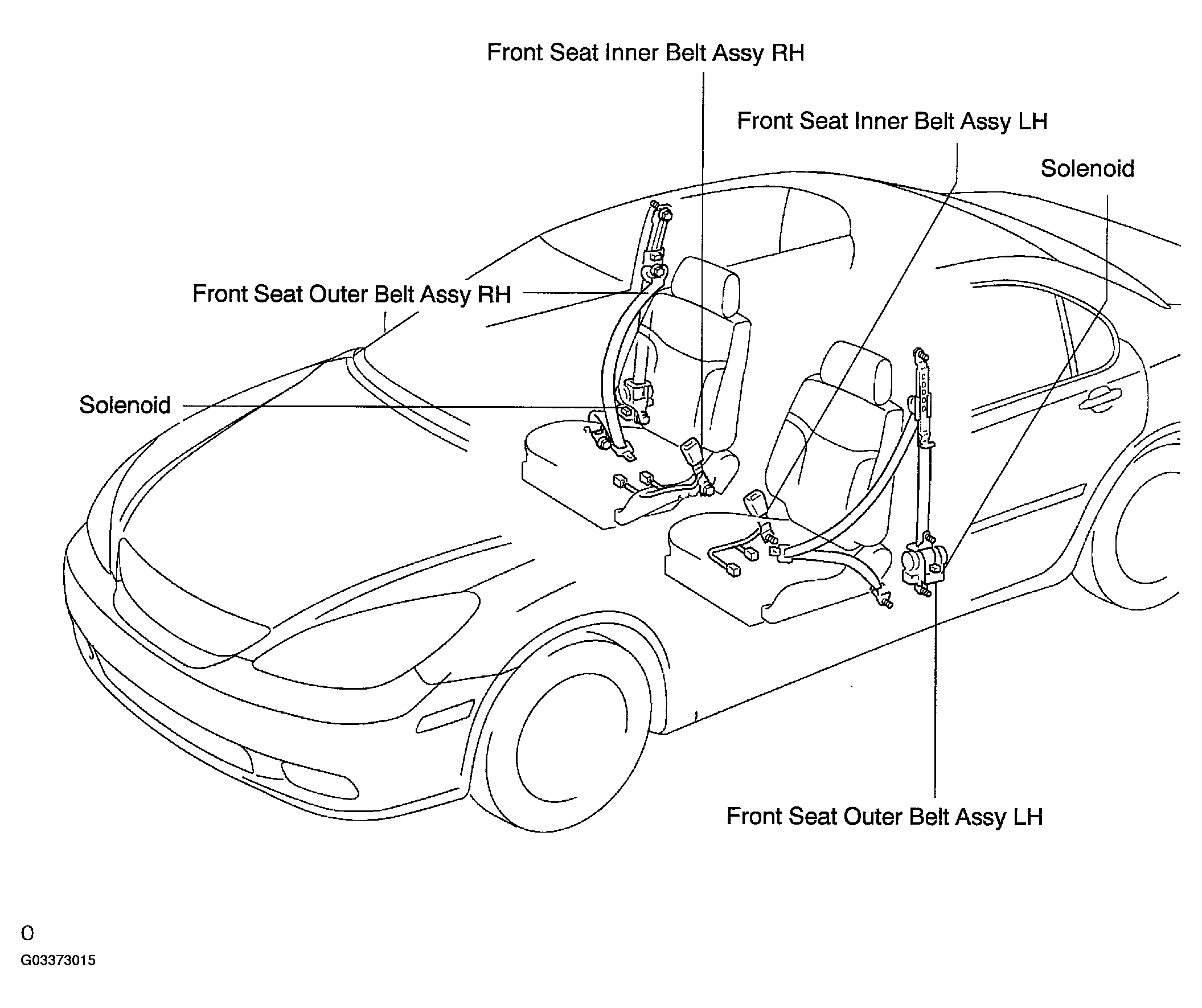

Fig 1: Identifying Seat Belt Tension Reducer System Components Location
G03373015Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
