5. Setting Compass

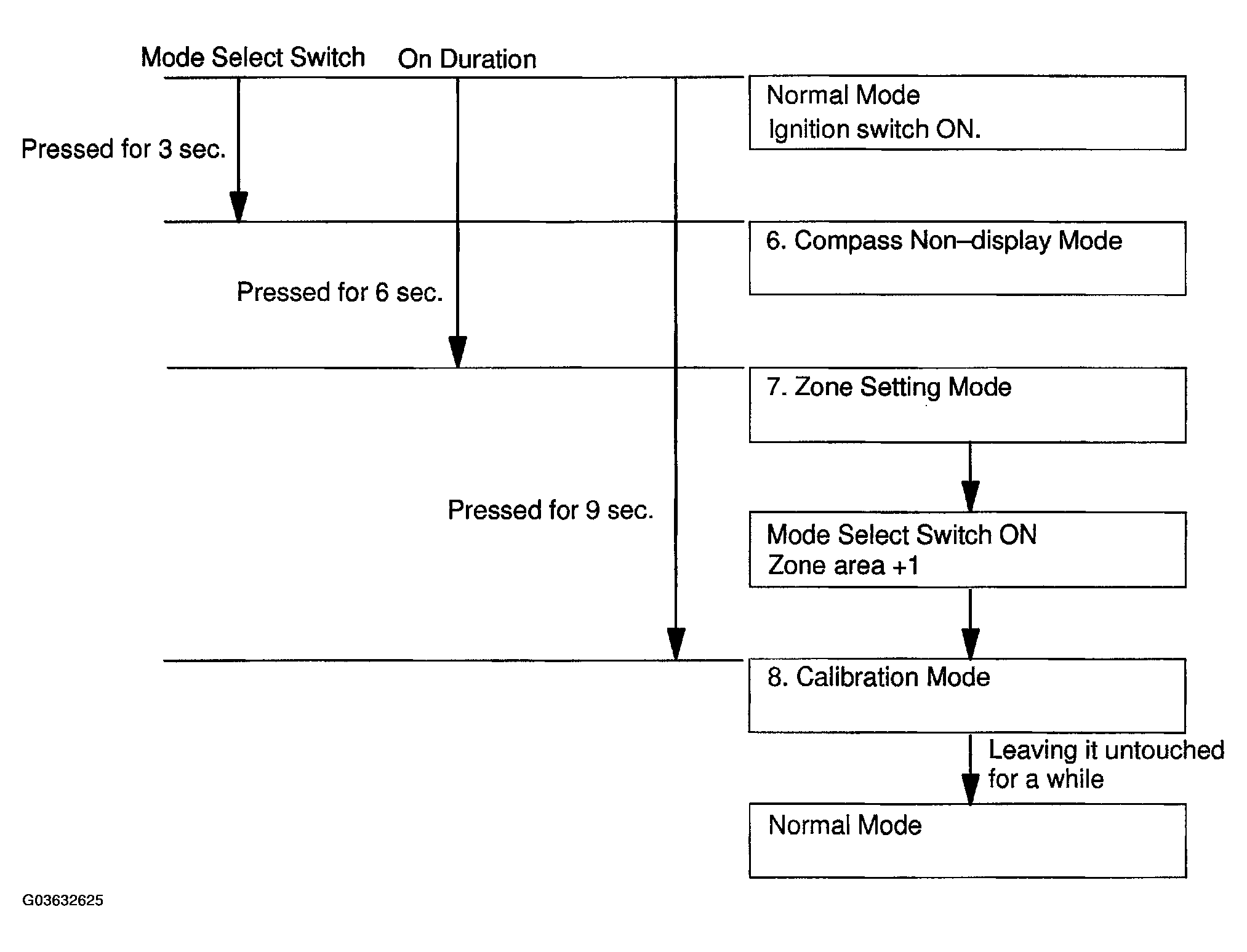

Fig 1: Setting Flow Compass

G03632625

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
