Transfer Unit: Components

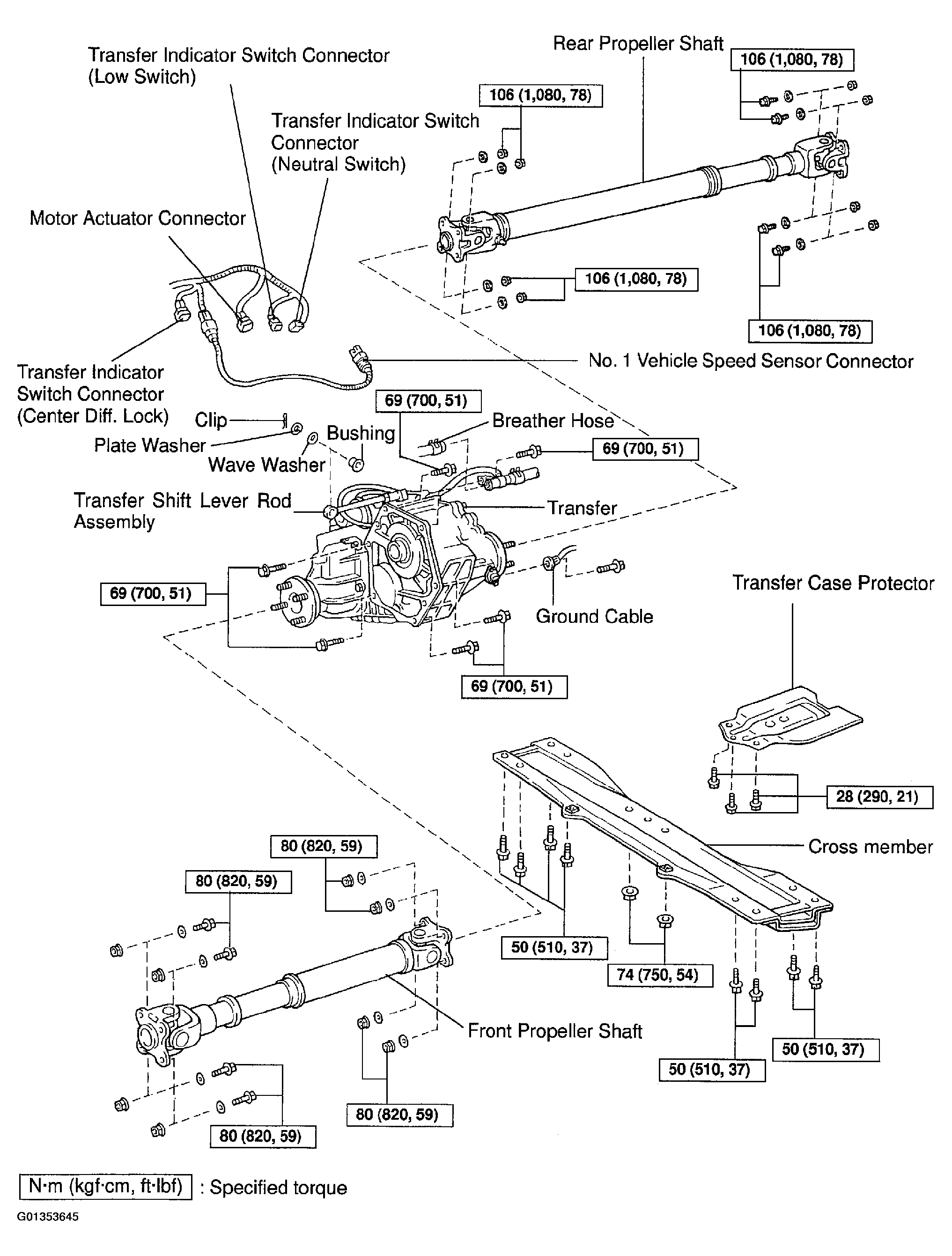

Fig 1: Identifying Transfer Unit Components

G01353645

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
