Fuel Lid: Components

Fig 1: Identifying Fuel Lid Components (1 Of 2)
G03382100Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

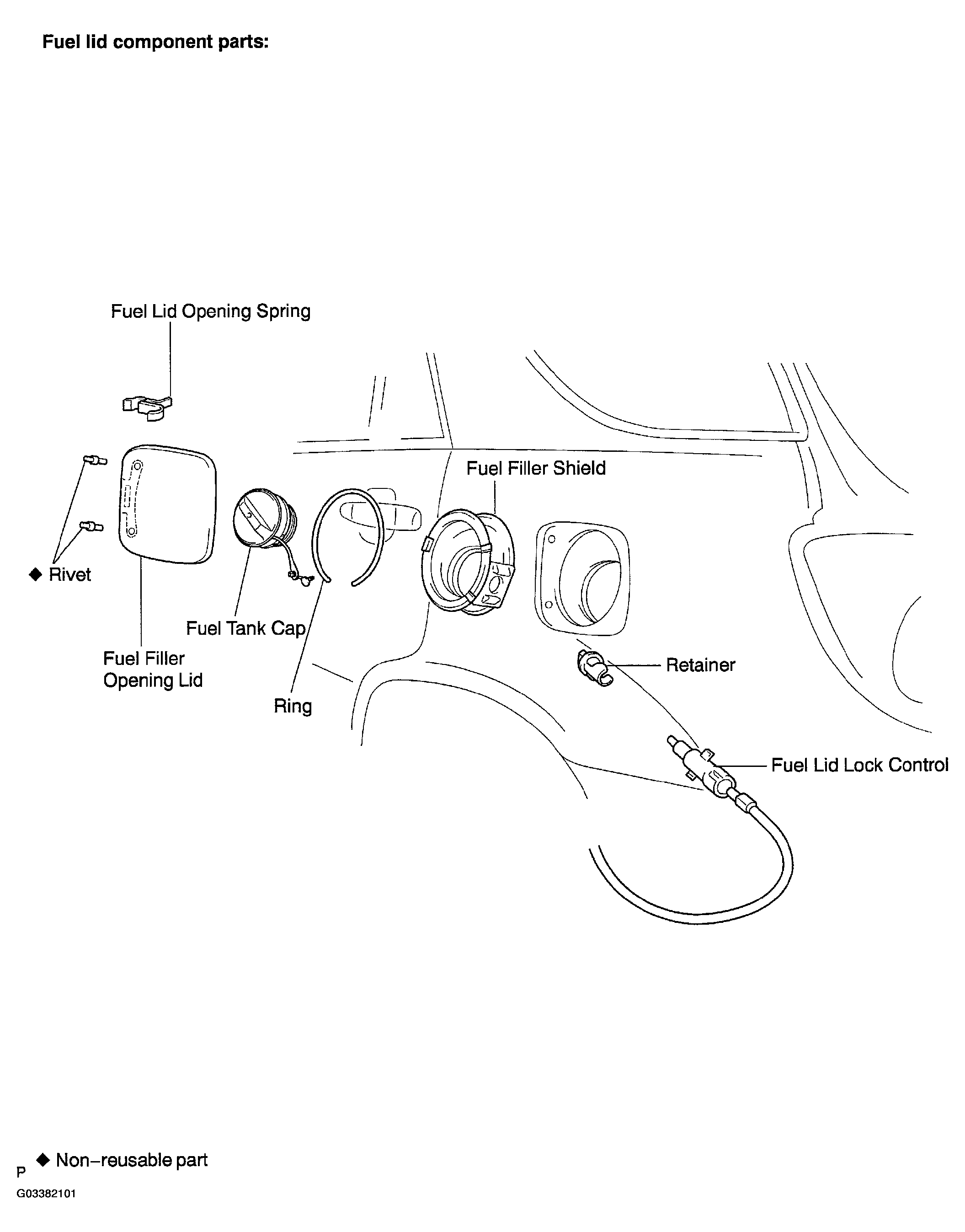

Fig 2: Identifying Fuel Lid Components (2 Of 2)
G03382101Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
