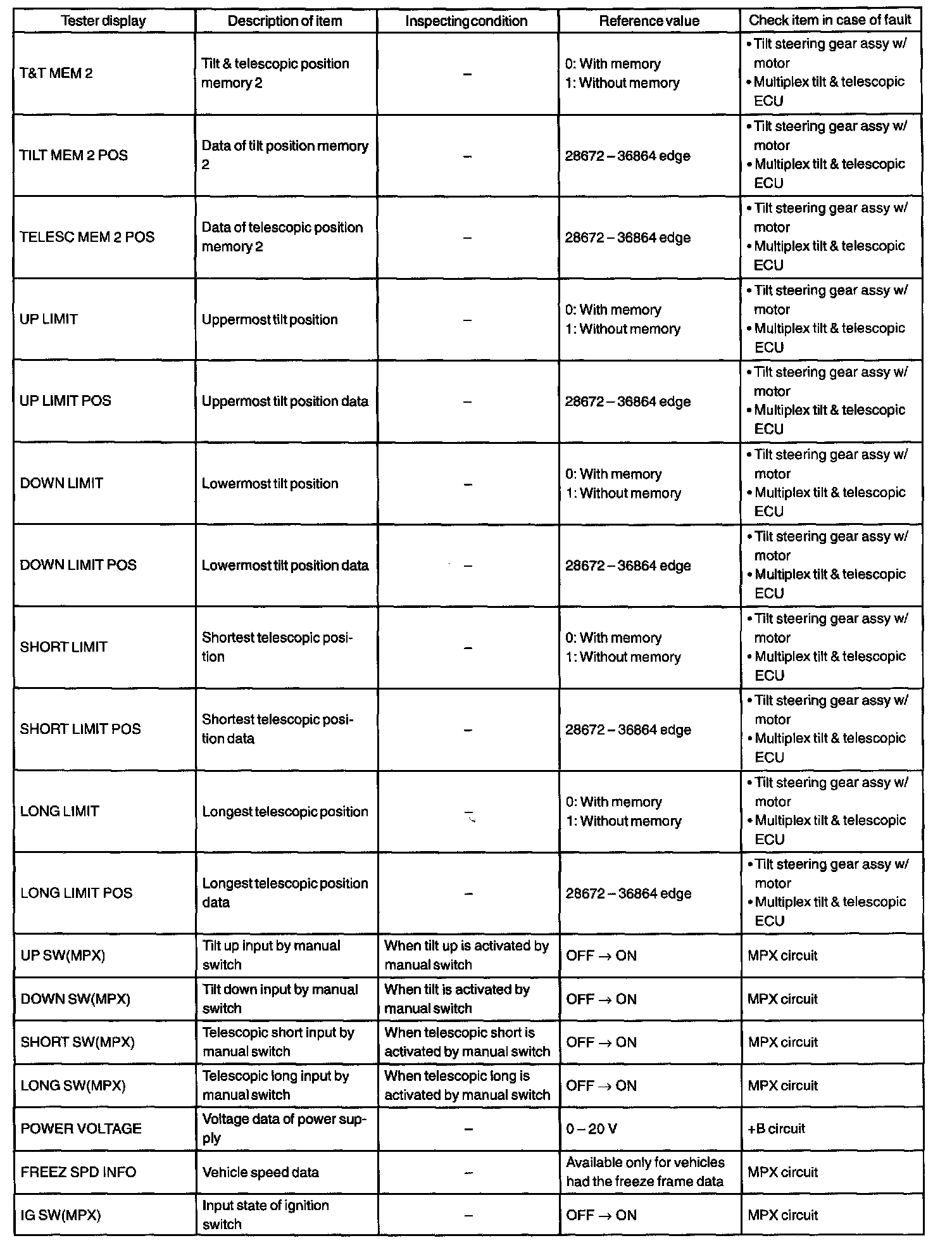

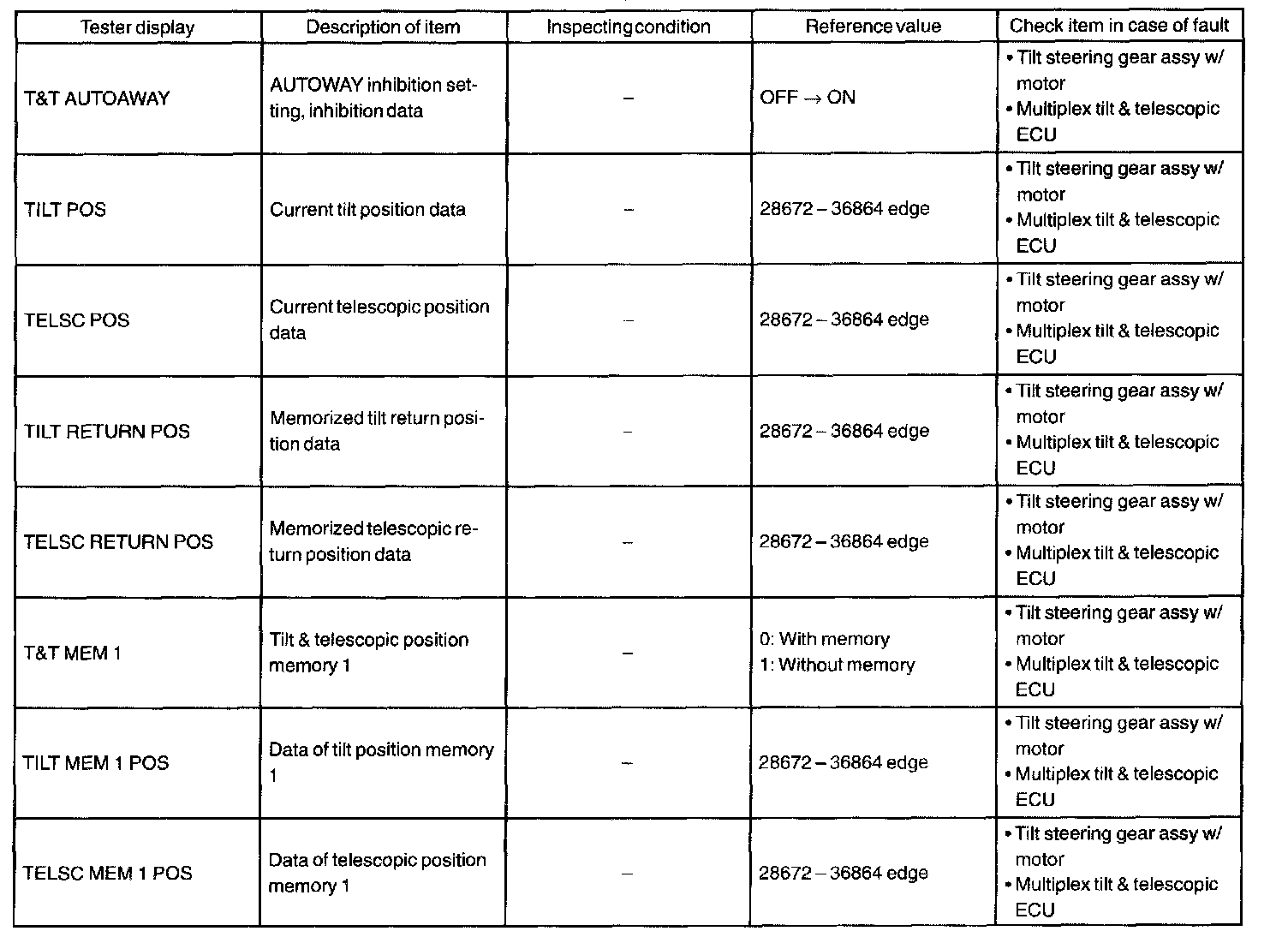

Reference Value of ECU Data

REFERENCE VALUE OF ECU DATA

Part 1:

Part 2:

Part 3:

a. Hook up the LEXUS hand-held tester to the DLC3.
b. Monitor the ECU data by following the prompts on the tester screen. Please refer to the LEXUS hand-held tester operator's manual for more information.
