On-Vehicle Inspection

  1. CHECK STEERING WHEEL FREEPLAY
    1. Stop the vehicle and face the tires straight ahead.
    2. Rock the steering wheel gently up and down with a finger lightly, check the steering wheel freeplay.

      Maximum freeplay: 30 mm (1.18 in.)

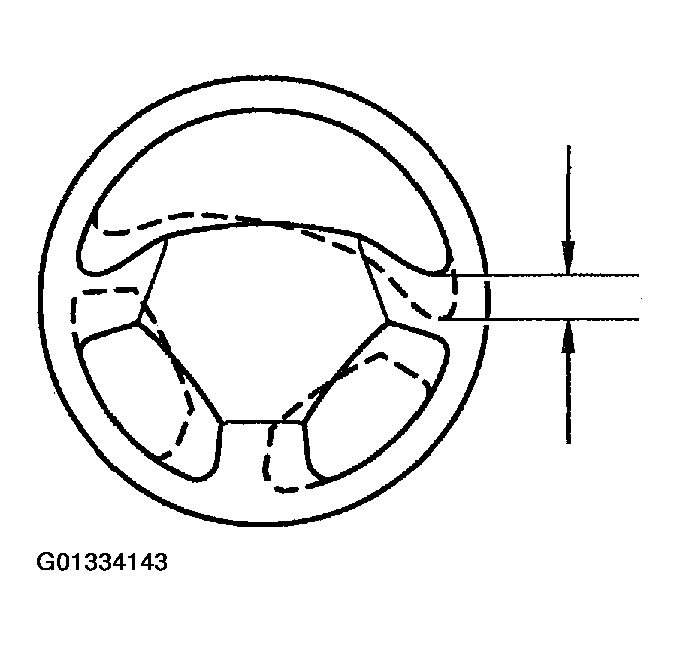

    Fig 1: Checking Steering Wheel Freeplay
    G01334143Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
