Repair and Diagnosis (Single Page)
>>
Engine Performance
>>
Testing & Diagnosis
>>
Engine (2JZ-GE) - Diagnostics
>>
Circuit Inspection
>>
DTC P2120: Throttle/Pedal Position Sensor/Switch "D" Circuit, DTC P2122: Throttle/Pedal Position Sensor/Switch "D" Circuit Low Input, DTC P2123: Throttle/Pedal Position Sensor/Switch "D" Circuit High Input
>>
Component Operating Range
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Component Operating Range

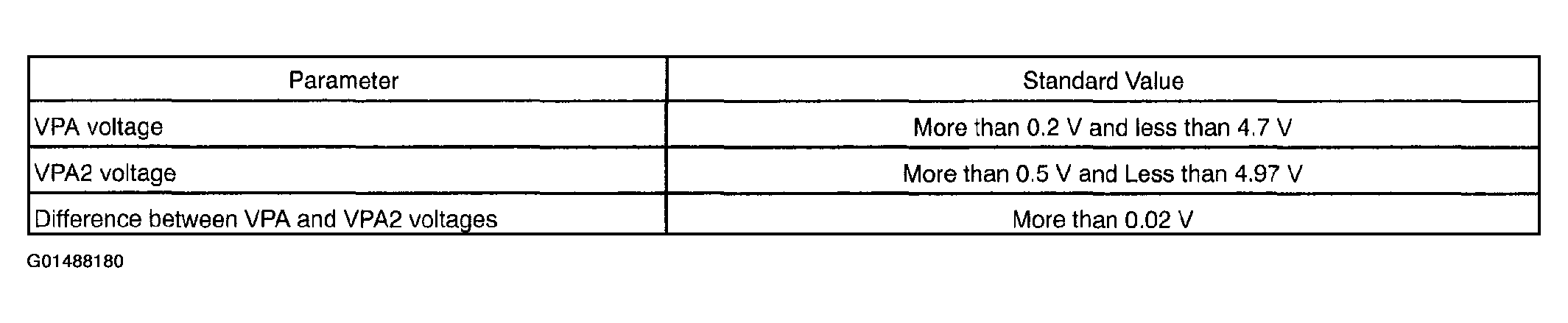

Fig 1: Component Operating Range Specifications Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
