DTC P2120: Throttle/Pedal Position Sensor/Switch "D" Circuit, DTC P2122: Throttle/Pedal Position Sensor/Switch "D" Circuit Low Input, DTC P2123: Throttle/Pedal Position Sensor/Switch "D" Circuit High Input: Wiring Diagram

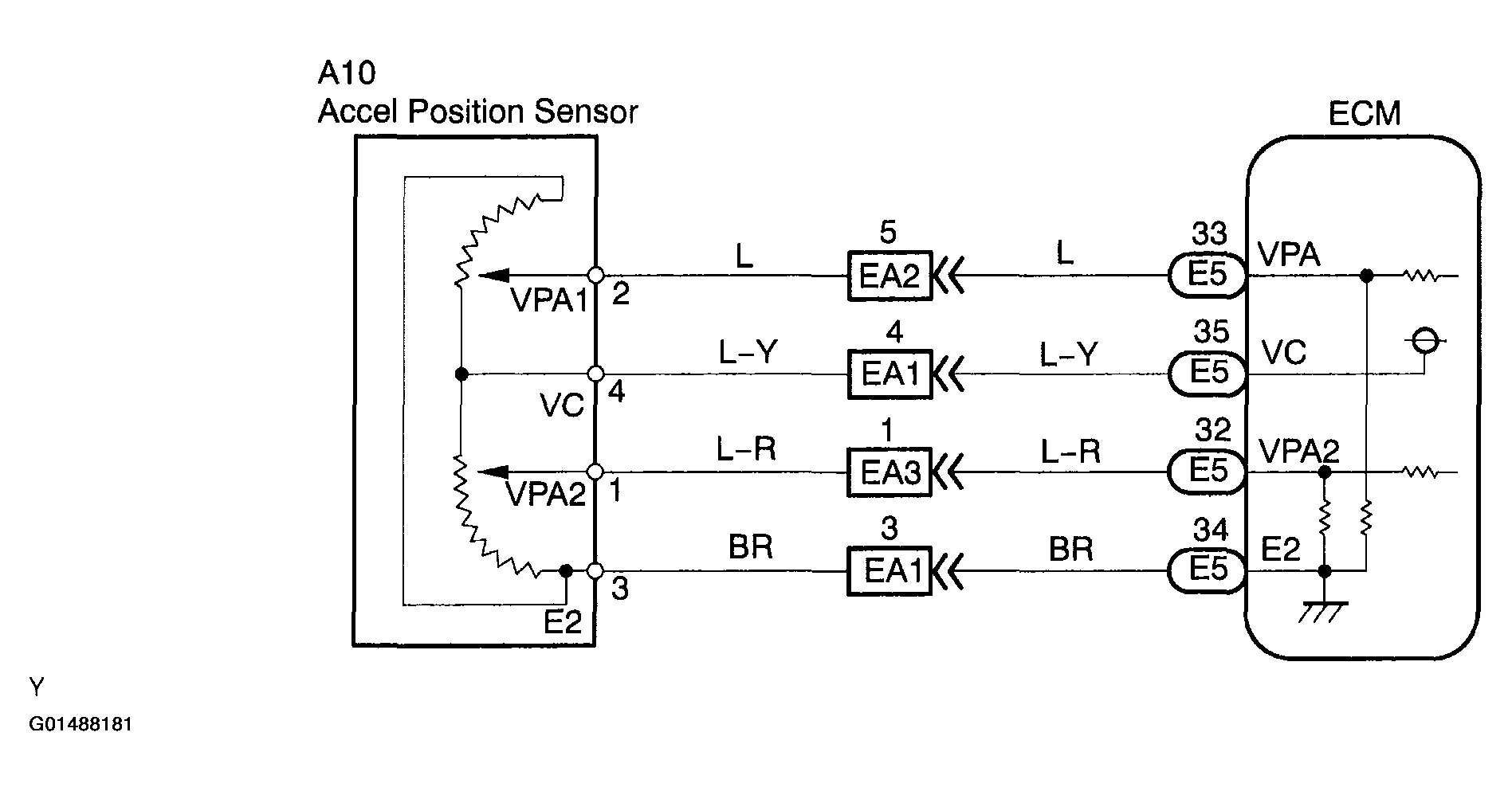

Fig 1: Accelerator Position Sensor Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
