Disc Player Changer Replacement

WARNING: This page is about a different car, the 2004 Lexus GX 470. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

COMPONENTS: See LOCATION .

REMOVE GLOVE COMPARTMENT DOOR SUB-ASSY (SEE REPLACEMENT )
REMOVE INSTRUMENT PANEL ORNAMENT (SEE REPLACEMENT )
REMOVE INSTRUMENT PANEL FINISH PANEL LOWER NO.2 (SEE REPLACEMENT )
REMOVE DISC PLAYER CHANGER W/BRACKET
1. Remove the 4 bolts.
2. Release the 2 claws and pull the disc player changer w/ bracket.
3. Disconnect the connectors and remove the disc player changer w/ bracket.

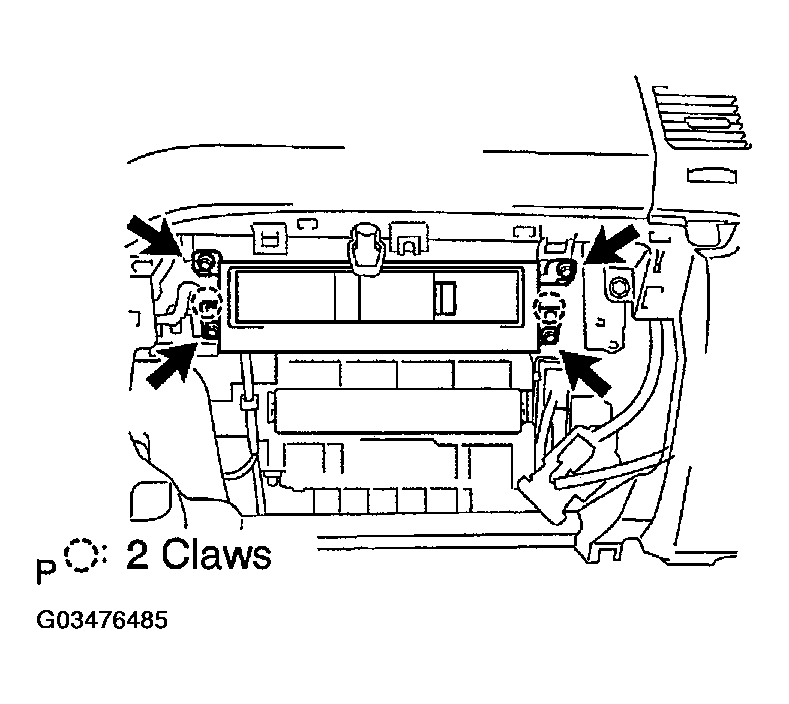

Fig 1: Disconnecting Connectors And Remove Disc Player Changer W/ Bracket
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE DISC PLAYER BRACKET
1. Remove the 2 screws and disc player bracket.
Fig 2: Removing Disc Player Bracket
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE DISC PLAYER BRACKET
1. Remove the 2 screws and disc player bracket.
Fig 3: Removing Screws And Disc Player Bracket
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL DISC PLAYER CHANGER W/BRACKET
1. Connect the connectors.
2. Engage the 2 claws and place the disc player changer w/ bracket temporarily on the body.
3. Install the 4 bolts and disc player changer w/ bracket.
NOTE: Install the bolts in the order shown in the illustration.

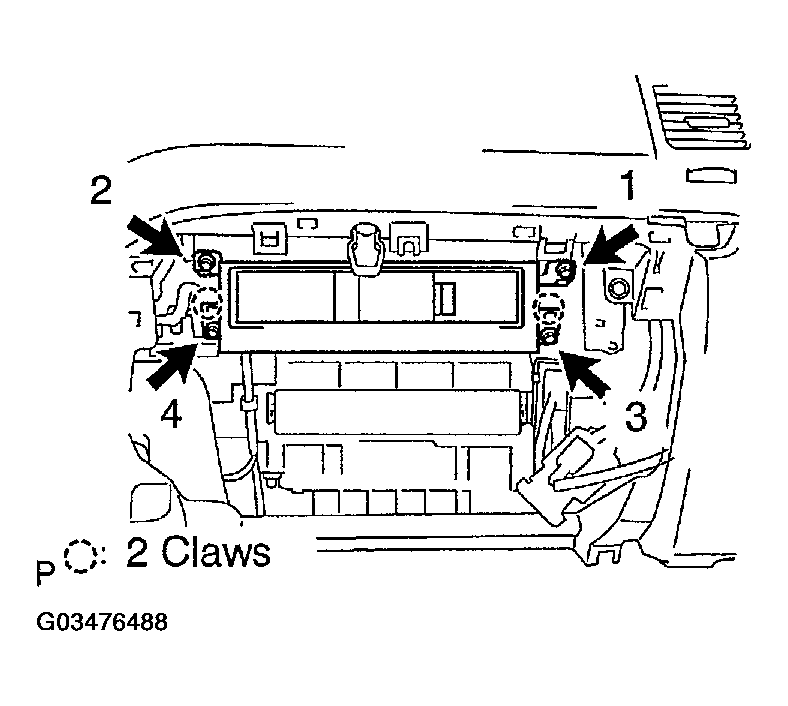

Fig 4: Installing Disc Player Changer W/Bracket
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
