Network Gateway Ecu Replacement

HINT:

COMPONENTS: See LOCATION .

1. REMOVE SHIFT LEVER KNOB SUB-ASSY
2. REMOVE SHIFT LEVER KNOB SUB-ASSY
3. REMOVE CONSOLE UPPER PANEL GARNISH NO.2 (SEE  REPLACEMENT  )
4. REMOVE CONSOLE UPPER PANEL GARNISH NO.1 (SEE  REPLACEMENT  )
5. REMOVE CONSOLE PANEL UPPER ASSY (SEE  REPLACEMENT  )
6. REMOVE INSTRUMENT PANEL GARNISH SUB-ASSY LH (SEE  REPLACEMENT  )
7. REMOVE INSTRUMENT PANEL GARNISH SUB-ASSY RH (SEE  REPLACEMENT  )
8. REMOVE CONSOLE REAR END PANEL SUB-ASSY (SEE  REPLACEMENT  )
9. REMOVE RR CONSOLE BOX ASSY (SEE  REPLACEMENT  )
10. REMOVE CONSOLE BOX INSERT FRONT NO.2 (SEE  REPLACEMENT  )
11. REMOVE CONSOLE BOX INSERT (SEE  REPLACEMENT  )
12. REMOVE CONSOLE UPPER PANEL GARNISH FRONT (SEE  REPLACEMENT  )
13. REMOVE CONSOLE BOX LOWER (SEE  REPLACEMENT  )
14. REMOVE NETWORK GATEWAY ECU
    1. Disconnect the connector.
    2. Remove the 2 screws and network gateway ECU.

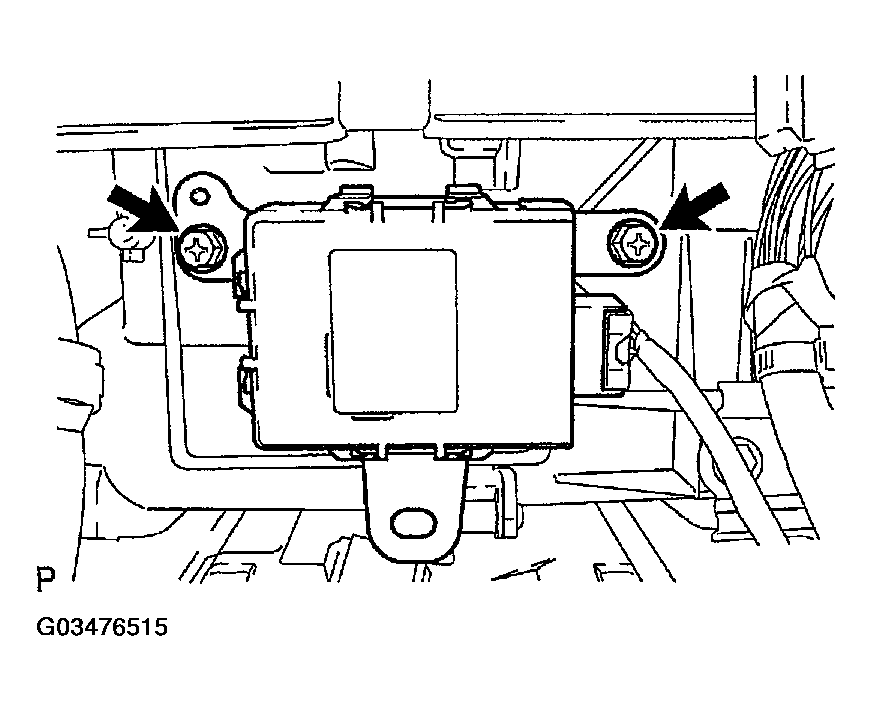

    Fig 1: Removing Network Gateway ECU

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
