Navigation Ecu

WARNING: This page is about a different car, the 2005 Lexus GS 430 and 2005 Lexus GS 300. However, it is still accessible from the selected car via links, so may be relevant.

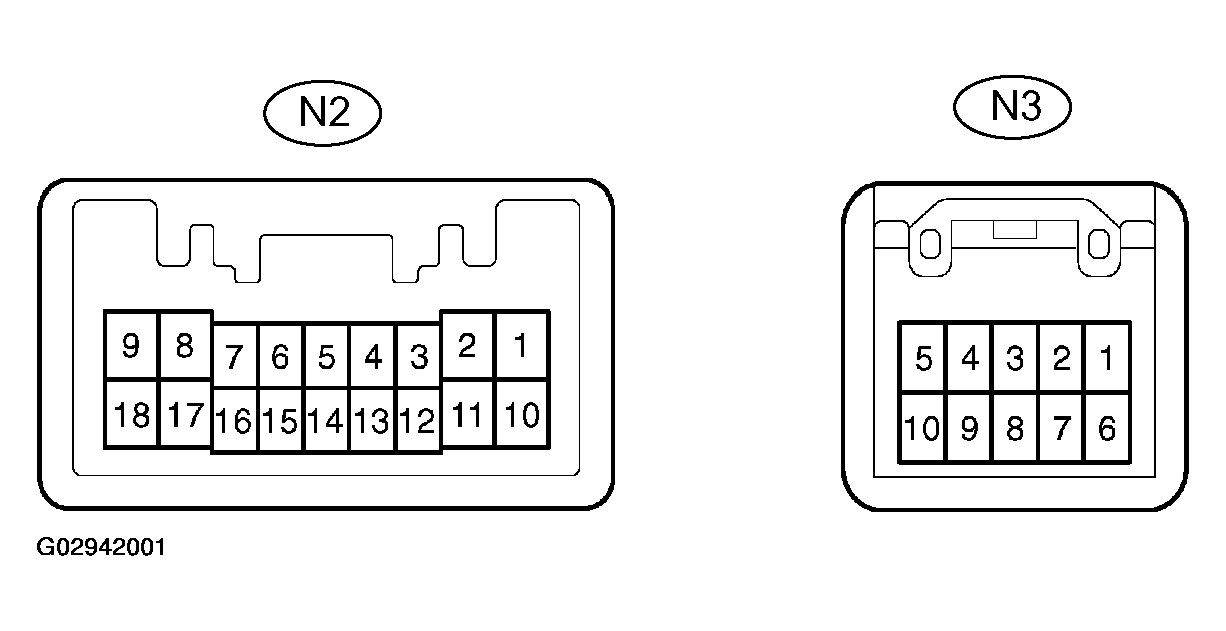

Fig 1: Identifying Navigation ECU Terminals
G02942001Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

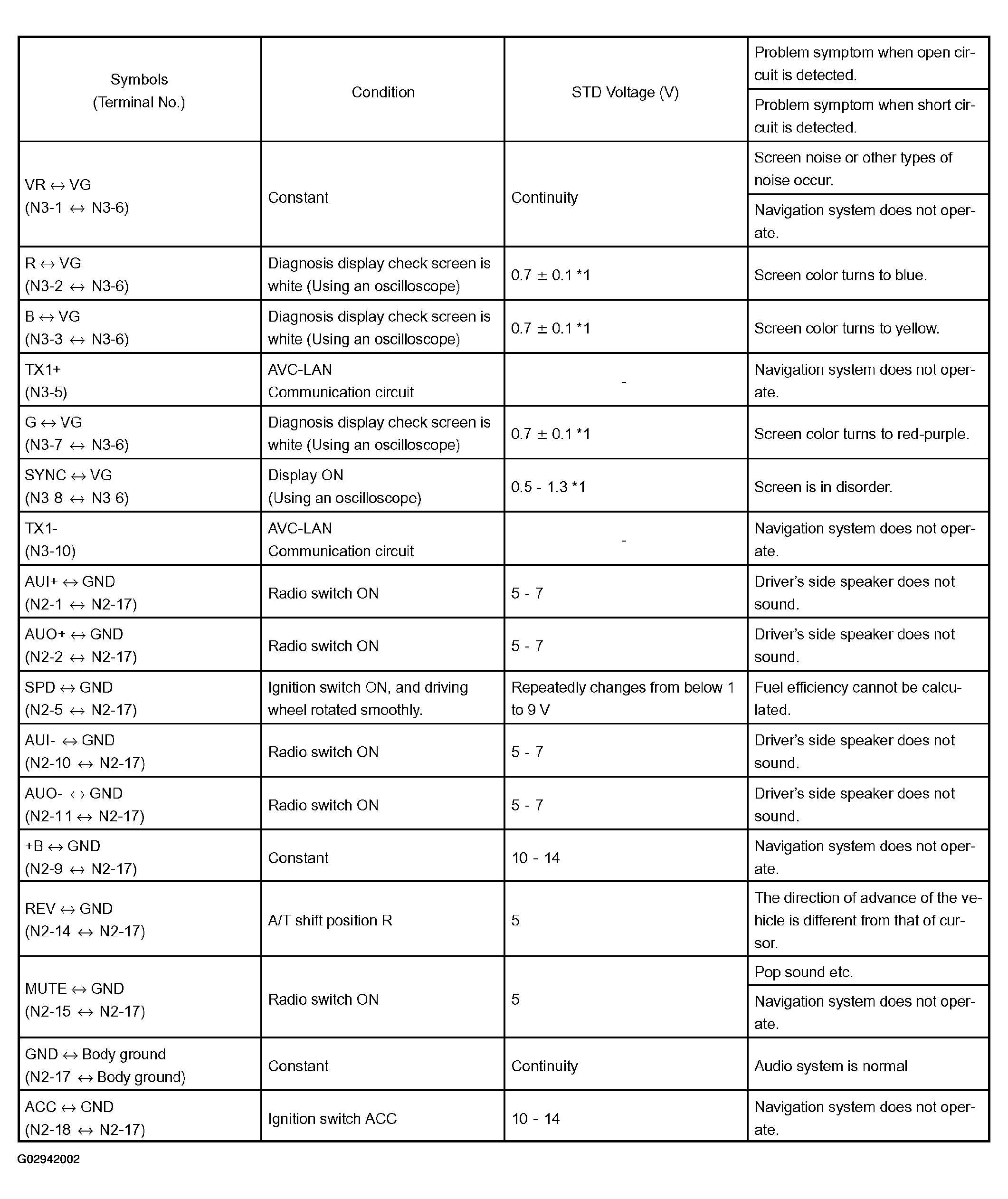

Fig 2: ECU Terminals Reference Table (Navigation ECU)
G02942002Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
