Circuit Description

The telephone switch assy (mayday switch) is provided on the roof console box assy and the system is activated by operating a button.

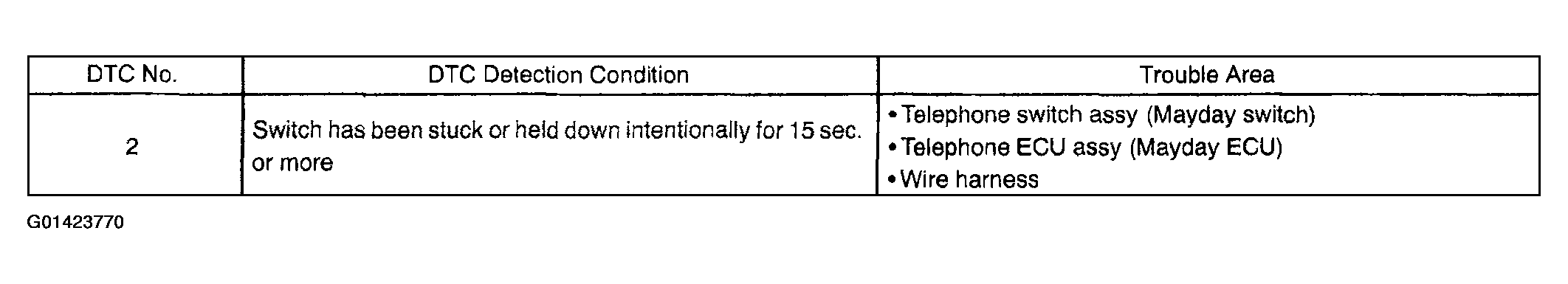

Fig 1: DTC Trouble Area Chart
G01423770Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
