Power Mirror Control System (W/Memory) - Diagnosis: Location

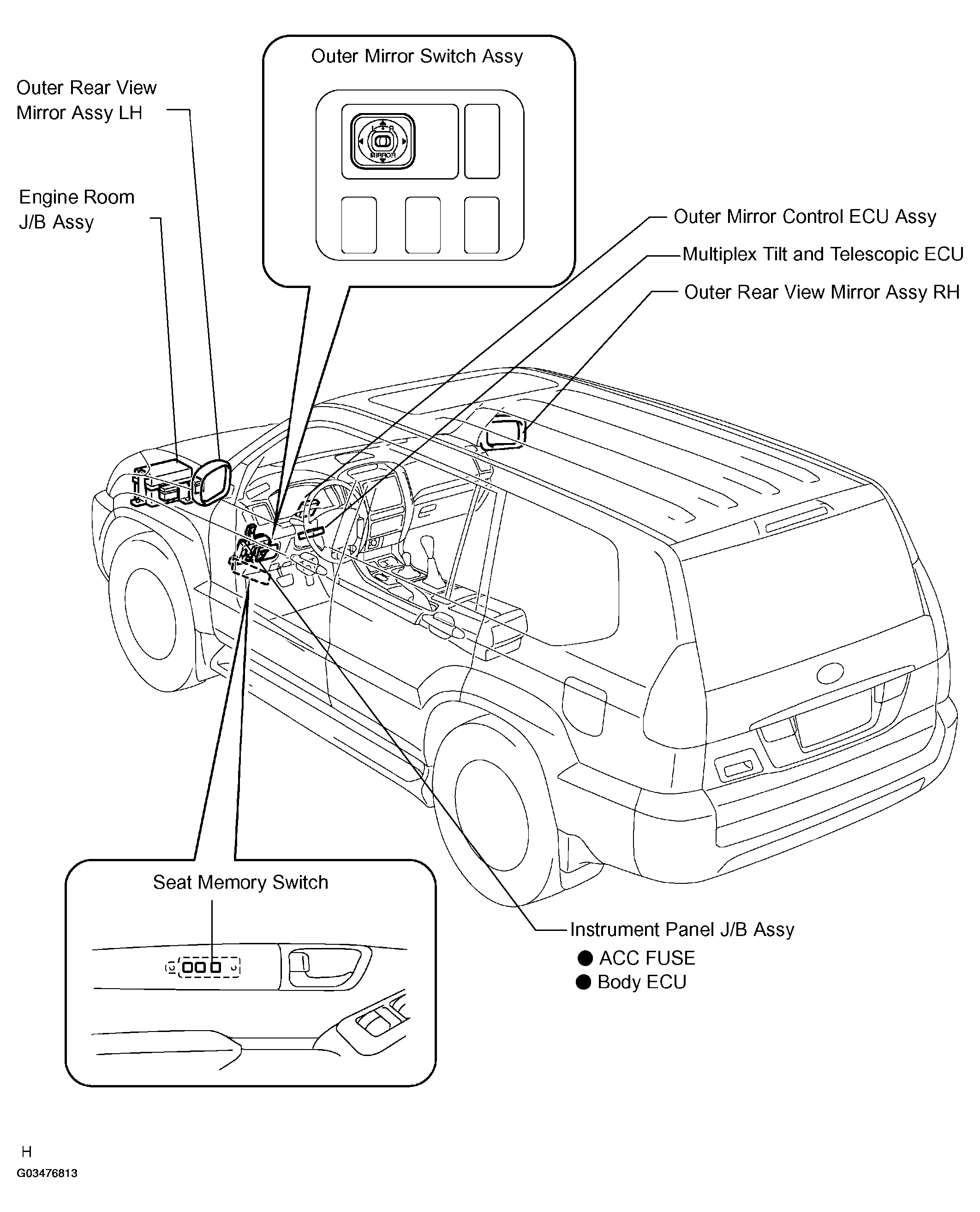

Fig 1: Power Mirror Control System (W/ Memory) Components Location
G03476813Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
