Engine Control System - Diagnosis
>>
Circuit Inspection
>>
DTC P0110: Intake Air Temperature Circuit, DTC P0112: Intake Air Temperature Circuit Low Input, DTC P0113: Intake Air Temperature Circuit High Input
>>
Typical Malfunction Thresholds
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Typical Malfunction Thresholds

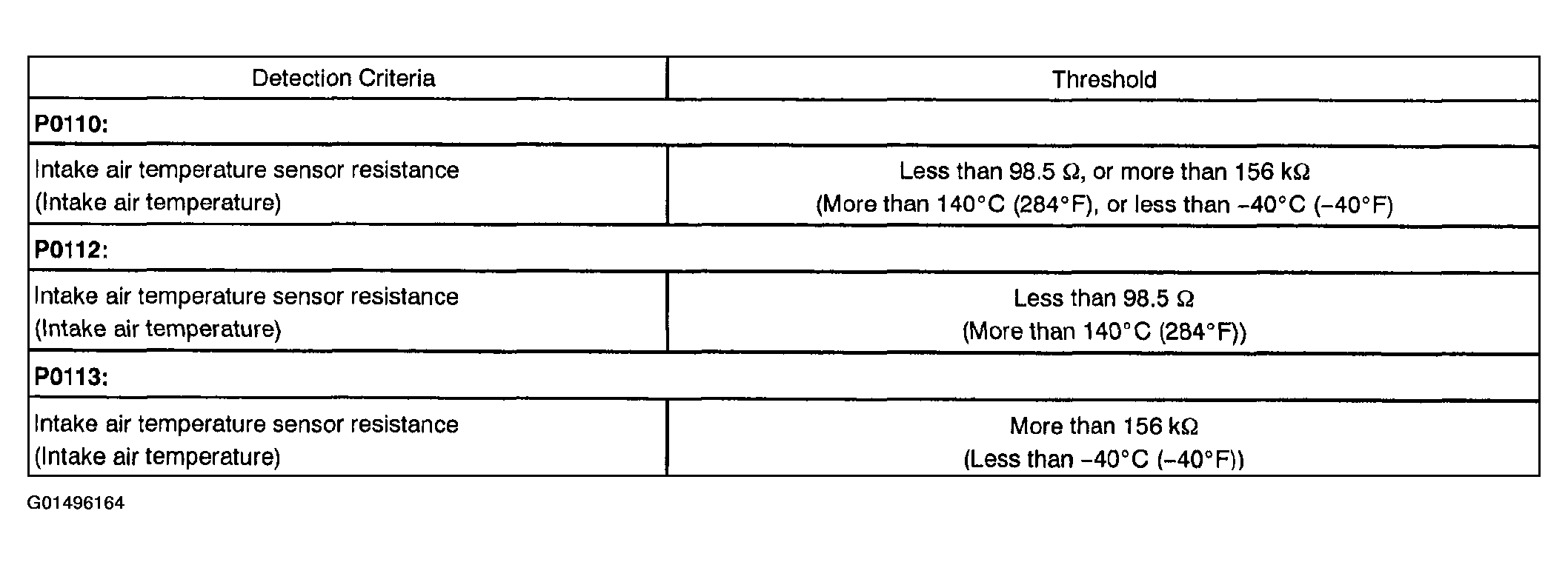

Fig 1: Typical Malfunction Thresholds Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
