Circuit Description

Refer to DTC P2120: THROTTLE/PEDAL POSITION SENSOR/SWITCH "D" CIRCUIT, DTC P2122: THROTTLE/PEDAL POSITION SENSOR/SWITCH "D" CIRCUIT, DTC P2123: THROTTLE/PEDAL POSITION SENSOR/SWITCH "D" Circuit High Input

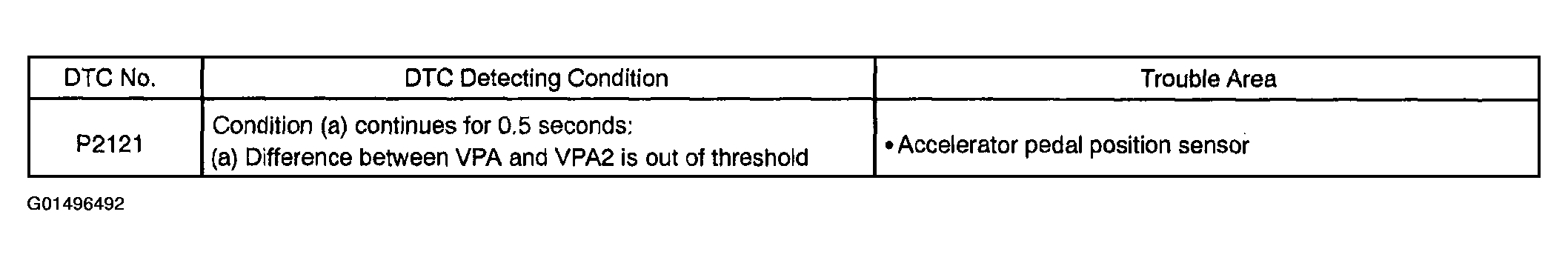

Fig 1: DTC P2121 Chart
G01496492Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
